Citroën C4 Cactus 2020 Fuse Box

Citroën C4 Cactus 2020 Fuse Box Info

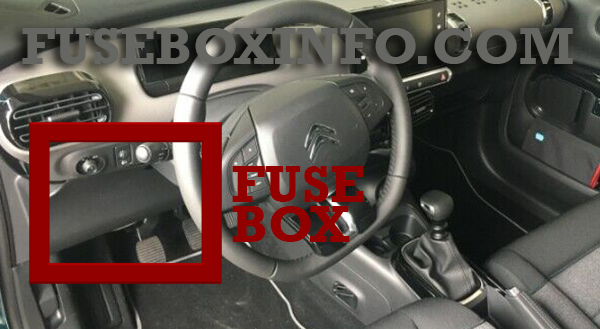

Passenger compartment fuse box location:

The 2 fuse boxes are located in the lower dashboard, below the steering wheel.

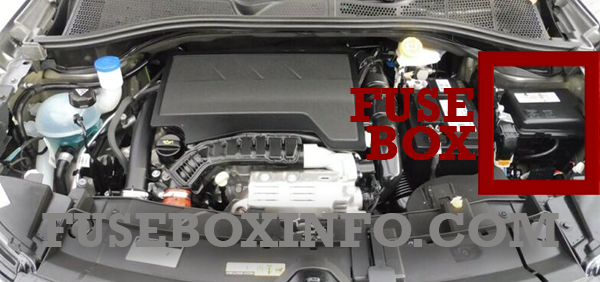

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box (Left):

Fuse/Relay N° Rating Functions
1 10A Door mirrors (electric adjustment)
4 15A Horn
6 20A Front and rear screenwash
8 20A Rear wiper
10 30A Locks
27 5A Alarm (preparation)
29 20A Touch screen
31 15A Radio
32 15A 12 volt socket
35 5A Headlamp height adjustment
36 5A Courtesy lamp, map reading lamps



Passenger compartment fuse box (Right):

Fuse/Relay N° Rating Functions
30 10A Heated rear screen
31 10A Heated mirrors
34 25A Trailer interface unit
35 20A Trailer interface unit
36 30A Front one-touch electric windows
37 30A Front heated seats



Engine compartment fuse box:

Fuse/Relay N° Rating Functions
1 40A Air conditioning
16 15A Front foglamps
18 10A Right-hand main beam headlamp
19 10A Left-hand main beam headlamp
29 40A Windscreen wipers
