Citroën C3 Aircross 2020 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

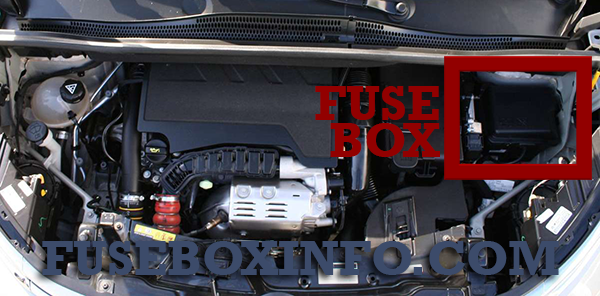

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Upper fuse box):
Fuse/Relay N° | Rating | Functions |
2 | 10A | Heated mirrors |
3 | 30A | Front one-touch electric windows |
4 | 5A | Automatic folding door mirrors |
5 | 30A | Rear one-touch electric windows |
6 | 25A | Front heated seats |
7 | 15A | Front electric windows |
8 | 20A | Audio amplifier |
10 | 25A | Panoramic roof |
12 | 20A | Sunroof |
Passenger compartment fuse box (Lower fuse box):
Fuse/Relay N° | Rating | Functions |
3 | 5A | Trailer power supply |
4 | 15A | Horn |
5 | 20A | Front and rear screenwash pump |
6 | 20A | Front and rear screenwash pump |
7 | 10A | Rear 12 V socket |
8 | 20A | Rear wiper |
10 | 30A | Locking/unlocking of the doors and fuel filler flap |
11 | 30A | Locking/unlocking of the doors and fuel filler flap |
14 | 5A | Alarm, telematic unit |
27 | 5A | Alarm (preparation) |
29 | 20A | Telematic audio system |
31 | 15A | Audio system (accessory) |
32 | 15A | Front 12 V socket |
Engine compartment fuse box:
Fuse/Relay N° | Rating | Functions |
15 | 10A | Front left foglamp |
16 | 10A | Front right foglamp |
18 | 10A | Right-hand main beam headlamp |
19 | 10A | Left-hand main beam headlamp |
29 | 40A | Windscreen wipers |
