Chevrolet Cavalier 2004 Fuse Box Info

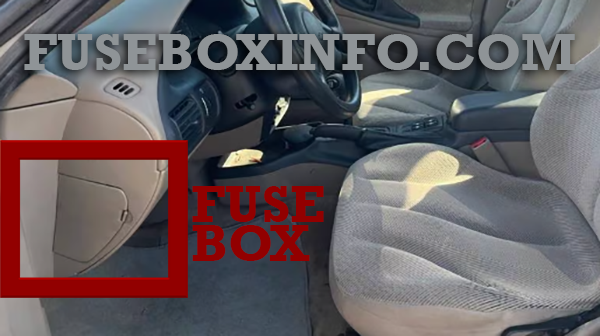

Passenger compartment fuse box location:
The instrument panel fuse box is located on the driver side edge of the instrument panel.

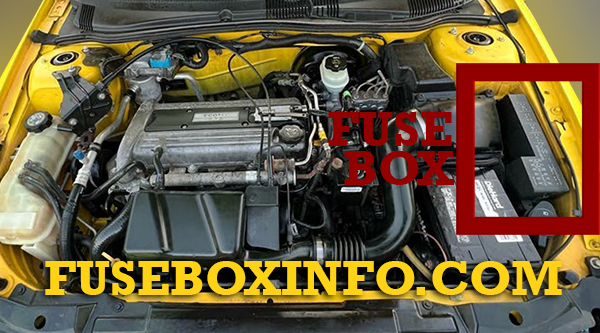

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
Fuse/Relay | Functions |
TURN-B/U | Turn Signals, Back-Up Lamps |
ERLS | Engine Relays |
BCM/CLU | Body Control Module, Instrument Panel Cluster |
PCM | Powertrain Control Module |
IGN MDL | Ignition Module |
F/P-INJ | Fuel Pump, Fuel Injectors |
AIR BG | Air Bag |
CRUISE | Cruise Control Module/Switch |
ABS | Anti-Lock Brake (Ignition) |
APO | Accessory Power Outlet |
RFA BATT | Remote Keyless Entry System |
MIR/DLC | Power Mirror/Diagnostic Link Connector |
LT HDLP | Left Headlamps |
RDO/INTLP | Radio, Interior Lamps, OnStar® |
RT HDLP | Right Headlamps |
CLSTR | Instrument Panel Cluster |
EXT LP | Exterior Lamps |
CIG | Cigarette Lighter |
FOG | Fog Lamps |
HORN | Horn |
Blank | Not Used |
Blank | Not Used |
STOP/HZD | Stop Lamps, Hazard Lamps |
Blank | Not Used |
Blank | Not Used |
RR DEFOG | Rear Window Defogger |
PWR ACC | Power Door Locks |
Blank | Not Used |
Blank | Not Used |
Blank | Not Used |
O2 HTR | Oxygen Sensor Heater |
HVAC | Climate Control System |
WIPER | Windshield Wiper |
BCM | Body Control Module |
AMPL | Audio Amplifier |
PWR WDO | Power Windows, Sunroof |
RELAY DRL | Daytime Running Lamps (Relay) |
Blank | Not Used |
Engine compartment fuse box:
Fuse/Relay | Functions |
IGN | Ignition Switch Circuits |
BATT 1 | Exterior Lamps, Power Outlet, Horn, Audio Amplifier |
BATT 2 | Rear Defogger, Starter, Power Locks, Stoplamps |
ABS | Anti-Lock Brake System |
COOLING FAN | Engine Cooling Fan |
PCM/HVAC | Powertrain Control Module, Heater and A/C Blower |
CRNK | Starter |
BLO | Heater and A/C Blower |
PCM | Powertrain Control Module |
A/C | A/C Compressor |
A/C | A/C Compressor |
FUEL PUMP | Fuel Pump |
CRNK | Starter |
COOLING/FAN | Engine Cooling Fan |
HEATER BLOWER | Heater and A/C Blower |
