Chevrolet Blazer EV 2027 Fuse Box Info

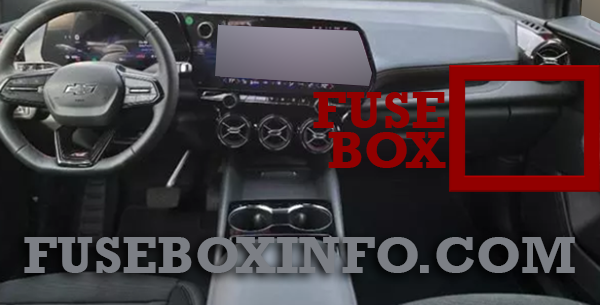

Passenger compartment fuse box location:
The instrument panel fuse box is on the passenger side of the instrument panel, between the glove box and the door.

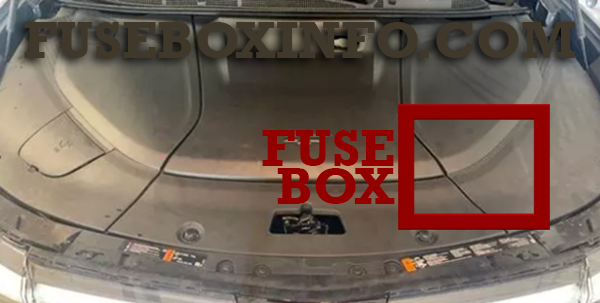

Engine compartment fuse box location:
Fuse Box Diagram | Layout

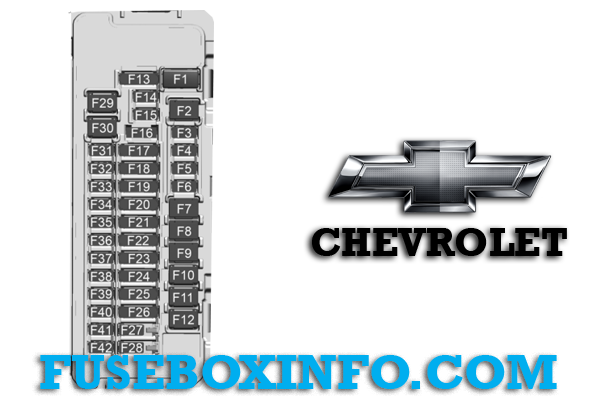

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | - |
| 2 | APO_ROW1_CNSL – Front Console Auxiliary Power Outlet |
| 3 | PLCE 1 – Police 1 |
| 4 | RR_APO_USB – Rear USB Auxiliary Power Outlet (Floor Console) |
| 5 | SCL_NOT_RUN – Steering Column Lock Not Run |
| 6 | RR_TPIM_2 – Rear Traction Power Inverter Module 2 |
| 7 | ACP3_MODULE – ADAS Compute Platform Module 3 |
| 8 | - |
| 9 | - |
| 10 | BCM 4 – Body Control Module 4 |
| 11 | - |
| 12 | - |
| 13 | MISC 3 / PLCE 2 MISCELLANEOUS 3 – Traction Inverter Power Module 1 & 2 Run Crank / VICM - Vehicle Integration Control Module Run Crank PLCE 2 – Police 2 |
| 14 | ISRVM – Inside Rearview Mirror |
| 15 | HEADLAMP_RT – Headlight Right |
| 16 | SWC – Steering Wheel Controls |
| 17 | FRT VENT STS – Vented Seats Front |
| 18 | VCD/A JACK 1 - VCD - Virtual Cockpit Display / JACK 1 Audio/Video Auxiliary Jack 1 |
| 19 | MISC 4 – Miscellaneous 4 Airbag Module Run/Crank Exterior Lighting Module Run/Crank Electronic Brake Control Module Run/Crank Reflective Light Auxiliary Display Run/Crank Headlights Switch Bank Run/Crank Headlights Left and Right Run/Crank |
| 20 | SCL/VICM – SCL – Steering Column Lock Assembly/ VICM – Vehicle Integration Control Module |
| 21 | BCM_1/EPBS_ESM – Body Control Module 1/Electronic Transmission Range Select Shifter Module/Electric Park Brake Switch |
| 22 | MISC 5 - Miscellaneous 5 ACP 2/FCM H/FCM L - ACP2- ADAS Compute Platform Module 2 / FCM H/FCM L- Front Camera Module | UGDO - Universal Garage Door Opener / WCM Wireless Charger Module |
| 23 | TAIL_LAMPS |
| 24 | PA SBZA/AOS - PA Park Assist / SBZA - Side Blind Zone Alert Module | AOS - Automatic Ocuppant Sensing Module Passenger |
| 25 | MISC 6 – Miscellaneous 6– Video Processing Module/Overhead Console Module/Virtual Key Module/ILSS/SD Card/Heated Seat Switch Rear Seats & Data Link Connector/Central Gateway Module/Vehicle Data Monitor Module |
| 26 | VCU_1/VCU_2 – Virtual Cockpit Unit 1 & 2 |
| 27 | BCM 3 – Body Control Module 3 |
| 28 | BCM 2 – Body Control Module 2 |
| 29 | AMPLIFIER |
| 30 | - |
| 31 | HVSL SW – High Voltage System Lockout Switch |
| 32 | HSWM – Heated Steering Wheel Module |
| 33 | AUX_JACK_2 – Audio/Video Auxiliary Jack/USB (Armrest) |
| 34 | ELM 2 – Exterior Lighting Module 2 |
| 35 | HEADLAMP_LT – Headlight Left |
| 36 | ACEC_MODULE – Air Conditioned Electric Compressor |
| 37 | IPD – Instrument Panel Display |
| 38 | LRR/SRR_SNSR – Long and Short Range Radars Sensors |
| 39 | HUD/TCP – HeadsUp Display/OnStar |
| 40 | ELM 1 – Exterior Lighting Module 1 |
| 41 | ELM 6 – Exterior Lighting Module 6 |
| 42 | - |

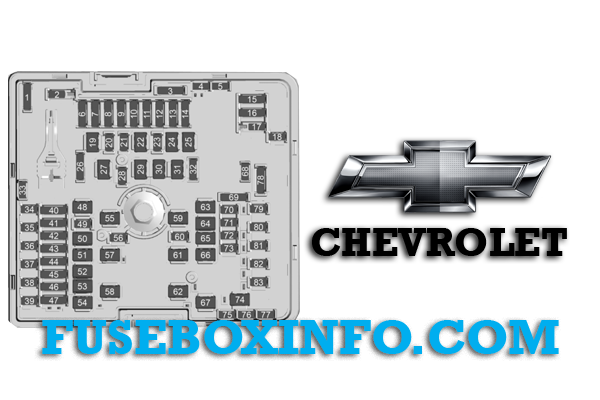

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | SPARE |
| 2 | - |
| 3 | SPARE |
| 4 | SPARE |
| 5 | - |
| 6 | MSM DRIVER – Memory Seat Module Driver Seat |
| 7 | MISC 1 – Primary Evaporator Expansion Valve Motor/Primary Chiller Expansion Valve Motor External Condenser Flow Valve Motor/Condensing Heater Flow Valve Motor |
| 8 | MCV/PLCM – Main Coolant Valve Motor/Power Line Communication Module |
| 9 | SPARE |
| 10 | SPARE |
| 11 | SPARE |
| 12 | OBCM 2 – On Board Charging Module 2 |
| 13 | PECP/ESSCP – Power Electronics Coolant Pump Motor/Energy Storage System Coolant Pump Motor |
| 14 | - |
| 15 | TRLR PRK LAMPS – Trailer Park Lights |
| 16 | - |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | CPDM – Charge Port Door Motor |
| 22 | - |
| 23 | FRONT TPIM – Front Traction Power Inverter Module 2 |
| 24 | - |
| 25 | - |
| 26 | SPARE |
| 27 | - |
| 28 | - |
| 29 | - |
| 30 | - |
| 31 | - |
| 32 | SPARE |
| 33 | SPARE |
| 34 | ELM 5 – Exterior Lighting Module 5 |
| 35 | ELM 4 – Exterior Lighting Module 4 |
| 36 | TPIM 3 – Traction Power Inverter Module 3 |
| 37 | REAR WIPER – Rear Window Wiper |
| 38 | ELM 7 – Exterior Lighting Module 7 |
| 39 | ELM 3 – Exterior Lighting Module 3 |
| 40 | SPARE |
| 41 | FRT DSP – Front Door Window Switches |
| 42 | MISCELLANEOUS 2 – Driver and Passenger Seat Switches (Position/Lumbar) Virtual Key Sensors Rain/Light/Humidity Sensors Driver Door Handle Switch |
| 43 | TPIM 1– Traction Power Inverter Module 1 |
| 44 | AEROSHUTTER |
| 45 | RFR MODULE – Remote Function Receiver Module |
| 46 | PFA MODULE – Pedestrian Friendly Alert Module |
| 47 | PARK EMBLEMS |
| 48 | PTM – Power Tailgate Module |
| 49 | - |
| 50 | MISC DOORS LT – Front and Rear Left Window Motors/Rear Left Door Switch Panels |
| 51 | SPARE |
| 52 | MISC DOORS RT – Front and Rear Right Window Motors/Rear Right Door Switch Panels |
| 53 | FRONT WIPERS |
| 54 | - |
| 55 | - |
| 56 | SPARE |
| 57 | EBCM 1 – Electronic Brake Control Module 1 |
| 58 | HVAC BLWR MTR – Heating, Ventilating, Air Conditioning Front Blower Motor |
| 59 | - |
| 60 | HORN |
| 61 | REAR DEFOGGER |
| 62 | - |
| 63 | SUNROOF |
| 64 | D MSM/DR ST SW – Driver Memory Seat Module/Driver Seat Switches |
| 65 | PASS POWER SEAT – Passenger Power Seat |
| 66 | COOL FAN MDL – Cooling Fan Module |
| 67 | WIPER DE-ICE |
| 68 | - |
| 69 | - |
| 70 | RELAY’S COIL |
| 71 | RR HTD STS 2 – Rear Heated Seats 2 |
| 72 | FRT HTD STS 1 – Front Heated Seats 1 |
| 73 | SPARE |
| 74 | SPARE |
| 75 | SPARE |
| 76 | SPARE |
| 77 | SPARE |
| 78 | TRLR ST/TRN LPS – Trailer Stop/Turn Lights (Left & Right) |
| 79 | REAR HTD STS 1– Rear Heated Seats 1 |
| 80 | FRT HTD STS 2– Front Heated Seats 2 |
| 81 | SPARE |
| 82 | FRT & RR WASH PUMP – Front & Rear Washer Pump |
| 83 | REAR WIPER |
