Chevrolet Equinox 2005 Fuse Box Info
Fuse box location:

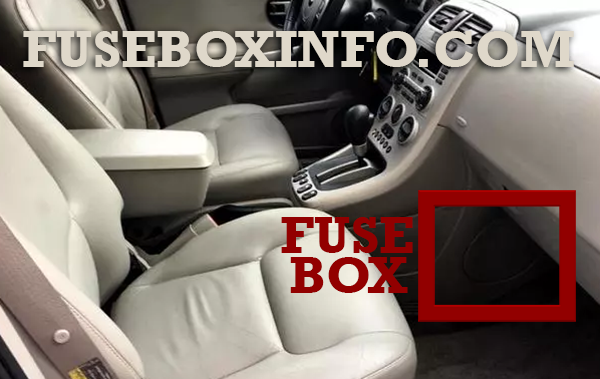

The instrument fuse box is located on the passenger’s side of the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Functions |
| LOCK/MIRROR | Door Lock, Power Mirror |
| CRUISE | Cruise Control System |
| EPS | Electric Power Steering |
| IGN 1 | Ignition System |
| PARK LAMP | Park Lamps |
| HTD SEATS | Heated Seats |
| LOCK/MIRROR | Door Lock, Power Mirror |
| PRNDL/PWR TRN | PRNDL/Powertrain |
| BCM | Body Control Module |
| BCM (IGN) | Body Control Module |
| AIR BAG | Air Bag System |
| BCM/ISRVM | Inside Rearview Mirror |
| TURN | Turn Signals |
| HVAC BLOWER | HVAC Control Head |
| HVAC | Air Conditioning |
| HZRD | Hazard Warning Flashers |
| RADIO | Radio |
| PARK | Parking Lamps |
| BCM/CLSTR | Instrument Panel Cluster |
| INT LTS/ ONSTAR® | Interior Lights/OnStar® |
| DR LCK | Taillamp Assemblies, Front Position Lamp Assemblies |
| HEAD LAMP | Headlamps |
| DR LCK | Door Locks Relay |
| PASS DR UNLOCK | Passenger Door Unlock Relay |
| DRV DR UNLCK | Driver Door Unlock Relay |
Engine compartment fuse box:
| Fuse/Relay Name | Functions |
| HTD SEATS | Heated Seats |
| PREM. AUD. | Premium Audio System |
| SUNROOF | Sunroof |
| CB POWER SEATS | Power Seats |
| HTD SEATS | Heated Seats |
| ABS PWR | Anti-Lock Brake System |
| PWR WDW | Power Windows |
| ETC | Enhanced Traction Control |
| RR WIPER | Rear Window Wiper |
| FRT WIPER | Front Window Wiper |
| A/C CLUTCH | Clutch |
| EMISS | Emissions |
| ENG IGN | Engine |
| CIGAR | Cigarette Lighter |
| LH HDLP | Left Headlamp |
| COOL FAN HI | Cooling Fan High |
| ECM/TCM | Body Control Module |
| AUX1 OUTLET | Accessory Power Outlet |
| FUSE PULLER | Fuse Puller |
| HVAC BLOWER | HVAC Blower Control |
| INJ | Ignition |
| PWR TRAIN | Powertrain |
| RH HDLP | Right Headlamp |
| HORN | Horn |
| BATT FEED | Battery |
| HTD SEATS | Heated Seats |
| FUEL PUMP | Fuel Pump |
| A/C DIODE | Diode |
| AUX 2/CARGO | Accessory Power Outlet 2, Cargo Outlet |
| BRAKE | Brake System |
| BACKUP | Back-Up Lamps |
| ABS | Anti-Lock Brake System |
| RR DEFOG | Rear Window Defogger |
| START | Ignition |
| ABS | Anti-Lock Brake System |
| FOG LP | Fog Lamps |
| COOL FAN LO | Cooling Fan Low |
| IGN | Ignition Switch |
| ENG MAIN | Engine Relay |
| RR WIPER | Rear Window Wiper Relay |
| FRT WIPER | Front Window Wiper Relay |
| PWR WDW | Power Windows Relay |
| COOL FAN HI | Cooling Fan High Relay |
| WIPER SYSTEM | Wiper System Relay |
| HORN | Horn Relay |
| DRL | Daytime Running Lamps Relay |
| FUEL PUMP | Fuel Pump Relay |
| A/C CLUTCH | Clutch Relay |
| STARTER RELAY | Starter Relay |
| REAR DEFOG | Rear Window Defogger Relay |
| COOL FAN LO | Cooling Fan Low Relay |
