Toyota Yaris 2010 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side.

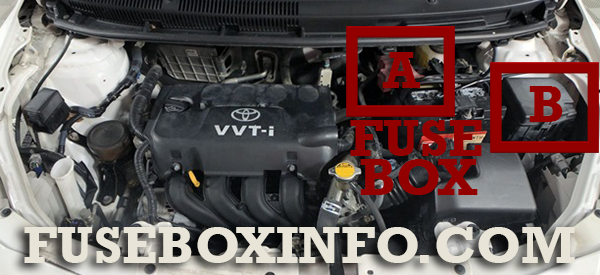

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Fuse box A):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. ACC2 | 7.5A | Shift lock system |
| 2. DEF | 40A | Rear window defogger |
| 3. POWER | 30A | Power windows |
Passenger compartment fuse box (Fuse box B):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. TAIL | 10A | Side marker lights, parking lights, tail lights, license plate lights, multiport fuel injection system/sequential multiport fuel injection system |
| 2. PANEL 1 | 7.5A | Illuminations, instrument panel light control, meter and gauge |
| 3. A/C | 7.5A | Rear window defogger, air conditioning system |
| 4. D DOOR | 20A | Power windows |
| 5. RL DOOR | 20A | Rear passenger’s power window (left side) |
| 6. RR DOOR | 20A | Rear passenger’s power window (right side) |
| 7. CIG | 15A | Power outlet |
| 8. ACC | 7.5A | Door lock system, outside rear view mirrors, audio system |
| 9. ID/UP/MIR HTR | 10A | Multiport fuel injection system/ sequential multiport fuel injection system, outside rear view mirror control, outside rear view mirror heaters |
| 10. IGN | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, engine immobilizer system, SRS airbag system, front passenger occupant classification system |
| 11. MET | 7.5A | Meter and gauge |
| 12. WIP | 25A | Windshield wiper and washer |
| 13. RR WIP | 15A | No circuit |
| 14. WSH | 15A | Windshield wiper and washer |
| 15. ECU-IG | 10A | Daytime running light system, antilock brake system, electric power steering system, power windows, door lock system, vehicle stability control system, electric cooling fan, meter and gauge |
| 16. GAUGE | 10A | Charging system, turn signal lights, emergency flashers, back-up lights, instrument panel light control, shift lock system, rear window defogger, air conditioning system, automatic transmission system |
| 17. OBD2 | 7.5A | On-board diagnosis system |
| 18. STOP | 10A | Stop lights, high mounted stoplight, multiport fuel injection system/sequential multiport fuel injection system, shift lock system, anti-lock brake system |
| 19. D/L | 25A | Door lock system |
| 20. FR FOG | 15A | Front fog lights |
| 21. AM1 | 25A | Multiport fuel injection system/ sequential multiport fuel injection system |
Engine compartment fuse box (Fuse box A):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. ALT | 120A | Charging system, HTR SUB2, EPS, ABS1/VSC1, HTR, ABS2/ VSC2, HTR SUB1,RDI, DEF, FR FOG, OBD2, D/L, POWER, RR DOOR, RL DOOR, STOP and AM1 |
| 2. MAIN | 60A | EFI, HORN, AM2, ALT-S, DOME, ST, ECU-B, ETCS, HAZ, H-LP LH/ H-LP LO LH and H-LP RH/H-LP LO RH fuses |
Engine compartment fuse box (Fuse box B):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. AM2 | 15A | Starting system, multiport fuel injection system/sequential multiport fuel injection system |
| 2. HORN | 10A | Horn |
| 3. EFI | 20A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 4 SPARE | 30A | Spare fuse |
| 5 SPARE | 15A | Spare fuse |
| 6 SPARE | 10A | Spare fuse |
| 7. FR DEF | 20A | No circuit |
| 8. ABS2/VSC2 | 30A | Anti-lock brake system, vehicle stability control system |
| 9. H-LP MAIN | 30A | H-LP LH/H-LP LO LH fuse |
| 10. ST | 30A | Starting system |
| 11. S-LOCK | 20A | No circuit |
| 12. DOME | 15A | Interior light, personal lights, theft deterrent system, audio system, wireless remote control system |
| 13. ECU-B | 7.5A | Daytime running light system, front passenger occupant classification system, power windows, door lock system, theft deterrent system, meter and gauge, traction control system, vehicle stability control system |
| 14. ALT-S | 7.5A | Charging system |
| 15. ETCS | 10A | Multiport fuel injection system/ sequential multiport fuel injection system, electronic throttle control system |
| 16. HAZ | 10A | Turn signal lights, emergency flashers |
| 17. H-LP RH/H-LP LO RH | 10A | Right-hand headlight |
| 18. H-LP LH/H-LP LO LH | 10A | Left-hand headlight |
| 19. EFI2 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 20. HTR SUB2 | 40A | Air conditioning system |
| 21. EPS | 50A | Electric power steering system |
| 22. ABS1/VSC1 | 50A | Anti-lock brake system, vehicle stability control system |
| 23. HTR | 40A | Air conditioning system |
| 24. RDI | 30A | Electric cooling fan |
| 25. HTR SUB1 | 30A | Air conditioning system |
| 26. H-LP CLN/PWR HTR | 30A | No circuit |
| 27. AMT | 50A | No circuit |
