Toyota RAV4 2007 Fuse Box Info
Fuse box location:
The fuse box is under the instrument panel.
Engine compartment fuse box:
The fuse box type A (passenger’s side), and type B (driver’s side).
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. S−HTR | 15A | Seat heaters |
| 2. WIP | 25A | Windshield wipers |
| 3. RR WIP | 15A | Rear window wiper |
| 4. WSH | 15A | Windshield washer, rear window washer |
| 5. ECU−IG1 | 10A | Electric cooling fan, anti−lock brake system, traction control system, vehicle stability control system, “AUTO LSD” system, downhill assist control system, hill−start assist control system, active torque control 4WD system, tire pressure monitor system, automatic transmission shift lock system, air conditioning system, main body ECU, electric moon roof, stop/tail lights, windshield wiper de−icer, electric power steering system, clock, AC inverter |
| 6. ECU−IG2 | 10A | Air conditioning system, rear window defogger |
| 7. OBD | 7.5A | On−board diagnosis system |
| 8. STOP | 10A | Stop/tail lights, high mounted stoplight, automatic transmission shift lock system, multiport fuel injection system/sequential multiport fuel injection system, anti−lock brake system, traction control system, vehicle stability control system, “AUTO LSD” system, downhill assist control system, hill−start assist control system |
| 9. DOOR | 25A | Main body ECU, power door lock system |
| 10. ACC−B | 25A | “ACC”, “CIG” fuses |
| 11. 4WD | 7.5A | Active torque control 4WD system |
| 12. FR FOG | 15A | Front fog lights |
| 13. AM1 | 7.5A | Starting system |
| 14. TAIL | 10A | Tail lights, parking lights, license plate light, front fog lights, rear side marker lights |
| 15. PANEL | 7.5A | Clock, instrument panel lights, audio system |
| 16. GAUGE1 | 10A | Buck−up lights, charging system |
| 17. D FR DOOR | 20A | Power window (front doors) |
| 18. RL DOOR | 20A | Power window (rear left door) |
| 19. RR DOOR | 20A | Power window (rear right door) |
| 20. S/ROOF | 25A | Electric moon roof |
| 21. CIG | 15A | No circuit |
| 22. ACC | 7.5A | Audio system, power outlets, power rear view mirror control, automatic transmission shift lock system, main body ECU, clock, rear seat entertainment system |
| 23. MIR HTR | 10A | Outside rear view mirror heaters |
| 24. PWR OUTLET | 15A | Power outlets |
| 25. RR FOG | 10A | No circuit |
| 26. IGN | 7.5A | SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, front passenger occupant classification system, starting system |
| 27. GAUGE2 | 7.5A | Meters and gauges |
| 28. DEF | 30A | Rear window defogger, “MIR HTR” fuses |
| 29. P/SEAT | 30A | Power seat |
| 30. POWER | 30A | Power windows |

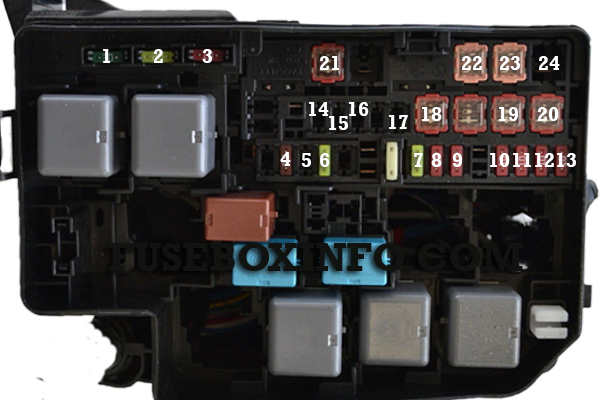

Engine compartment fuse box type A (passenger’s side):
| Fuse | Rating | Functions |
| 1. SPARE | 30A | Spare fuse |
| 2. SPARE | 20A | Spare fuse |
| 3. SPARE | 10A | Spare fuse |
| 4. ECU−B2 | 7.5A | Air conditioning system, power windows |
| 5. RSE | 7.5A | Rear seat entertainment system |
| 6. STR LOCK | 20A | No circuit |
| 7. RAD NO.1 | 20A | Audio system |
| 8. ECU−B | 10A | Wireless remote control system, electric power steering system, main body ECU, power door lock, front passenger occupant classification system, clock, audio system, meters and gauges |
| 9. DOME | 10A | Ignition switch light, interior light, vanity lights, luggage compartment light, front personal lights, foot lights |
| 10. HEAD LH | 10A | Left−hand headlight (high beam) |
| 11. HEAD RH | 10A | Right−hand headlight (high beam) |
| 12. HEAD LL | 10A | Left−hand headlight (low beam |
| 13. HEAD RL | 10A | Right−hand headlight (low beam) |
| 14. AC INV | 15A | AC inverter |
| 15. TOWING | 30A | No circuit |
| 16. STV HTR | 25A | No circuit |
| 17. DEICER | 20A | Windshield wiper deicer |
| 18. HTR | 50A | Air conditioning system |
| 19. PTC2 | 50A | No circuit |
| 20. PTC1 | 50A | No circuit |
| 21. HEAD MAIN | 50A | “HEAD LL”, “HEAD RL”, “HEAD LH”, “HEAD RH” fuses |
| 22. RDI | 30A (without towing package) or FAN2 50A (with towing package | Electric cooling fan |
| 23. CDS | 30A (without towing package) or FAN1 50A (with towing package | Electric cooling fan |
| 24. H−LP CLN | 30A | No circuit |

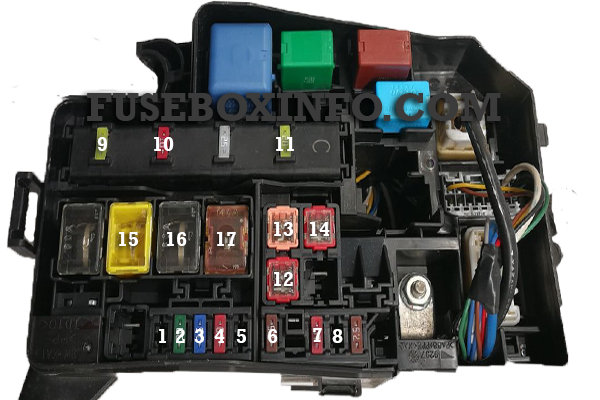

Engine compartment fuse box type B (driver’s side):
| Fuse | Rating | Functions |
| 1. AMP | 30A | Audio system |
| 2. AM2 | 30A | Starting system |
| 3. IG2 | 15A | Starting system, multiport fuel injection system/sequential multiport fuel injection system |
| 4. HAZ | 10A | Emergency flashers |
| 5. ETCS | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 6. AM2−2 | 7.5A | No circuit |
| 7. EFI NO.1 | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 8. EFI NO.2 | 10A | Multiport fuel injection system/sequential multiport fuel injection system |
| 9. EFI MAIN | 20A | Multiport fuel injection system/sequential multiport fuel injection system, “EFI NO.1”, “EFI NO.2” fuses |
| 10. HORN | 10A | Horn |
| 11. A/F | 20A | (3.5 L V6 [2GR−FE] engine only): A/F sensor |
| 12. P/I | 50A | “EFI MAIN”, “HORN”, “A/F” fuses |
| 13. ABS2 | 30A | Anti−lock brake system, traction control system, vehicle stability control system, “AUTO LSD” system, downhill assist control system, hill−start assist control system |
| 14. ABS1 | 50A | Anti−lock brake system, traction control system, vehicle stability control system, “AUTO LSD” system, downhill assist control system, hill−start assist control system |
| 15. EMPS | 60A | Electric power steering system |
| 16. MAIN | 80A | “HEAD MAIN”, “ECU−B2”, “RSE” fuses |
| 17. ALT | 120A (without towing package) or 140A (with towing package) | “ABS 1”, “ABS 2”, “RDI”, “CDS”, “FAN1”, “FAN2”, “AC INV”, “TOWING”, “HTR”, “DEICER” fuses |
