Toyota RAV4 2010 Fuse Box Info
Fuse box location:
The fuse box is under the instrument panel.
Engine compartment fuse box:
The fuse box type A (passenger’s side), and type B (driver’s side).
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse | Rating | Functions |
| 1. TAIL | 10A | Parking lights, tail lights, license plate light, front fog lights, rear side marker lights |
| 2. PANEL | 7.5A | Clock, instrument panel lights, audio system |
| 3. GAUGE 1 | 10A | Back-up lights, charging system |
| 4. D FR DOOR | 20A | Power windows (front doors) |
| 5. RL DOOR | 20A | Power windows |
| 6. RR DOOR | 20A | Power windows |
| 7. S/ROOF | 25A | Electric moon roof |
| 8. CIG | 15A | Power outlet |
| 9. ACC | 7.5A | Audio system, power outlets, power rear view mirror control, automatic transmission shift lock system, main body ECU, clock, smart key system |
| 10. MIR HTR | 10A | Outside rear view mirror defoggers |
| 11. PWR OUTLET | 15A | Power outlet |
| 12. RR FOG | 10A | No circuit |
| 13. IGN | 7.5A | Multiport fuel injection system/ sequential multiport fuel injection system, steering lock system, front passenger occupant classification system, smart key system, SRS airbag system |
| 14. GAUGE 2 | 7.5A | Gauges and meters |
| 15. S-HTR | 15A | Seat heaters |
| 16. FR WIP | 25A | Windshield wipers |
| 17. RR WIP | 15A | Rear window wiper |
| 18. WSH | 15A | Windshield washer, rear window washer |
| 19. ECU IG 1 | 10A | Electric cooling fan, ABS, TRAC, Enhanced VSC, AUTO LSD function, downhill assist control system, hill-start assist control system, active torque control 4WD system, automatic transmission shift lock system, air conditioning system, main body ECU, electric moon roof, stop/tail lights, electric power steering system, clock, AC inverter, auto anti-glare inside rear view mirror |
| 20. ECU IG 2 | 10A | Air conditioning system, rear window defogger, emergency flashers |
| 21. OBD | 7.5A | On-board diagnosis system |
| 22. STOP | 10A | Stop/tail lights, high mounted stoplight, automatic transmission shift lock system, multiport fuel injection system/sequential multiport fuel injection system, ABS, TRAC, Enhanced VSC, AUTO LSD system, downhill assist control system, hill-start assist control system |
| 23. DOOR | 25A | Main body ECU, power door lock system |
| 24. ACC-B | 25A | ACC, CIG, fuses |
| 25. 4WD | 7.5A | Active torque control 4WD system |
| 26. FR FOG | 15A | Front fog lights |
| 27. AM1* | 7.5A | Starting system |
| 28. DEF | 30A | Rear window defogger, MIR HTR fuse |
| 29. P/SEAT | 30A | Power seat |
| 30. POWER | 30A | Power windows |
*: Vehicles without smart key system

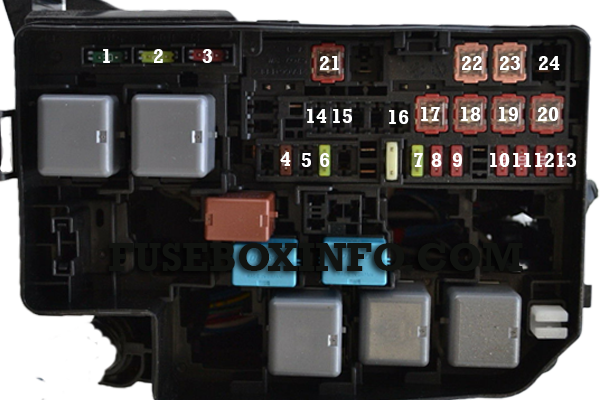

Engine compartment fuse box type A (passenger’s side):
| Fuse | Rating | Functions |
| 1. SPARE | 30A | Spare fuse |
| 2. SPARE | 20A | Spare fuse |
| 3. SPARE | 10A | Spare fuse |
| 4. ECU−B2 | 7.5A | Air conditioning system, power windows, smart key system |
| 5. ALT-S | 7.5A | Charging system |
| 6. STR LOCK | 20A | Smart key system |
| 7. RAD NO.1 | 20A | Audio system |
| 8. ECU−B | 10A | Gauges and meters, clock, main body ECU, wireless remote control, smart key system, audio system, front passenger occupant classification system, ABS, TRAC, Enhanced VSC, AUTO LSD, downhill assist control system, hill-start assist control system, Active torque control 4WD system |
| 9. DOME | 10A | Vanity lights, personal/interior lights, interior light, luggage compartment light, engine switch light, foot lights |
| 10. H-LP LH | 10A | Left−hand headlight (high beam) |
| 11. H-LP RH | 10A | Right−hand headlight (high beam) |
| 12. H-LP LL | 10A | Left−hand headlight (low beam |
| 13. H-LP RL | 10A | Right−hand headlight (low beam) |
| 14. AC INV | 15A | AC inverter |
| 15. TOWING*1 | 30A | No circuit |
| 16. DEICER | 20A | Windshield wiper deicer |
| 17. HTR | 50A | Air conditioning system |
| 18. PTC NO.3 | 50A | No circuit |
| 19. PTC NO.2 | 50A | No circuit |
| 20. PTC NO.1 | 50A | No circuit |
| 21. HEAD MAIN | 50A | H-LP LH, H-LP RH, H-LP LL, H-LP RL fuses |
|
22. RDI*2 22. FAN 2*1 |
30A 50A |
Electric cooling fan |
|
23. CDS*2 23. FAN 1*3 |
30A 50A |
Electric cooling fan |
| 24. H-LP CLN | 30A | No circuit |
* 1: Vehicles with towing package
* 2: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
* 3: Vehicles with 3.5 L V6 (2GR-FE) engine

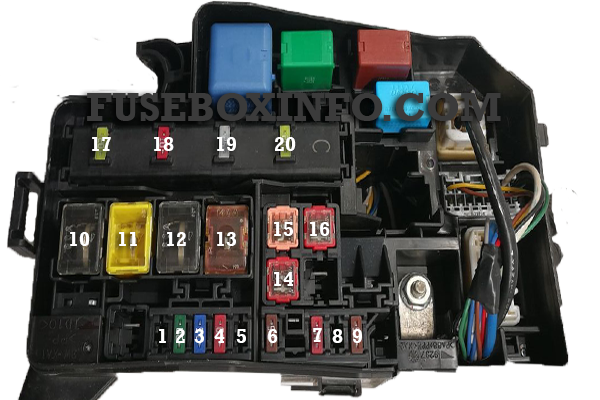

Engine compartment fuse box type B (driver’s side):
| Fuse | Rating | Functions |
| 1. AMP | 30A | Audio system |
| 2. AM2 | 30A | Starting system |
| 3. IG2 | 15A | Starting system, multiport fuel injection system/sequential multiport fuel injection system |
| 4. HAZ | 10A | Emergency flashers |
| 5. ETCS | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 6. AM2−2 | 7.5A | Starting system |
| 7. EFI NO.1 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 8. EFI NO.2 | 10A | Multiport fuel injection system/ sequential multiport fuel injection system |
| 9. EFI NO.3 | 7.5A | No circuit |
| 10. GROW | 80A | No circuit |
| 11. EPMS | 60A | Electric power steering system |
| 12. MAIN | 80A | HEAD MAIN, ECU-B2, ALT-S, STR LOCK, DOME, ECU-B, RAD NO.1 fuses |
| 13. ALT |
120 A*1 140 A*2 |
ABS 1, ABS 2, RDI*3, CDS*3, FAN 1*4, AC INV, TOWING, HTR, DEICER fuses ABS 1, ABS 2, FAN 1, FAN 2, AC INV, TOWING, HTR, DEICER fuses |
| 14. P/I | 50A | EFI MAIN, HORN, A/F, fuses |
| 15. ABS2 | 30A | ABS, TRAC, Enhanced VSC, AUTO LSD function, downhill assist control system, hill-start assist control system |
| 16. ABS1 | 50A | ABS, TRAC, Enhanced VSC, AUTO LSD function, downhill assist control system, hill-start assist control system |
| 17. EFI MAIN | 20A | Multiport fuel injection system/ sequential multiport fuel injection system, EFI NO.1, EFI NO.2, fuses |
| 18. HORN | 10A | Horn |
| 19. EDU | 25A | No circuit |
| 20. A/F | 20A | A/F sensor, fuel pump*3 |
* 1: Vehicles without towing package
* 2: Vehicles with towing package
* 3: Vehicles with 2.5 L 4-cylinder (2AR-FE) engine
* 4: Vehicles with 3.5 L V6 (2GR-FE) engine
