Toyota Yaris 2005 Fuse Box Info
Passenger compartment fuse box location:

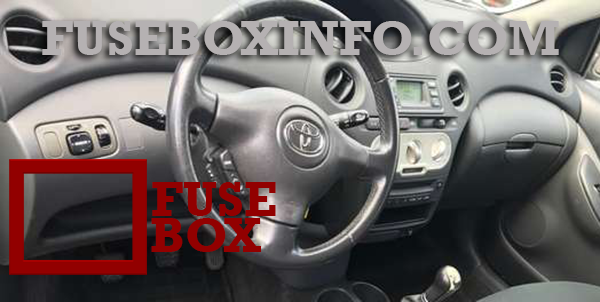

The fuse box is located under the instrument panel behind the cover on the driver’s side.

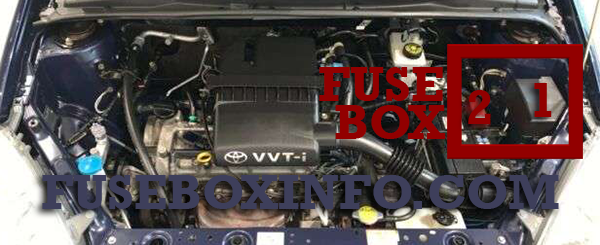

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° and Name | Rating | Functions |
| 11. GAUGE | 10A | Back−up lights, charging system, air conditioning system, gauges of meters |
| 12. ACC | 15A | Cigarette lighter |
| 13. A.C | 7.5A | Air conditioning system |
| 14. WIPER | 20A | Windshield wipers and washer, rear window wipers and washer |
| 15. ECU−IG | 7.5A | Anti−lock brake system, electric cooling fan |
| 16. D/L | 25A | Power door lock system |
| 17. ECU−B | 7.5A | SRS airbag system |
| 18. OBD | 7.5A | On−board diagnosis system |
| 19. TAIL | 10A | Tail lights, parking lights, license plate lights, illuminations |
| 20. FOG | 15A | No circuit |
| 21. HAZ | 10A | Turn signal lights, emergency flashers |
| 22. STOP | 10A | Stop lights, high mounted stop light, anti−lock brake system, shift lock system, multiport fuel injection system/sequential multiport fuel injection system |
| 27. AM1 | 40A | “ACC”, “GAUGE”, “WIPER”, and “ECU−IG” fuses |
| 28. POWER | 30A | No circuit |
| 29. HTR | 40A | Air conditioning system |
| 30. DEF | 30A | Rear window defogger system |
Engine compartment fuse box (Fuse box 1):
| Fuse/Relay N° and Name | Rating | Functions |
| 1. P/POINT | 15A | No circuit |
| 2. H−LP RH/H−LP LO RH | 10A | Right− hand headlight |
| 3. H−LP LH/H−LP LO LH | 10A | Left− hand headlight |
| 4. ST | 30A | Starter system |
| 5. AM2 | 15A | Starter system, SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, discharge warning system |
| 6. HORN | 15A | Horn |
| 7. EFI | 15A | Multiport fuel injection system/sequential multiport fuel injection system |
| 8. DOME | 15A | Interior light, gauges of meters |
| 9. SPARE | 15A | Spare |
| 10. SPARE | 20A | Spare |
| 23. HTR SUB2 | 50A | No circuit |
| 24. HTR SUB1 | 50A | Air conditioning system |
| 25. RDI | 30A | Electric cooling fan |
| 26. CL−ACT2 | 30A | No circuit |
Engine compartment fuse box (Fuse box 2):
| Fuse/Relay N° and Name | Rating | Functions |
| 31. MAIN | 60A | “EFI”, “DOME”, “HORN”, “ST”, “AM2”, “H−LP LH”, “H−LP RH”, “H−LP LH (HI)”, “H−LP RH (HI)”, “H−LP LH (LO)” and “H−LP RH (LO)” fuse |
| 32. CL−ACT1 | 60A | No circuit |
| 33. ALT | 120A | “ECU−B”, “TAIL”, “D/L”, “OBD”, “A.C”, “HTR”, “POWER”, “STOP” and “DEF” fuses |
| 34. ABS | 60A | Anti−lock brake system |
