Volvo XC40 Recharge Plug-in Hybrid 2021 Fuse Box Info

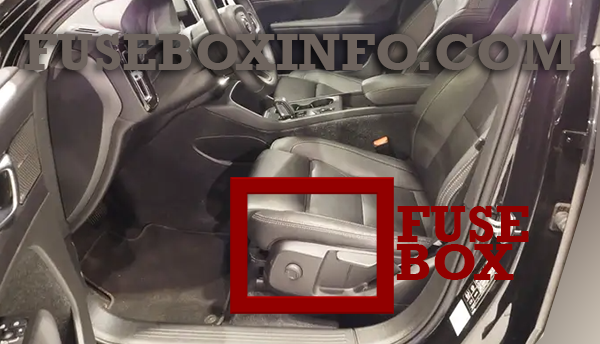

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located under the left front seat.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Audio control device (amplifier) |
| 2 | 40A | Central Electric Module A: Sensors, radar units, power seats* |
| 3 | 40A | Central Electric Module B: Sensors, radar units, power seats* |
| 4 | 40A | Fan module for climate control system, front |
| 5 | 25A | Power operated tailgate* |
| 6 | 20A | Power seat*, right |
| 7 | 25A | Parking heater* |
| 8 | 30A | Control module for reduction of nitrous oxides (diesel) |
| 9 | 20A | Door module, right rear |
| 10 | 20A | Door module, left rear |
| 11 | 20A | Door module, left front |
| 12 | - | - |
| 13 | 20A | Door module, right front |
| 14 | 15A | Seat heating, rear* |
| 15 | 5A | Fuel tank isolation valve, Intermediate voltage module |
| 16 | 5A | Calculation module |
| 17 | 5A | Sun sensor |
| 18 | 7.5A | Steering lock |
| 19 | 7.5A | Control module, climate control |
| 20 | 5A | Interior movement detector* |
| 21 | 5A | Driver display |
| 22 | 5A | Keypad in centre console |
| 23 | 5A | Steering wheel module |
| 24 | 5A | Module for start knob, Electronic shifting module, Electronic parking brake |
| 25 | 5A | Centre display |
| 26 | 5A | Control module, online car, Control module, Volvo On Call |
| 27 | 5A | Multiband antenna module |
| 28 | 5A | Relay coils |
| 29 | 5A | Opening the boot lid/tailgate with foot motion* |
| 30 | 15A | Sensus control module, TV* |
| 31 | 10A | Diagnostic port OBD-II |
| 32 | 5A | Alcohol lock* |
| 33 | 15A | Lock motor for head restraint, left rear |
| 34 | 15A | Lock motor for head restraint, right rear |
| 40 | 30A | Rear window defroster |
| 41 | 40A | Seatbelt pretensioner, left |
| 42 | 40A | Seatbelt pretensioner, right |
| 50 | 5A | Humidity sensor |
| 51 | 20A | Control module for fuel pump |
| 52 | 10A | Coolant pump |
| 53 | 15A | Heated steering wheel* |
| 54 | 5A | Air humidity sensor, Electric additional heater |
| 55 | 25A | Headlamp washers* |
| 56 | 25A | Windscreen and rear window washers |
| 57 | - | - |
| 58 | - | - |
| 59 | - | - |
| 60 | - | - |
| 61 | - | - |
| 62 | - | - |
| 63 | 5A | Seat belt tensioners |
| 64 | 5A | Blind Spot Information (BLIS)*, Control module, exterior reversing sound |
| 65 | - | - |
| 66 | - | - |
| 67 | 5A | All Wheel Drive (AWD) control module* |
| 68 | - | - |
| 69 | 5A | Parking camera* |
| 70 | - | - |
| 71 | 5A | Control module for airbags and seatbelt tensioners |
| 80 | 15A | Rear window wiper |
| 81 | 20A | Roof console for panoramic roof* |
| 82 | - | - |
| 83 | 7.5A | Interior lighting, Dimming of interior rearview mirror*, Rain and light sensor*, Control panels in rear doors and cargo area |
| 84 | - | - |
| 85 | 5A | Control module, driver support functions |
| 86 | 5A | Alcohol lock* |
| 87 | 5A | Wireless mobile charger*, USB port |
| 90 | - | - |
| 91 | - | - |
* Option/accessory
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 |
5A 7.5A |
USB port, tunnel console, rear* Double USB ports, tunnel console, rear* |
| 2 | 15A | 12 V socket, tunnel console, front |
| 3 | - | - |
| 4 | 15A | 12 V socket cargo area* |
| 5 | 10A | Engine Control Module (ECM) |
| 6 | 15A | Spark plugs/ignition coils (petrol) |
| 7 | 15A | Engine Control Module (ECM), Switching valve, exhaust gas recirculation (EGR) (diesel), Fuel evaporation valve (EVAP) (petrol) |
| 8 |
10A 15A |
Glow plug module (diesel), Control module, spoiler damper, Control module, radiator damper, Solenoid engine oil pump, Solenoid AC compressor, Engine component group (components related to engine function, including turbo/compressor and cooling/temperature control of drivetrain. Contents depend on engine alternative.) |
| 9 | 15A | Lambda probe group |
| 10 | 15A | Exhaust sensor group, diesel particulate/nitrous oxides (diesel), Engine control module (petrol) |
| 11 | 20A | Coolant pump |
| 12 | 20A | Headlight, right |
| 13 | 20A | Headlight, left |
| 14 | 5A | Airbags |
| 15 | 5A | Accelerator pedal sensor |
| 16 | 5A | Supplied when the ignition is switched on: Engine control module, Transmission components, Electric steering servo, Central electronic module, Control module for brake system |
| 17 | 5A | Exterior audio module, Firewall module, diagnostic port |
| 18 | 5A | Alcohol lock* |
| 19 | - | - |
| 20 | 5A | Internal relay coils |
| 21 | - | - |
| 22 | 5A | Brake pedal sensor |
| 23 | 5A | Calculation unit |
| 24 |
5A 25A |
Actuator, transmission Actuator, clutch |
| 25 |
15A 25A |
Transmission control module Actuator, clutch |
| 26 | 5A | Engine Control Module (ECM) |
| 27 | 15A | Charging unit |
| 28 | 5A | Control module, hybrid battery, High voltage converter, high-voltage generator/starter motor |
| 29 | 20A | Horn (honk) |
| 30 | 5A | Siren* |
| 31 | 30A | Windscreen wipers |
| 32 | 40A | Control module, brake system (valves, parking brake) |
| 33 | 40A | Control module, brake system (ABS pump) |
| 34 | 40A | Brake booster |
| 35 | 30A | Actuator, transmission, Transmission control module |
| 36 | 30A | Transmission control module |
| 37 | - | - |
| 38 | 30A | Headlights |
| 39 | - | - |
| 40 | 30A | Start relay |
| 41 | 25A | Towbar control module* |
| 42 | 40A | Towbar control module* |
| 43 | - | - |
| 44 | 20A | Power driver seat* |
| 45 | - | - |
| 46 | - | - |
| 47 | 5A | Air conditioning |
| 48 | 5A | Control module, hybrid battery, Converter, high-voltage generator/starter motor |
| 49 | 15A | Shut-off valve, hybrid battery cooling, Coolant pump, hybrid battery |
| 50 | 15A | Coolant pump, electric drive system |
| 51 | 30A | Fuel filter heater (diesel) |
| 52 | 40A | Heated windscreen*, right |
| 53 | 40A | Heated windscreen*, left |
| 54 | 5A | Control function, support battery |
| 55 | 20A | Headlight, left |
| 56 | 20A | Headlight, right |
* Option/accessory
