Can-Am Ryker Series 2027 Fuse Box Info

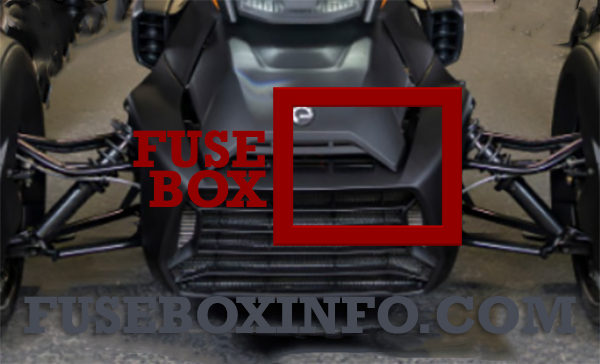

Fuse box location:

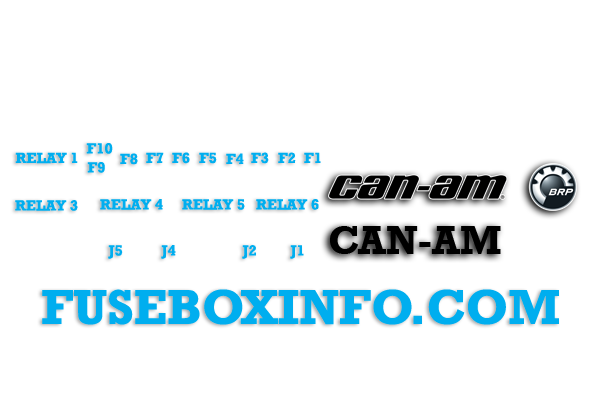

Fuse Box Diagram | Layout:
| Fuse/Relay N° | Rating | Functions |
| F1 | 7.5A | Horn |
| F2 | 25A | Headlamps LO, Signature Lights |
| F3 | 7.5A | USB, ACC |
| F4 | 15A | Cooling fan |
| F5 | 20A | Fuel pump, Ignition coils, Injectors, HO2S |
| F6 | 5A | Position, Plate lights |
| F7 | 10A | Cluster, ECM, VSS, RFID, SAS,YRS |
| F8 | 15A | Cluster, Start, DLC |
| F9 | 5A | Headlamps HI |
| F10 | 10A | Cluster |
| RELAY 1 | - | Headlamps |
| RELAY 3 | - | Main Relay |
| RELAY 4 | - | Cooling Fan |
| RELAY 5 | - | Headlamps LO / HI |
| RELAY 6 | - | Horn |
| J1 | 40A | VSS Pump |
| J2 | 25A | VSS Valves |
| J4 | 30A | Main |
| J5 | 50A | Battery |
