Can-Am Ryker Series 2026 Fuse Box Info

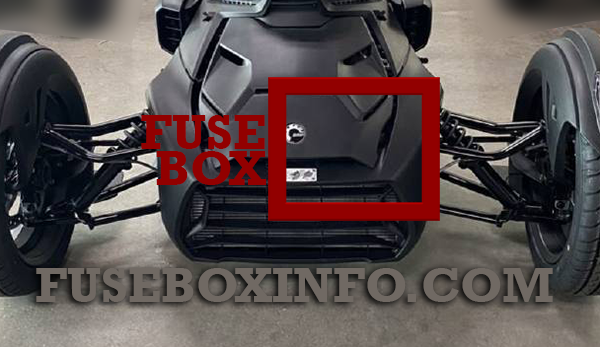

Fuse box location:
Fuse Box Diagram | Layout
| Fuse/Relay N° | Rating | Functions |
| F1 | 7.5A | Horn / Hazard |
| F2 | 20A | Headlamps |
| F3 | 7.5A | USB / ACC |
| F4 | 15A | Cooling fan |
| F5 | 20A | Fuel pump / Oxygen sensor / Ignition coils / Injectors |
| F6 | 7.5A | Position and License lights |
| F7 | 10A | Electronic module / Cluster / RFID / VCM / YRS / SAS |
| F8 | 15A | Start button / Cluster / DLC |
| J1 | 40A | VCM pump |
| J2 | 25A | VCM valves |
| J3 | - | EMPTY |
| J4 | 30A | Main |
| J5 | 50A | Battery |
| RY1 | - | Main relay |
| RY2 | - | Cooling fan relay |
| RY3 | - | Headlamps relay |
