Volvo XC40 Recharge Pure Electric 2023 Fuse Box Info

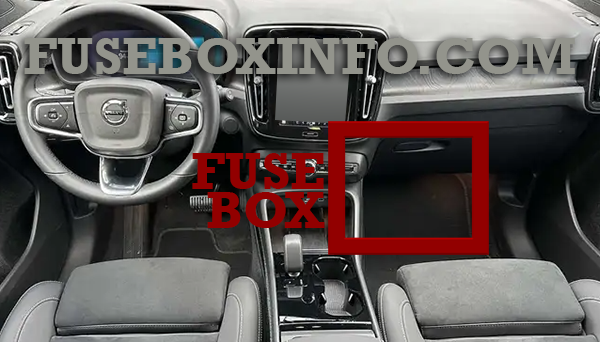

Passenger compartment fuse box location:
The fuse box in the passenger compartment is located behind the floor mat/panel, under the glove box.

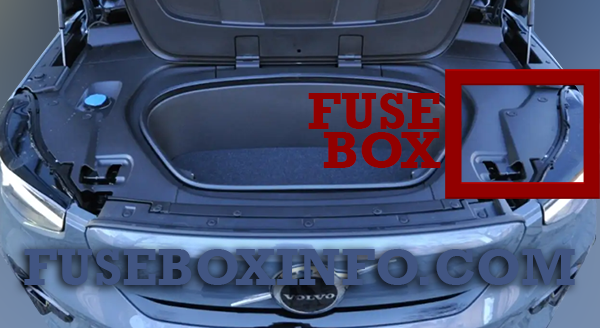

Under the bonnet compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | Audio control device (amplifier) |
| 2 | 40A | Electric Module A |
| 3 | 40A | Electric Module B |
| 4 | 40A | Fan, climate control, front |
| 5 | 25A | Power operated tailgate |
| 6 | 20A | Power seat*, left |
| 7 | 20A | Power seat*, right |
| 8 | - | - |
| 9 | 20A | Door module, right rear |
| 10 | 20A | Door module, left rear |
| 11 | 20A | Door module, left front |
| 12 | 15A | Rear lighting |
| 13 | 20A | Door module, right front |
| 14 | 15A | Seat heating, rear* |
| 15 | 5A | Safety module (ASDM), Converter, rear electric motors |
| 16 | 5A | Calculation module |
| 17 | 5A | Sun sensor |
| 18 | 7.5A | Steering lock |
| 19 | 7.5A | Control module, climate control |
| 20 | 5A | Interior movement detector* |
| 21 | 5A | Driver display |
| 22 | 5A | Keypad, centre console |
| 23 | 5A | Steering wheel module |
| 24 | 5A | Electronic shifting module, Parking brake |
| 25 | 5A | Centre display |
| 26 | 5A | Control module for online car, Control module for Connect |
| 27 | 5A | Antenna module (TCAM) |
| 28 | 5A | Relay coils |
| 29 | 5A | Opening the boot lid/tailgate with foot motion* |
| 30 | 15A | Control module, infotainment |
| 31 | 10A | Diagnostic port |
| 32 | 5A | Alcohol lock |
| 33 | 15A | Lowering, head restraint, left rear |
| 34 | 15A | Lowering, head restraint, right rear |
| 40 | 30A | Rear window defroster |
| 41 | 40A | Seatbelt pretensioner, left-hand side |
| 42 | 40A | Seatbelt pretensioner, right-hand side |
| 50 | - | - |
| 51 | - | - |
| 52 | 10A | Coolant pump |
| 53 | 15A | Steering wheel module, heated steering wheel* |
| 54 | - | - |
| 55 | 25A | Headlight washers* |
| 56 | 25A | Windscreen and rear window washers |
| 57 | - | - |
| 58 | - | - |
| 59 | - | - |
| 60 | - | - |
| 61 | - | - |
| 62 | - | - |
| 63 | 5A | Seat belt tensioners |
| 64 | 5A | Blind Spot Information (BLIS)* |
| 65 | - | - |
| 66 | - | - |
| 67 | 5A | Control module, radar, front |
| 68 | - | - |
| 69 | - | - |
| 70 | 5A | Prepared fuse, special chassis |
| 71 | 5A | Collision module (SRS) |
| 80 | 15A | Windscreen wiper, rear |
| 81 | 5A | Indicator roof console (SRS), Wake-up, electronic shifting module, 360° parking camera* |
| 82 | 20A | Roof console, panoramic roof* |
| 83 | 7.5A | Passenger compartment lighting, Dimming, interior rearview mirror, Rain and light sensors, Control panels, rear doors and cargo area, Transponder for road tax |
| 84 | 5A | Wireless charging plate* |
| 85 | 5A | Front-facing camera |
| 86 | 5A | Alcohol lock* |
| 87 | 5A | USB port |
| 90 | - | - |
| 91 | - | - |
* Option/accessory
Under the bonnet compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Double USB ports, tunnel console, rear* |
| 2 | 15A | 12V socket, front |
| 3 | - | - |
| 4 | 15A | 12 V socket cargo area* |
| 5 | 10A | Engine Control Module (ECM) |
| 6 | 15A | Valve group engine cooling |
| 7 | 5A | Battery cooling valve |
| 8 | 10A | Control module, spoiler damper, Control module, radiator damper |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | 20A | Headlight, right |
| 13 | 20A | Headlight, left |
| 14 | 5A | Collision module (SRS) |
| 15 | 5A | Accelerator pedal sensor |
| 16 | 5A | Powered when the car's electrical system is switched on: Engine control module, Transmission components, Electric steering servo, Central electronic module, Control module for brake system |
| 17 | 5A | Module, exterior sound |
| 18 | 5A | Alcohol lock |
| 19 | - | - |
| 20 | 5A | Internal relay coils |
| 21 | - | - |
| 22 | 5A | Brake pedal sensor |
| 23 | 5A | Calculation unit |
| 24 | 5A | Control module, high voltage battery |
| 25 | - | - |
| 26 | 5A | Engine Control Module (ECM) |
| 27 | 15A | Charging unit |
| 28 | 5A | Converter, front electric motor |
| 29 | 20A | Horn (honk) |
| 30 | 5A | Siren* |
| 31 | 30A | Windscreen wipers |
| 32 | - | - |
| 33 | - | - |
| 34 | - | - |
| 35 | 30A | Brake control module |
| 36 | - | - |
| 38 | 30A | Headlights |
| 39 | - | - |
| 40 | - | - |
| 41 | 25A | Towbar control module* |
| 42 | 40A | Towbar control module* |
| 43 | - | - |
| 44 | - | - |
| 45 | - | - |
| 46 | 5A | Outer heat exchanger* |
| 47 | 5A | Control module, AC compressor, Control module, high voltage heater, Control module, electric expansion valve, Monitoring unit |
| 48 | 15A | Control module, high voltage battery, Converter, front and rear electric motor |
| 49 | 20A | Coolant pump, high voltage battery |
| 50 | 20A | Coolant pump, electric drive system |
| 51 | - | - |
| 52 | 40A | Heated windscreen*, right |
| 53 | 40A | Heated windscreen*, left |
| 54 | - | - |
| 55 | 20A | Headlight, left |
| 56 | 20A | Headlight, right |
* Option/accessory
