Can-Am Canyon Series 2027 Fuse Box Info
Fuse box location:
The front fuse box is located under the front service cover. The rear fuse box is located under the driver’s seat
Fuse Box Diagram | Layout

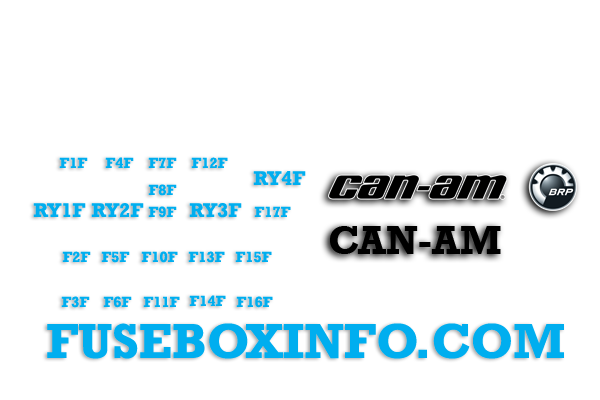

Front fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1F | 15A | Cooling fan |
| F2F | 15A | SASM |
| F3F | 15A | Injectors, Ignition coils |
| F4F | 7.5A | Parking lights, Plate light |
| F5F | 5A | ECM |
| F6F | 7.5A | Starter relay, HO2S heaters |
| F7F | 15A | Cluster, DLC, GPS module |
| F8F | 10A | Reverse activator, Suspension release valve |
| F9F | 20A | Parking brake |
| F10F | 15A | Purge valve, Fuel pump |
| F11F | 10A | Alternator |
| F12F | 7.5A | Headlamps LO (outside of North America) |
| F13F | 10A | Cluster, SASM, TCM, DPS, MSL, Switch lights, OBDII |
| F14F | - | Not used |
| F15F | 15A | DLC, Ext. ACC |
| F16F | 10A | Fog lights |
| F17F | 7.5A | Headlamp HI |
| Relays | ||
| RY1F | - | Cooling fan |
| RY2F | - | Reverse actuator |
| RY3F | - | Headlamps |
| RY4F | - | Hedlamps LO / HI |

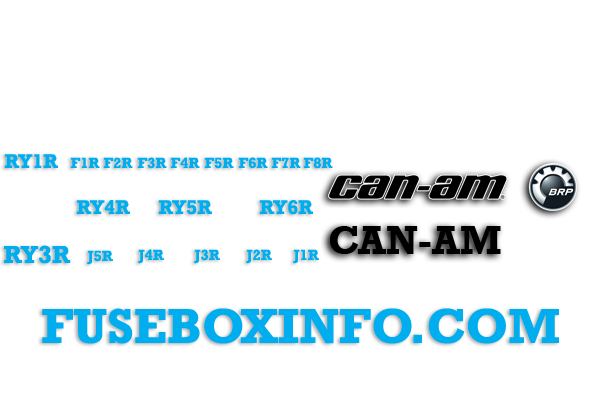

Rear fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1R | 7.5A | Hazard, Brake lights |
| F2R | 20A | TCU |
| F3R | 15A | Air suspension compressor (ASC) |
| F4R | 5A | YRS, VSS, ECM, DESS, MSR |
| F5R | 10A | Trailer |
| F6R | 5A | Front heated seat |
| F7R | 7.5A | Rear heating, Air suspension compressor control (ASC control) |
| F8R | 7.5A | Horn |
| JCase Fuses | ||
| J1R | 40A | Main Fusebox Rear |
| J2R | 40A | DPS |
| J3R | 40A | VSS pump |
| J4R | 25A | VSS valves |
| J5R | 40A | Main Fusebox Front |
| Relays | ||
| RY1R | - | Air suspension compressor |
| RY3R | - | Main power |
| RY4R | - | Horn |
| RY5R | - | Accessories |
| RY6R | - | TCU relay |
Alternator Circuit Fuse (This fuse is located under the driver’s seat, between battery and rear fuse box):
| Fuse/Relay N° | Rating | Functions |
| 80A | Alternator |
