Škoda Enyaq iV 2023 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the storage compartment on the driver’s side (LHD). The fuse box is located in the glove compartment on the passenger’s side, behind the cover (RHD).

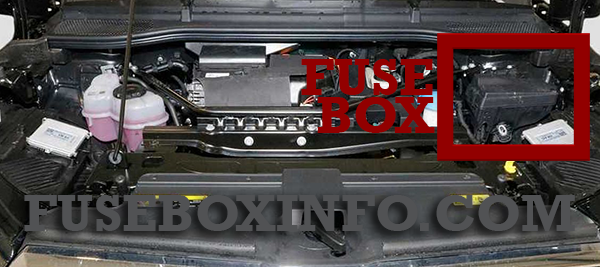

Engine compartment fuse box location:
Fuse Box Diagram | Layout

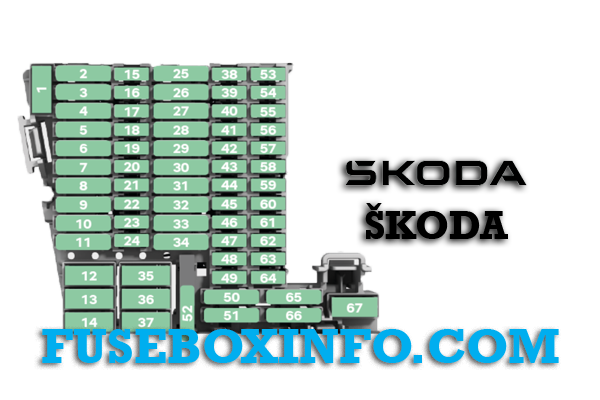

Passenger compartment fuse box::
| Fuse/Relay N° | Functions |
| 1 | 230V power socket |
| 2 | Airbags |
| 3 | Towing device |
| 4 | Front camera for assist systems |
| 5 | Exterior lighting of the rear of the vehicle |
| 6 | Interior lighting, front grille lighting |
| 7 | Front seat heating |
| 8 | Sliding/tilting roof |
| 9 | Window controls (left side of the vehicle), central locking (left side of the vehicle), left wing mirror (heating, folding, glass position adjustment), electric child lock (left side of the vehicle) |
| 11 | Towing device |
| 13 | Central locking (rear doors and boot lid), windscreen washers, headlight washers, headlights tilting function |
| 14 | Music amplifier |
| 17 | Rear radar sensors, Park Assist, Parking Aid |
| 18 | Steering wheel lock, KESSY (keyless locking), contactless operation of the electrically operated boot lid |
| 19 | Instrument cluster, emergency call, online services |
| 20 | Phone box, USB ports at the front |
| 21 | Rear view camera, area view system (Top View) |
| 22 | Engine control system |
| 23 | Communication system |
| 25 | Driver's seat belt tensioner |
| 26 | Window controls (right side of the vehicle), central locking (right side of the vehicle), right wing mirror (heating, folding, glass position adjustment), electric child lock (right side of the vehicle) |
| 27 | Passenger's seat belt tensioner |
| 28 |
High-voltage battery control system – safe disconnection of the high-voltage system The fuse may only be replaced by a specialist garage |
| 29 | Towing device |
| 30 | The Infotainment system |
| 31 | Towing device |
| 32 | Exterior vehicle lighting, third brake light, registration plate lighting |
| 34 | Heating / air conditioning |
| 35 | Rear seat heating |
| 36 | Heating/air conditioning fan |
| 37 | Electrically operated boot lid |
| 38 | Seat ventilation |
| 39 | Steering wheel heating |
| 40 | Alarm system horn |
| 41 | Data bus |
| 42 | Gearbox control, gearbox mode display |
| 43 | Air conditioning at the front, air conditioning at the rear, rear window heating |
| 44 | Front interior lighting, parking brake, rain and light sensor, lights control, alarm system, diagnostic socket, dashboard button panel |
| 45 | Control lever under the steering wheel |
| 46 | The Infotainment system, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 48 | USB at the rear |
| 52 | 12V socket in the boot |
| 58 | USB at the rear |
| 59 | Interior rear-view mirror with automatic darkening |
| 60 | Diagnostic connection |
| 61 | Drive system |
| 66 | Rear wiper |
| 67 | Rear window heating |

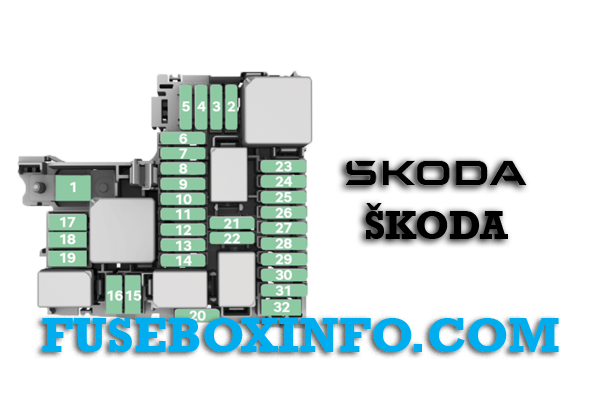

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | ESC assist system, BDM control system, main relay coil |
| 3 | High-voltage battery charger, electric drive |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 6 | Front radar sensor |
| 9 | Horn |
| 10 | Front wipers |
| 11 | Air conditioning + heating |
| 12 | Engine sound generator |
| 13 | ESC assist system |
| 15 | ESC assist system |
| 16 | Radiator fan |
| 17 | Windscreen heating |
| 23 | Engine control system |
| 24 | Radiator fan |
| 25 | Coolant pump, electric heater |
| 26 | Coolant pump, radiator grille |
| 32 | Brake booster |
