Škoda Enyaq 2025 Fuse Box Info

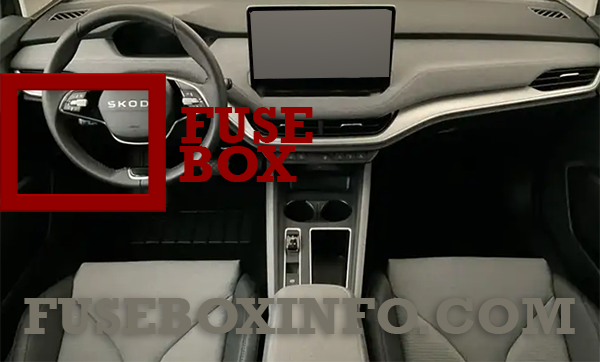

Passenger compartment fuse box location:
The fuse box is located behind the storage compartment on the driver’s side (left-hand drive). The fuse box is located behind the glove compartment on the passenger’s side. (right-hand drive).

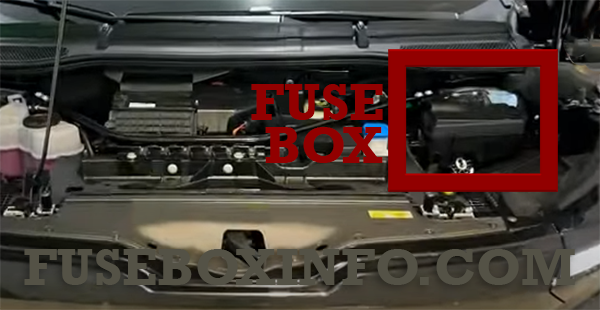

Engine compartment fuse box location:
Fuse Box Diagram | Layout

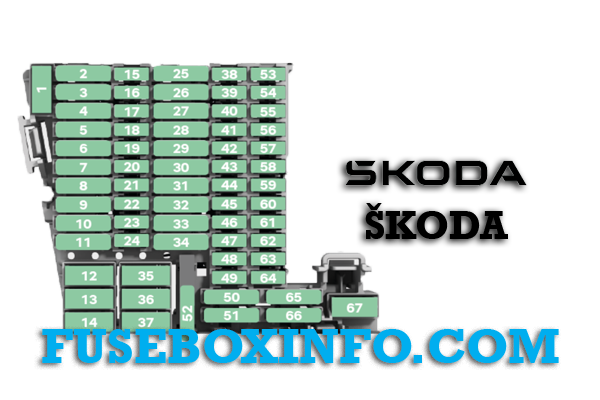

Passenger compartment fuse box::
| Fuse/Relay N° | Functions |
| 2 | Airbags |
| 3 | Towing bracket |
| 4 | Front camera for assist systems |
| 5 | Exterior lighting of the rear of the vehicle |
| 6 | Interior lighting |
| 7 | Front seat heating |
| 8 | Sunroof |
| 9 | Window controls (left side of the vehicle), central locking (left side of the vehicle), left wing mirror (heating, folding, glass position adjustment), electric child lock (left side of the vehicle) |
| 11 | Towing bracket |
| 13 | Central locking (rear doors and boot lid), windscreen washers, headlights tilting function, locking the charging socket cover |
| 14 | Music amplifier |
| 17 | Rear radar sensors, Park Assist, Parking Aid |
| 18 | Steering wheel lock, KESSY (keyless locking), contactless operation of the electrically operated boot lid |
| 19 | Instrument cluster, emergency call, online services |
| 20 | Phone box, USB ports at the front, USB ports at the back |
| 21 | Rear view camera, area view system (Top View) |
| 22 | Engine control system |
| 23 | Communication system |
| 25 | Driver's seat belt tensioner |
| 26 | Window controls (right side of the vehicle), central locking (right side of the vehicle), right wing mirror (heating, folding, glass position adjustment), electric child lock (right side of the vehicle) |
| 27 | Passenger's seat belt tensioner |
| 28 |
High-voltage battery control system – safe disconnection of the high-voltage system The fuse may only be replaced by a specialist garage |
| 29 | Towing bracket |
| 30 | The Infotainment system |
| 31 | Towing bracket |
| 32 | Exterior vehicle lighting, third brake light, registration plate lighting |
| 34 | Heating / air conditioning |
| 35 | Rear seat heating |
| 36 | Heating/air conditioning fan |
| 37 | Electrically operated boot lid |
| 38 | Seat ventilation |
| 39 | Steering wheel heating |
| 40 | Alarm system horn |
| 41 | Data bus |
| 42 | Gearbox control, gearbox mode display |
| 43 | Air conditioning at the front, air conditioning at the rear, rear window heating |
| 44 | Front interior lighting, parking brake, rain and light sensor, lights control, alarm system, diagnostic socket, dashboard button panel. |
| 45 | Control lever under the steering wheel |
| 46 | The Infotainment system screen, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 52 | 12V socket in the boot |
| 59 | Interior rear-view mirror with automatic darkening |
| 60 | Diagnostic socket |
| 61 | Drive system |
| 66 | Rear wiper |
| 67 | Rear window heating |

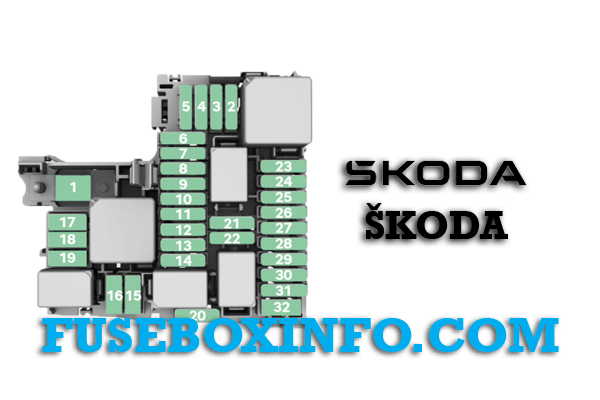

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | ESC assist system, the main relay coil |
| 3 | High-voltage battery charger, electric drive |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 6 | Front radar sensor |
| 9 | Horn |
| 10 | Front wipers |
| 11 | Air conditioning + heating |
| 12 | Engine sound generator |
| 13 | ESC assist system |
| 15 | ESC assist system |
| 16 | Radiator fan |
| 17 | Windscreen heating |
| 23 | Engine control system |
| 24 | Radiator fan |
| 25 | Coolant pump, electric heater |
| 26 | Coolant pump, radiator grille |
| 32 | Brake booster |
