Škoda Superb 2024 Fuse Box Info

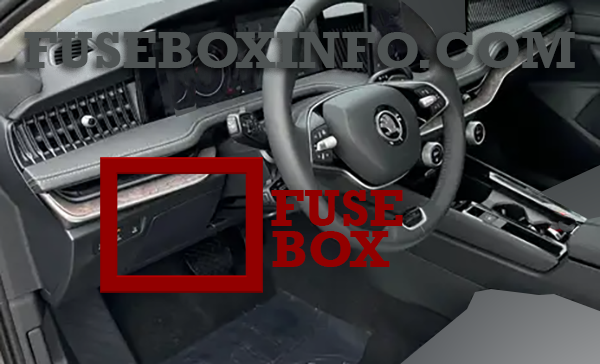

Passenger compartment fuse box location:
The fuse box is located under the instrument panel behind the cover on the driver’s side (LHD), The fuse box is located behind the glove box (RHD).

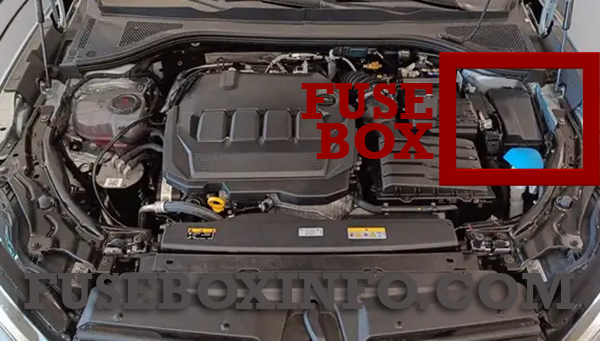

Engine compartment fuse box location:
Fuse Box Diagram | Layout

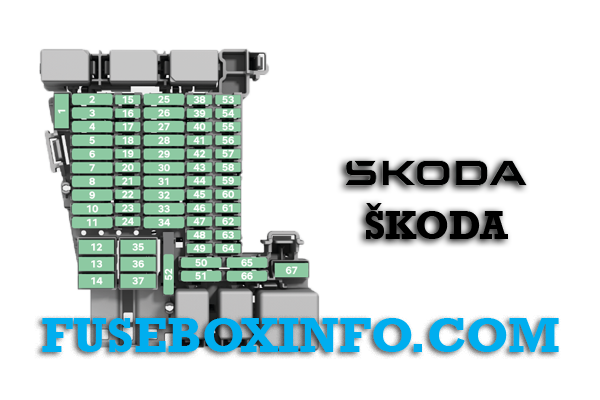

Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 3 | Towing bracket |
| 4 | SCR (AdBlue®) |
| 5 | Gearbox control |
| 6 | Interior lighting and backlighting |
| 7 | Front seat heating |
| 8 | Sliding/tilting roof |
| 9 | Window controls (left-hand side), left exterior mirror (heating, tilting, glass position adjustment), central locking (left-hand side) |
| 11 | Towing bracket |
| 12 | Vehicle exterior lighting |
| 13 | Central locking, windscreen washers |
| 14 | Music amplifier |
| 16 | Airbags |
| 18 | KESSY (keyless locking), steering wheel lock |
| 19 | Instrument cluster, emergency call, online services |
| 20 | USB sockets at the front and rear, Phone box |
| 21 | Rear radar sensors, parking, rear view camera, monitoring the surroundings system (Top View), contactless operation of the electric boot lid, Car2X communication unit |
| 22 | Front camera for assistance systems, front radar sensors, front radar |
| 23 | Front right seat with massage function, front right seat ventilation |
| 24 | All-wheel drive |
| 25 | Front left seat belt retractor |
| 26 | Window controls (right-hand side), right exterior mirror (heating, tilting, glass position adjustment), central locking (right-hand side) |
| 27 | Front right seat belt retractor |
| 29 | Towing bracket |
| 30 | The Infotainment system |
| 31 | Towing bracket |
| 32 | Rear seat heating |
| 33 | Front left seat with massage function, front left seat ventilation |
| 35 | Vehicle exterior lighting |
| 36 | Heating/air conditioning fan |
| 37 | Electrically operated boot lid, electrically operated roll-up luggage compartment cover |
| 39 | Steering wheel heating |
| 40 | Alarm |
| 41 | Data bus |
| 43 | Air conditioning/heating, independent heating, rear window heating, tyre pressure monitoring, Smart Dials |
| 44 | Front interior lighting, parking brake, rain and light sensor, lights control, alarm system, diagnostic socket, headlights |
| 45 | Control lever under the steering wheel |
| 46 | The Infotainment system screen, Head-up display |
| 47 | Adaptive Chassis Control (DCC) |
| 48 | USB charging – at the interior rear-view mirror |
| 52 | 12V sockets |
| 58 | Parking |
| 59 | Interior rear-view mirror with auto-dimming, air conditioning coolant sensor |
| 60 | Diagnostic socket |
| 61 | Starter |
| 66 | Rear wiper |
| 67 | Rear window heating |

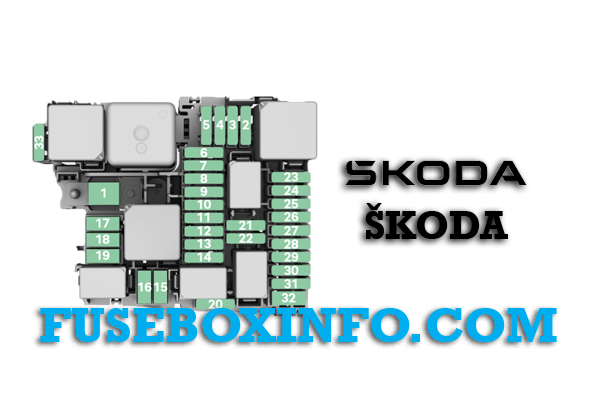

Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 2 | ESP, engine control system, starter-generator (mHEV) |
| 3 | Ignition |
| 4 | Front left headlight |
| 5 | Front right headlight |
| 7 | Automatic gearbox oil pump |
| 9 | Horn |
| 10 | Front wipers |
| 12 | Automatic gearbox |
| 14 | Independent heater |
| 17 | Electric auxiliary heater |
| 18 | Electric auxiliary heater |
| 21 | Engine control system |
| 22 | Starter |
| 23 | Engine control system |
| 24 | Engine components |
| 25 | Engine components |
| 26 | Engine components |
| 27 | Engine components |
| 28 | Engine components |
| 29 | Fuel pump |
| 32 | Windscreen heating |
| 33 | Electric auxiliary heater |
