Pontiac Grand Am 2005 Fuse Box Info
Passenger compartment fuse box location:

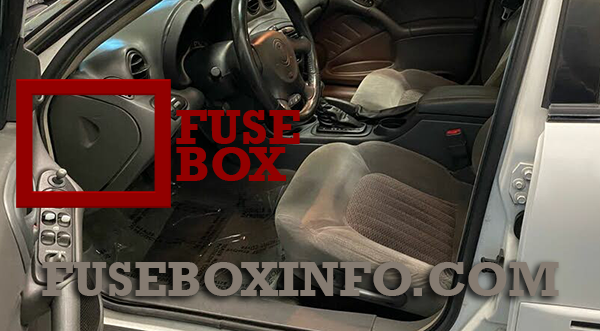

The instrument panel fuse box is located on the end of the instrument panel on the driver’s side.

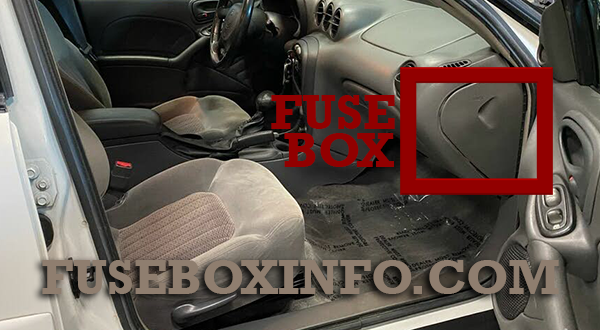

The instrument panel fuse box is located on the end of the instrument panel on the passenger’s side.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Driver’s Side):
| Fuse/Relay | Functions |
| Fuses | |
| A | Windshield Wiper Motor, Washer Pump |
| B | Trunk Release Relay/Motor, Audio Amplifier/RFA |
| C | Turn Signal Lamps |
| D | Power Mirrors |
| E | Air Bags |
| F | Body Computer (BFC) |
| G | Power Controle Module (PCM) |
| H | Door Lock Motors |
| I | Cluster, Body Computer (BFC) |
| J | Stop Lamps |
| K | Hazard Lamps |
| L | HVAC Head, Cluster, Data Link Connector |
| Circuit Breaker | |
| PWR SEAT | Power Seats |
| Relays | |
| TRUNK REL | Trunk Relay |
| DR UNLOCK | Door Unlock Relay |
| DR LOCK | Door Lock Relay |
| DRIVER DR UNLOCK | Driver’s Door Unlock Relay |
Passenger compartment fuse box (Passenger’s Side):
| Fuse/Relay | Functions |
| Fuses | |
| A | Interior Lamp Dimming |
| B | Steering Wheel Cruise Control Switch Lamps |
| C | Steering Wheel Cruise Control Switches |
| D | HVAC Blower Motor |
| E | Cruise Control |
| F | Fog Lamps |
| G | Interior Courtesy Lamps |
| H | Radio, XM™ Satellite Radio/DAB |
| I | Power Sunroof |
| Circuit Breaker | |
| PWR WNDW | Power Windows |
| Relay | |
| FOG LPS | Fog Lamps |
Engine compartment fuse box:
| Fuse/Relay | Functions |
| Fuses | |
| 1 | Ignition Switch |
| 2 | Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps |
| 3 | Left Electrical Center-Stop Lamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System |
| 4 | Anti-Lock Brakes |
| 5 | Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release, Audio Amplifier, Remote Keyless Entry |
| 6 | Not Used |
| 7 | Ignition Switch |
| 8 | Cooling Fan #1 |
| Relays | |
| 9 | Rear Defog |
| 10 | Not Used |
| 11 | Starter (V6 only) |
| 12 | Cooling Fan #1 |
| 13 | HVAC Blower (Climate Control) |
| 14 | Cooling Fan #2 |
| 15 | Cooling Fan |
| 16 | Air Conditioning Compressor |
| 17 | Not Used |
| 18 | Fuel Pump |
| 19 | Automatic Light Control |
| 20 | Automatic Light Control |
| 21 | Horn |
| 22 | Daytime Running Lamps (DRL) |
| Fuses | |
| 23-32 | Spare Fuse Holder |
| 33 | Rear Defog |
| 34 | Accessory Power Outlets, Cigar Lighter |
| 35 | Generator |
| 36 | Not Used |
| 37 | Air Conditioning Compressor, Body Function Control Module |
| 38 | Automatic Transaxle |
| 39 | Powertrain Control Module (PCM) |
| 40 | Anti-Lock Brakes (ABS) |
| 41 | Ignition System |
| 42 | Back-Up Lamps, Brake Transaxle Shift Interlock |
| 43 | Horn |
| 44 | PCM |
| 45 | Parking Lamps |
| 46 | Climate Control System, Air Conditioning |
| 47 | Canister Vent Valve, Exhaust Oxygen Sensors |
| 48 | Fuel Pump, Injectors |
| 49 | Not Used |
| 50 | Right Headlamp |
| 51 | Left Headlamp |
| 52 | Cooling Fan #2 |
| 53 | HVAC Blower (Climate Control ) |
| 54 | Crank (V6 only) |
| 55 | Cooling Fan #2 Ground |
| 56 | Fuse Puller for Mini Fuses |
| 57 | Not Used |
