Pontiac Solstice 2008 Fuse Box Info

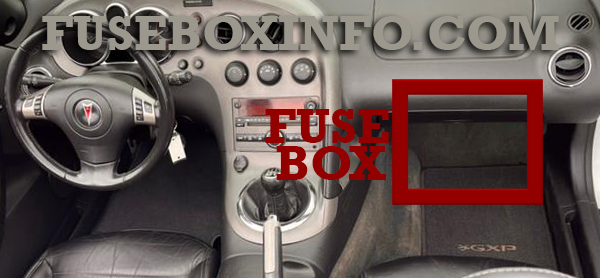

Passenger compartment fuse box location:
The passenger compartment fuse box is located on the passenger’s side of the vehicle under the carpet

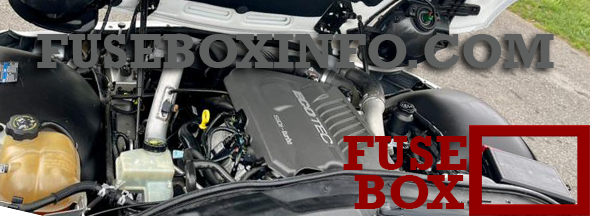

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Fuse Puller |
| 2 | Empty |
| 3 | Empty |
| 4 | Empty |
| 5 | Empty |
| 6 | Amplifier |
| 7 | Cluster |
| 8 | Ignition Switch, PassKey III+ |
| 9 | Stoplamp |
| 10 | Climate Control System, PassKey III+ |
| 11 | Empty |
| 12 | Spare |
| 13 | Airbag |
| 14 | Spare |
| 15 | Wiper |
| 16 | Climate Control System, Automatic Occupant Sensing Module, Crank Relay, Instrument Panel Cluster |
| 17 | Empty |
| 18 | Empty |
| 19 | Steering Wheel Controls |
| 20 | Spare |
| 21 | Spare |
| 22 | Empty |
| 23 | Radio |
| 24 | Sensing and Diagnostic Module |
| 25 | Engine Control Module, Transmission Control Module |
| 26 | Door Locks |
| 27 | Interior Lamps |
| 28 | Steering Wheel Control Backlighting |
| 29 | Power Windows |
| 30 | Climate Control System |
| 31 | Empty |
| 32 | Retained Accessory Power |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 1 | Empty (LE5); Cooling Fan (LNF) |
| 2 | Rear Window Defogger |
| 3 | Empty |
| 4 | Body Control Module 3 |
| 5 | Crank |
| 6 | Body Control Module 2 |
| 7 | Body Control Modulel |
| 8 | Cooling Fan 2 (LE5); Empty (LNF) |
| 9 | Empty |
| 10 | Trunk |
| 11 | Trunk |
| 12 | Empty |
| 13 | Fuel Pump |
| 14 | Rear Defogger Relay |
| 15 | Air Conditioning Clutch Relay |
| 16 | Empty |
| 17 | Empty |
| 18 | Trunk Release Relay |
| 19 | Fuel Pump Relay |
| 20 | Empty |
| 21 | Mirrors |
| 22 | Air Conditioning |
| 23 | Empty |
| 24 | Cooling Fan 2 Relay (LE5); Empty (LNF) |
| 25 | Fuse Puller |
| 26 | Powertrain Relay |
| 27 | Empty |
| 28 | Back-up Lamps Relay (Automatic Transmission); Empty (Manual Transmission) |
| 29 | Data Link Connector |
| 30 | Outlet |
| 31 | Back-up Lamps (Automatic Transmission); Empty (Manual Transmission) |
| 32 | Empty |
| 33 | Emissions |
| 34 | Crank Relay |
| 35 | Empty |
| 36 | Empty |
| 37 | Power Seat |
| 38 | Empty |
| 39 | Empty |
| 40 | Cooling Fan 1 (LE5); Empty (LNF) |
| 41 | Empty (LE5); Turbo, Cam Phaser (LNF) |
| 42 | Engine Control Module |
| 43 | Engine Control Module, Transmission |
| 44 | Anti-lock Brake System |
| 45 | Injectors, Ignition Coils (LE5); Ignition Coils (LNF) |
| 46 | Back-up Lamps (Manual Transmission); Empty (Automatic Transmission) |
| 47 | Empty |
| 48 | Daytime Running Lamps Relay |
| 49 | Daytime Running Lamps |
| 50 | Cooling Fan 1 Relay (LE5); Empty (LNF) |
| 51 | Run/Crank Relay |
| 52 | Windshield Wiper Low/High Relay |
| 53 | Fog Lamps |
| 54 | Fog Lamps Relay |
| 55 | Horn Relay |
| 56 | S Band, OnStar®, Remote Keyless Entry System |
| 57 | Anti-lock Brake System |
| 58 | Wiper Diode |
| 59 | Windshield Wiper |
| 60 | Horn |
| 61 | Anti-lock Brake System |
| 62 | Instrument Panel Ignition |
| 63 | Driver’s Side High Beam |
| 64 | Canister Vent |
| 65 | Driver’s Side Low-Beam Headlamp |
| 66 | Passenger’s Side Low-Beam Headlamp |
| 67 | Passenger’s Side High-Beam Headlamp |
| 68 | Parking Lamps Relay |
| 69 | Parking Lamps |
| 70 | Windshield Wiper On/Off Relay |
| 71 | Low-Beam Headlamp Relay |
| 72 | High-Beam Headlamp Relay |
