Opel Grandland X 2022 Fuse Box

Opel Grandland X 2022 Fuse Box Info



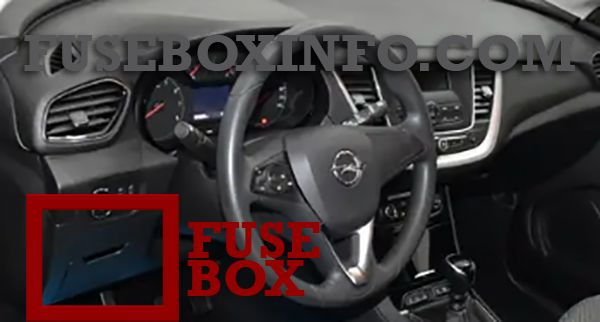

Passenger compartment fuse box location:

In left-hand drive vehicles, the fuse box is located behind a cover in the instrument panel at the left side. In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox.



Engine compartment fuse box location:







Fuse Box Diagram | Layout



Passenger compartment fuse box (Version 1):

Fuse/Relay N° Functions
1 Electronic key system, Anti-theft alarm system
4 Stop-start system
5 Advanced parking assist, Camera, Transmission control module
7 Amplifier
8 Rear wiper
10 Central locking system
11 Central locking system
13 Anti-theft alarm system
16 Electrical power steering wheel
18 BTA module
21 Interior lights
22 Glovebox light
23 Blind spot alert system, Exterior mirror adjustment, Inductive
charging
24 Column electrical assembly
25 Interior mirror
26 Seat belt reminder
27 Camera, Rain sensor, Automatic light control
28 USB, Infotainment
31 Airbag
33 Power outlet front
36 Infotainment



Passenger compartment fuse box (Version 2):

Fuse/Relay N° Functions
1 Interior mirror, Electrical power steering wheel, Selective ride
control, Radar, Diesel exhaust system
3 Trailer provisions control module
4 Horn
5 Windscreen washer
6 Windscreen washer
7 Power outlet rear
10 Doors lock, Tailgate lock
11 Doors lock, Tailgate lock
12 Stop-start system, Diagnostic connector module, Brake system
13 Infotainment, Climate control system
14 Alarm siren
15 Climate control system
16 Stop-start system, Brake system
17 Instrument cluster
19 Column electrical assembly, Steering wheel controls
21 Anti-theft alarm system
22 Camera, Rain sensor, Automatic light control
23 Seat belt reminder
24 Automatic transmission, Advanced parking assist, Panoramic view system
25 Airbag
26 Electronic Stability Control
27 Alarm
28 BTA module
29 Infotainment
32 Cigarette lighter, Power outlet front
34 Heated rear window, Heated windscreen, Inductive charging
35 Light switch, Diagnostic connector module
36 Lighting



Engine compartment fuse box (Version 1):

Fuse/Relay N° Functions
9 Anti-theft alarm system
10 Stop-start system
11 Diesel exhaust system
13 Stop-start system
15 Electric power steering, Radar
22 Horn
29 Starter



Engine compartment fuse box (Version 2):

Fuse/Relay N° Functions
1 Climate control
2 Steering wheel
4 Electric parking brake
6 Air vent
16 Front fog lights
18 Right high beam (Halogen), Right headlight (LED)
19 Left high beam (Halogen), Right headlight (LED)
21 Starter
22 Heated windscreen
26 Additional Heater, Heated windscreen
