Opel Combo 2021 Fuse Box Info

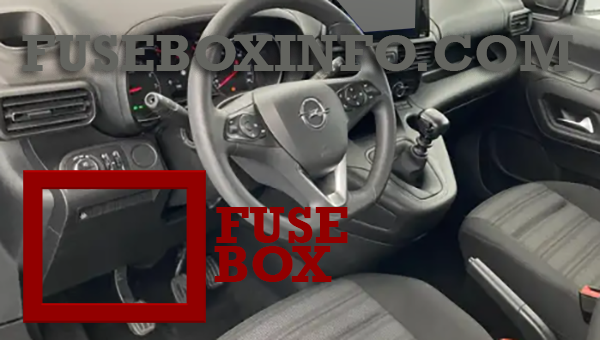

Passenger compartment fuse box location:
The fuse box is located behind a cover in the instrument panel at the left side.

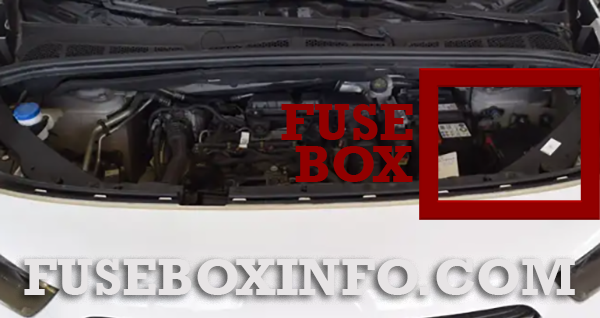

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box (Non-electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Inductive charging, clutch switch, selective ride control, power steering, diesel exhaust system, interior mirror |
| 4 | Horn |
| 6 | Windscreen washer |
| 7 | Power outlet rear |
| 10 | Door lock |
| 12 | Diagnostic connector, power supply transformer |
| 13 | Head-up display, climate control, Infotainment system |
| 14 | Anti-theft alarm system, telematic unit |
| 15 | Automatic transmission, instrument cluster, climate control |
| 16 | Starter, power supply transformer |
| 17 | Instrument cluster |
| 19 | Trailer socket, steering wheel controls |
| 21 | Anti-theft system, power button |
| 22 | Rear view camera, rain and light sensor |
| 23 | Seat belt reminder, special vehicle control module, start-stop, trailer socket |
| 24 | Parking assist, Infotainment system, rear view camera, side blind spot camera |
| 25 | Airbag |
| 26 | Steering angle sensor |
| 27 | Parking heater |
| 29 | Infotainment system |
| 31 | - |
| 32 | Power outlet |
| 34 | Parking assist, interior mirror |
| 35 | Diagnostic connector, headlight range adjustment, heated windscreen, climate control |
| 36 | Interior lights, USB port |
Passenger compartment fuse box (Electric vehicle):
| Fuse/Relay N° | Functions |
| 1 | Inductive charging, clutch switch, selective ride control, power steering, diesel exhaust system, interior mirror |
| 4 | Horn |
| 5 | Windscreen washer |
| 6 | Windscreen washer |
| 7 | Power outlet rear |
| 8 | Rear wiper |
| 10 | Door lock |
| 12 | Diagnostic connector, power supply transformer |
| 13 | Head-up display, climate control, Infotainment system |
| 14 | Anti-theft alarm system, charging status indicator |
| 15 | Instrument socket, automatic gearbox selector (e-toggle) |
| 16 | Starter, power supply transformer |
| 17 | Instrument cluster |
| 19 | Steering wheel controls, top column modul |
| 21 | Anti-theft system, power button |
| 22 | Rear view camera, rain and light sensor |
| 23 | Seat belt reminder, special vehicle control module, start-stop, trailer power outlet |
| 24 | Parking assist, Infotainment system, rear view camera, side blind spot camera |
| 25 | Airbag |
| 26 | Panoramic view system |
| 27 | - |
| 29 | Infotainment system |
| 31 | - |
| 32 | Power outlet |
| 34 | Parking assist, interior mirror |
| 35 | Diagnostic connector, headlight range adjustment, heated windscreen, pedestrian safety alert |
| 36 | Interior lights, USB port |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 16 | Front fog lights |
| 18 | Right headlight |
| 19 | Left headlight |
| 29 | Windscreen wiper |
