Opel Combo 2017 Fuse Box Info

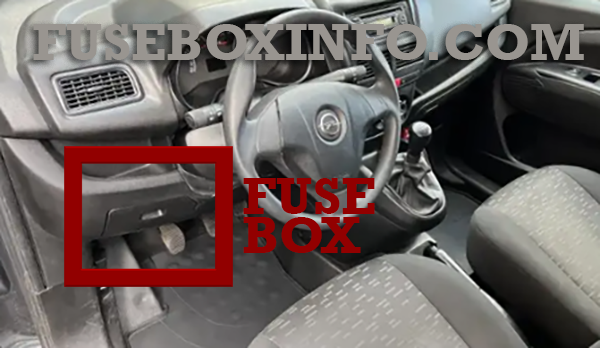

Passenger compartment fuse box location:
The fuse box is located behind a cover on the lower part of the instrument panel, on the driver's side.

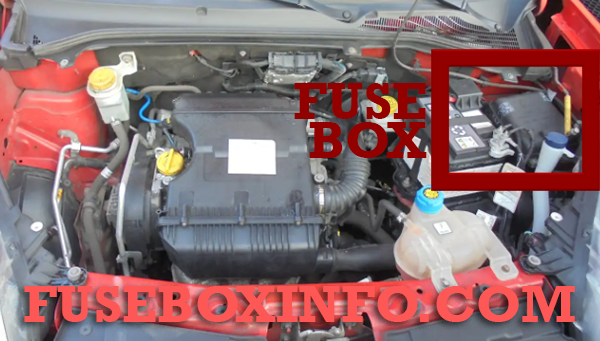

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Functions |
| 12 | Right low beam |
| 13 | Left low beam, Headlight range adjustment |
| 31 | Fusebox relays, Body control unit relays |
| 32 | Courtesy lights |
| 36 | Diagnostic connector, Climate control system, Infotainment system, Tyre pressure monitoring system, Alarm siren |
| 37 | Instrument panel, Braking system |
| 38 | Central locking system |
| 43 | Windscreen washer system |
| 47 | Power windows |
| 48 | Power windows |
| 49 | Exterior mirrors, Infotainment system, Parking assist, Tyre pressure monitoring system, Instrument illumination, Rain sensor |
| 51 | Infotainment system, Braking system, Clutch, Interior heater |
| 53 | Instrument panel |
| 94 | Power outlet load compartment |
| 95 | Cigarette lighter, Power outlet |
| 96 | Cigarette lighter, Power outlet |
| 97 | Heated front seat |
| 98 | Heated front seat |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 09 | Rear door switch |
| 10 | Horn |
| 14 | High beam |
| 15 | PTCI heater |
| 19 | Air conditioning system |
| 20 | Heated rear window |
| 21 | Fuel pump |
| 30 | Fog lights |
| 84 | CNG system |
| 85 | Power outlets |
| 86 | Cigarette lighter, Heated seats |
| 87 | Stop-start system |
| 88 | Mirror heating |
