Opel Movano 2021 Fuse Box

Opel Movano 2021 Fuse Box Info

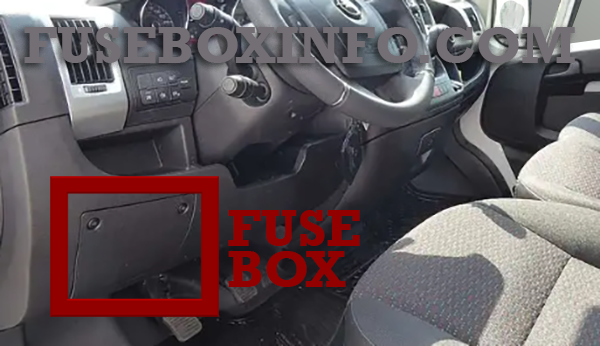

Passenger compartment fuse box location:

The fuse box is located behind a cover in the instrument panel at the left side.

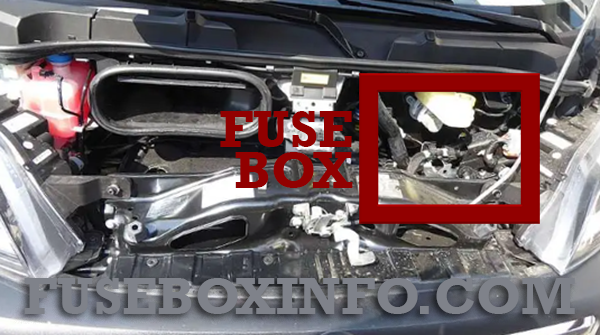

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Functions
12 Right low beam
13 Left low beam
31 Instrument panel control unit
32 Interior lights
33 Stop-start system
34 Interior lights Minibus - Hazard warning flashers
36 Infotainment system, Climate control, Alarm, Tachograph, Battery disconnecting control unit, Additional heater, Tyre pressure monitoring, Stop-start system
37 Brake system, Instrument panel
38 Central locking system
42 Electronic stability control system, Traction control system, ABS, Brake light
43 Windscreen washer
47 Electric windows
48 Electric windows
49 Parking assist, Infotainment system, Steering wheels controls, Central and side control panels, Auxiliary control panel, Battery disconnecting control unit, Trailer hitch, Rain sensor, Stop-start system
50 Airbag system, Pretensioners
51 Tachograph, Power steering, Climate control system, Reversing lights, Navigation system, Lane departure warning, Rear view camera, Headlights
53 Insrument panel
89 -
90 Left high beam
91 Right high beam
92 Left front fog light
93 Right front fog light



Passenger compartment fuse box (Additional fuse box - located in the right B-pillar):

Fuse/Relay N° Functions
54 Climate control system
55 Seat heating
59 Power outlet rear passenger
57 Additional heater
58 Heated rear window
59 Heated rear window
60 -
61 -
62 -
63 Additional heater
64 -
65 Additional heater



Engine compartment fuse box:

Fuse/Relay N° Functions
1 ABS
2 Fuel system
3 Ignition switch
4 Fuel system
5 Climate control system
6 Climate control system
7 Climate control system
8 Climate control system
9 Power outlet rear
10 Horn
14 Power outlet front
15 Cigarette lighter
19 Climate control system
20 Windscreen washer
21 Fuel system
23 ABS
24 Auxiliary control panel, Electric mirrors
30 Climate control system
