Opel Zafira Life 2023 Fuse Box Info

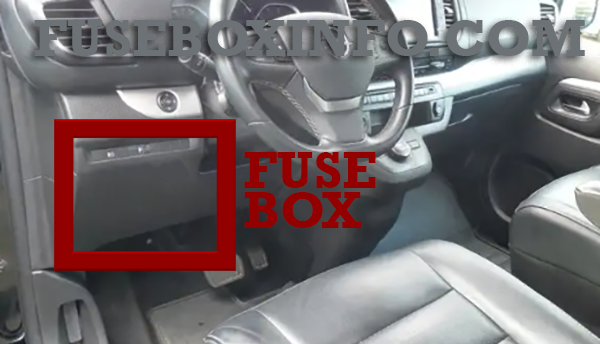

Passenger compartment fuse box location:
The fuse box is located behind a cover in the instrument panel at the left side.

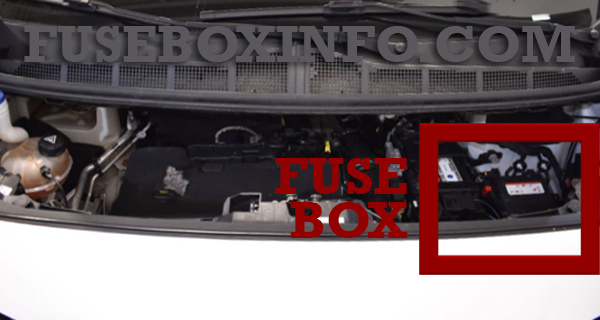

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box - Version 1 (Eco):
| Fuse/Relay N° | Functions |
| 1 | Clutch switch, power steering |
| 4 | Horn |
| 5 | Front and rear screenwash pump |
| 6 | Front and rear screenwash pump |
| 7 | Rear power outlet |
| 8 | Rear window wipers |
| 10/11 | Central locking system |
| 13 | Head-up display, climate controls, Infotainment system controls, gear selector |
| 14 | Anti-theft alarm system, telematic unit |
| 17 | Instrument cluster |
| 19 | Steering wheel controls |
| 21 | Anti-theft system or electronic key system |
| 22 | Front camera, rain and light sensor |
| 23 | Seat belt reminder |
| 24 | Parking assist, Infotainment system, rear view camera |
| 25 | Airbags |
| 29 | Infotainment system |
| 31 | Infotainment system (+ battery) |
| 32 | Front power outlet |
| 34 | Interior mirror, blind spot monitoring system, door mirror controls |
| 35 | Heated washer jets, headlight range adjustment |
| 36 | Interior lights, torch charger |
Passenger compartment fuse box - Version 2 (Full):
| Fuse/Relay N° | Functions |
| 1 | Anti-theft system or electronic key system |
| 5 | Parking assist, Infotainment system, rear view camera |
| 7 | Rear climate controls, audio system amplifier |
| 8 | Rear window wipers |
| 10/11 | Central locking system |
| 12 | Anti-theft alarm system |
| 17 | Rear power outlet |
| 18 | Telematic unit |
| 21 | Interior lights, torch charger |
| 22 | Interior lights, glovebox light |
| 23 | Blind spot monitoring system, door mirror controls |
| 24 | Steering wheel controls |
| 25 | Headlight range adjustment |
| 26 | Seat belt reminder |
| 27 | Front camera, rain and light sensor |
| 28 | Head-up display, front climate controls, Infotainment system controls, gear selector |
| 30A or 30B | Audio system (+battery) |
| 31 | Airbag |
| 33 | Front power outlet |
| 35 | Instrument cluster |
| 36 | Infotainment system |
Engine compartment fuse box:
| Fuse/Relay N° | Functions |
| 12 | Heated washer jets |
| 14 | Front and rear screenwash pump |
| 15 | Front radar system, electric power steering |
| 17 | Built-in systems interface |
| 19 | Front wiper motor |
| 20 | Front and rear screenwash pump |
| 21 | Headlight wash pump |
| 22 | Horn |
| 23 | Right high beam |
| 24 | Left high beam |
