Mitsubishi Eclipse Cross 2023 Fuse Box

Mitsubishi Eclipse Cross 2023 Fuse Box Info

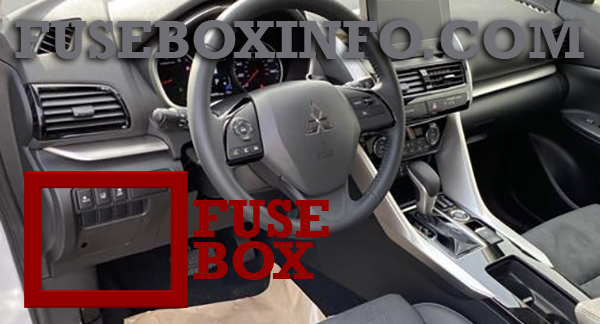

Passenger compartment fuse box location:

The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

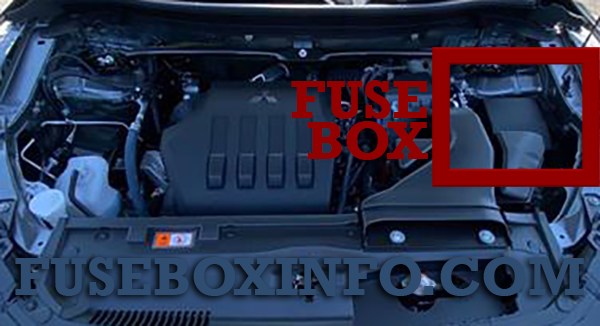

Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay N° Rating Functions
1 30A Power window control
2 30A Defogger
3 30A Heater
4 30A Windscreen wipers
5 25A Door locks
6 - -
7 15A 12 V power outlet
8 15A Rear window wiper
9 20A Sunroof
10 10A Ignition switch
11 10A Option
12 15A Hazard warning flasher
13 10A 4-wheel drive system
14 15A Stop lamps (Brake lamps)
15 10A Gauges
16 7.5A SRS airbag
17 15A Radio
18 7.5A Control unit relay
19 15A Interior lamps (Room lamps)
20 7.5A Back-up lights
21 7.5A Heated outside rearview mirrors
22 10A Outside rearview mirrors
23 15A Cigarette lighter/ 12 V power outlet



Engine compartment fuse box:

Fuse/Relay N°  Rating Functions
1 30A Electric parking brake
2 30A Electric parking brake
3 40A Anti-lock braking system
4 30A Anti-lock braking system
5 - -
6 30A Heated seat
7 30A Starter
8 7.5A Alternator
9 20A Headlamp washer
10 20A Security horn
11 20A Automatic transmission
12 10A Horn
13 20A Sunshade
14 15A Front fog lamps
15 10A Daytime running lamps
16 10A Air conditioner
17 7.5A Engine control unit
18 15A Audio system amplifier
19 40A Radiator fan motor
20 30A Power seat (Driver seat)
21 30A Power seat (Passenger seat)
22 30A IOD
23 30A Air conditioning condenser fan motor
24 7.5A Battery current sensor
25 7.5A Electric Parking brake/Adaptive Cruise Control (ACC)
26 10A Headlamp high-beam (right)
27 10A Headlamp high-beam (left)
28 20A Turbo actuator
29 20A ENG/POWER
30 15A Fuel pump
31 10A Ignition coil
32 20A Injector
33 15A ETV
#1 10A Spare fuse
#2 15A Spare fuse
#3 20A Spare fuse
