Mitsubishi Mirage 2023 Fuse Box Info
Passenger compartment fuse box location:
The fuse box (LHD vehicles) is located at the left side of the steering column at the bottom of the instrument panel, behind the cover. The fuse box (RHD vehicles) is located behind the glove box.

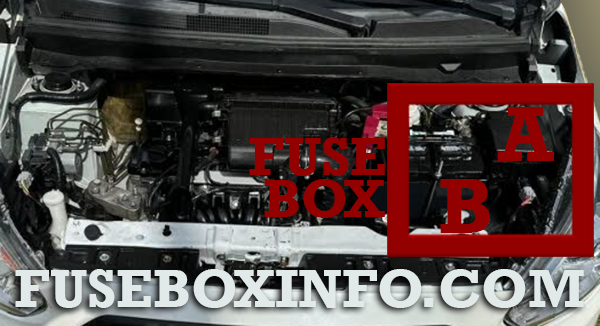

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 7.5A | Tail light (left) |
| 2 | 15A | Cigarette lighter |
| 3 | 10A | Ignition coil |
| 4 | 7.5A | Starter motor |
| 5 | - | - |
| 6 | - | - |
| 7 | 7.5A | Tail light (right) |
| 8 | 7.5A | Outside rearview mirrors |
| 9 | 7.5A | Engine control unit |
| 10 | 7.5A | Control unit |
| 11 | 10A | Rear fog light |
| 12 | 15A | Door lock |
| 13 | 15A | Interior light (Dome light) |
| 14 | 15A | Rear window wiper |
| 15 | 7.5A | Gauges |
| 16 | 7.5A | Relay |
| 17 | 20A | Heated seats |
| 18 | 10A | Option |
| 19 | 7.5A | Heated outside rearview mirrors |
| 20 | 20A | Windshield wiper |
| 21 | 7.5A | Back-up light |
| 22 | 30A | Defogger |
| 23 | 30A | Heater |
| 24 | - | - |
| 25 | 10A | Radio |
| 26 | 15A | Electronic controlled unit |
Engine compartment fuse box A:
| Fuse/Relay N° | Rating | Functions |
| SBF1 | 40A | Radiator fan motor |
| SBF2 | 30A | Anti-lock braking system |
| SBF3 | 40A | Ignition switch |
| SBF4 | 40A | Power window control |
| BF1 | 30A | DC-DC (P/T) |
| BF2 | 30A | DC-DC (AUDIO) |
| 1 | 10A | Headlight low beam (left) |
| 2 | 10A | Headlight low beam (right) |
| 3 | 10A | Headlight high beam (left) |
| 4 | 10A | Headlight high beam (right) |
| 5 | 10A | Horn |
| 6 | 15A | Front fog lamps |
| 7 | 10A | Daytime running lights |
| 8 | - | - |
| 9 | - | - |
| 10 | 7.5A | Battery current sensor |
| 11 | - | - |
| 12 | 15A | Stop lamps (Brake lamps) |
| 13 | 7.5A | Ignition coil |
| 14 | 7.5A | Engine control |
| 15 | 7.5A | Alternator |
| 16 | 10A | Hazard warning flasher |
| 17 | 15A | Automatic transmission |
| 18 | 10A | Air conditioning |
| 19 | 15A | ETV |
| 20 | 7.5A | Starter |
| 21 | 15A | CVT oil/pump |
| 22 | 15A | Fuel pump |
| 23 | 20A | Engine |
| 24 | 7.5A | Automatic transmission |
| #1 | 20A | Spare fuse |
| #2 | 30A | Spare fuse |
Engine compartment fuse box B:
| Fuse/Relay N° | Rating | Functions |
| SBF1 | 40A | PTC heater |
| SBF2 | 40A | PTC heater |
| SBF3 | 40A | PTC heater |
