Mitsubishi Eclipse Cross 2025 Fuse Box Info

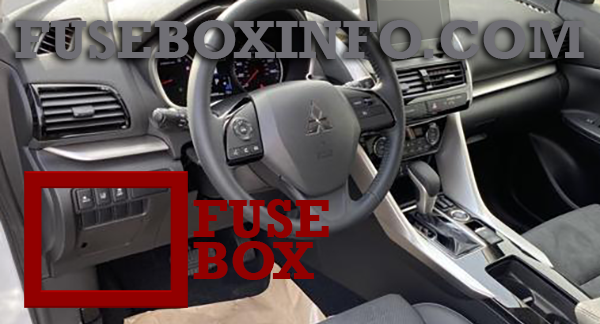

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel, behind the cover.

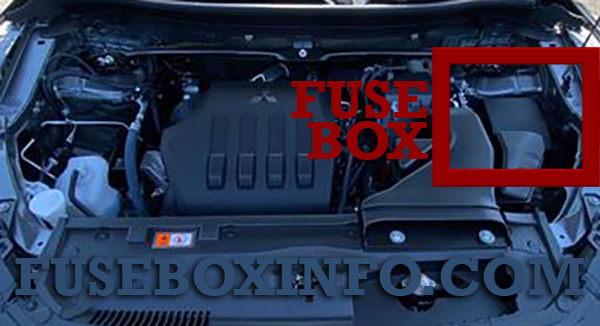

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Power window control |
| 2 | 30A | Defogger |
| 3 | 30A | Heater |
| 4 | 30A | Windshield wipers |
| 5 | 25A | Door locks |
| 6 | - | - |
| 7 | 15A | 12 V power outlet |
| 8 | 15A | Rear window wiper |
| 9 | 20A | Sunroof |
| 10 | 10A | Ignition switch |
| 11 | 10A | Option |
| 12 | 15A | Hazard warning flasher |
| 13 | 10A | 4-wheel drive system |
| 14 | 15A | Stop lamps (Brake lamps) |
| 15 | 10A | Gauges |
| 16 | 7.5A | SRS airbag |
| 17 | 15A | Radio |
| 18 | 7.5A | Control unit relay |
| 19 | 15A | Interior lamps (Room lamps) |
| 20 | 7.5A | Back-up lights |
| 21 | 7.5A | Heated outside rearview mirrors |
| 22 | 10A | Outside rearview mirrors |
| 23 | 15A | Cigarette lighter/ 12 V power outlet |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Electric parking brake |
| 2 | 30A | Electric parking brake |
| 3 | 40A | Anti-lock braking system |
| 4 | 30A | Anti-lock braking system |
| 5 | - | - |
| 6 | 30A | Heated seat |
| 7 | 30A | Starter |
| 8 | 7.5A | Alternator |
| 9 | 20A | Headlamp washer |
| 10 | 20A | Security horn |
| 11 | 20A | Automatic transmission |
| 12 | 10A | Horn |
| 13 | 20A | Sunshade |
| 14 | 15A | Front fog lamps |
| 15 | 10A | Daytime running lamps |
| 16 | 10A | Air conditioner |
| 17 | 7.5A | Engine control unit |
| 18 | 15A | Audio system amplifier |
| 19 | 40A | Radiator fan motor |
| 20 | 30A | Power seat (Driver seat) |
| 21 | 30A | Power seat (Passenger seat) |
| 22 | 30A | IOD |
| 23 | 30A | Air conditioning condenser fan motor |
| 24 | 7.5A | Battery current sensor |
| 25 | 7.5A | Electric Parking brake/Adaptive Cruise Control (ACC) |
| 26 | 10A | Headlamp high-beam (right) |
| 27 | 10A | Headlamp high-beam (left) |
| 28 | 20A | Turbo actuator |
| 29 | 20A | ENG/POWER |
| 30 | 15A | Fuel pump |
| 31 | 10A | Ignition coil |
| 32 | 20A | Injector |
| 33 | 15A | ETV |
| #1 | 10A | Spare fuse |
| #2 | 15A | Spare fuse |
| #3 | 20A | Spare fuse |
