Kia EV5 2026 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the right side of the steering column at the bottom of the instrument panel.
Under hood compartment fuse box location:
Fuse Box Diagram | Layout

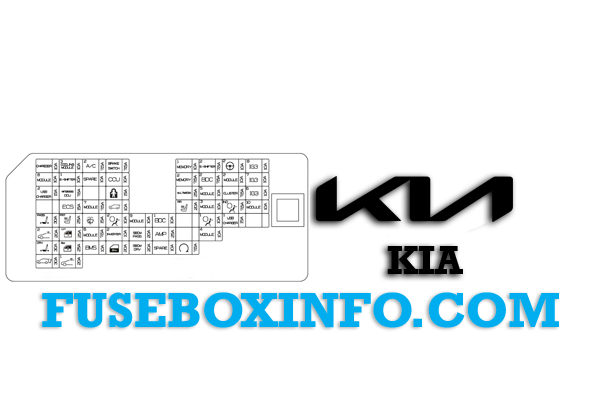

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| CHARGER | 10A | PE_BOX (Charger Door Lock/Unlock Relay) |
| COOLING MODULE3 | 10A | Refrigerant System Driver |
| A/C2 | 7.5A | DATC (Dual Automatic Temperature Control), Front Heater Control |
| BRAKE SWITCH | 7.5A | BDC (Body Domain Controller: ECU), Stop Lamp Switch |
| MEMORY 1 | 10A | CCNC Keyboard, USB Extension, ADAS Unit (Parking), ADP (Acoustic Design Processor), Rear Corner Radar LH/RH, Console Extension |
| E-SHIFTER 2 | 7.5A | SBW (Shift-by-wire) |
| MDPS2 | 10A | R-MDPS |
| IG3 8 | 10A | Front Door Extension(DRIV/PASS), Rear Inverter, Rear EOP(Electric Oil Pump) |
| MODULE 8 | 10A | SAL(Smart Ambient Light) |
| E-SHIFTER1 | 10A | SBW(Shift-by-wire) |
| SPARE | 10A | Not Used |
| CCU | 10A | CCU (Central Communication Unit) |
| MEMORY 2 | 7.5A | ETCS (Electronic Toll Collection System), Cluster, DATC (Dual Automatic Temperature Control), Front Heater Control, Head-Up Display, BDC (Body Domain Controller: ECU), Built In Cam |
| BDC 2 | 7.5A | BDC (Body Domain Controller: ECU) |
| MODULE 2 | 10A | CCU (Central Communication Unit), DCU (Data Connectivity Unit) |
| IG3 7 | 10A | Console Extension, V2L_SIG (Vehicle to Load signal), Rear Door Extension (LH/RH), PTC (Positive Temperature Coefficient) Heater, DATC (Dual Automatic Temperature Control), Front Heater Control, PM_SNSR, INCAR SNSR, CCNC (Connected Car Navigation Cockpit) |
| USB CHARGER2 | 15A | Not Used |
| wireless DCU | 7.5A | DCU (Data Connectivity Unit) |
| RESERVE | 15A | Not Used |
| CHILD LOCK | 15A | Rear LH/RH Door Power Child Lock/Unlock Motor |
| MULTIMEDIA | 25A | CCNC (Connected Car Navigation Cockpit) |
| MODULE 5 | 10A | CDU (Climate Display Unit), Crash Pad (Head Lamp Lever Device Power), ECM (Electronic Chromic Mirror), CCNC (Connected Car Navigation Cockpit), ICC_UNIT (In Cabin Cam_UNIT), Built In Cam, SAL (Smart Ambient Light), ICMU (IN CABIN MONITORING UNIT), Front Seat Extension(DRIV/PASS), AMP (Amplifier), Console Extension, ADP (Acoustic Design Processor), Head Lamp(LH/RH) |
| CLUSTER | 7.5A | Cluster, Head-Up Display |
| IG3 6 | 10A | CCU (Central Communication Unit) |
| RESERVE | 20A | Not Used |
| ECS | 15A | ECS (Electronic Control Suspension) |
| MODULE 7 | 7.5A | Console Extension |
| TAILGATE OPEN |
10A | TAILGATE LATCH |
| S/HEATER RR | 20A | Rear Seat LH |
| MODULE 3 | 10A | M_F_SW (WASHER) |
| A/BAG IND | 7.5A | OHCL (Over Head Console Lamp) |
| MODULE 10 | 10A | BDC (Body Domain Controller), CCNC (Connected Car Navigation Cockpit), CCU (Central Communication Unit), CCNC Keyboard, DCU (Data Connectivity Unit), Built In Cam, AMP (Amplifier), ADP (Acoustic Design Processor), ADAS Unit (Parking), PE_BOX (Power Outlet Relay) |
| P/SEAT PASS | 30A | Front Seat Extenstion (PASS) |
| S/HEATER FRT | 25A | Front Seat Extenstion (DRIV) |
| WASHER | 15A | M_F_SW (WASHER) |
| AIR BAG 2 | 10A | ISCM (INTEGRATED SAFETY CONTROL MODULE) |
| MODULE 9 | 10A | ICC_UNIT (In Cabin Cam_UNIT), OHCL (Over Head Console Lamp), Personal Lamp, Room Lamp, Sun Visor SW, Front Seat Extension(DRIV/PASS), PTGM (Power Tail Gate Module), ICMU (IN CABIN MONITORING UNIT), Console Extension, Front Door Extension, Front Door Outside Handle(DRIV/PASS) |
| BDC1 | 10A | BDC (Body Domain Controller) |
| RESERVE | 7.5A | Not Used |
| AIR BAG 1 | 10A | ISCM (INTEGRATED SAFETY CONTROL MODULE), ODS (Occupant Detection System) |
| USB CHARGER1 | 15A | Front Seat Extension(DRIV/PASS), USB Extension |
| RESERVE | 10A | Not Used |
| SUNROOF2 | 20A | Sunroof Motor |
| P/WINDOW LH | 25A | Power Window SW_Manual-REAR LH, Power Window Safety ECU-REAR LH, Rear Door Extention(LH), Power Window Safety ECU-DRIV(LHD), Front Door Extension-PASS(RHD), Power Window Safety ECU-PASS(RHD) |
| MODULE 6 | 7.5A | BDC (Body Domain Controller) |
| INVERTER2 | 10A | Rear Inverter |
| SBCM PASS | 20A | Passenger Side Body zone Control Module |
| AMP | 25A | AMP (Amplifier) |
| RESERVE | 20A | Not Used |
| MODULE 4 | 10A | ADAS Driving ECU, Front View Camera, ECS (Electronic Control Suspension), Rear Corner Radar(LH/RH), ADAS Unit (Parking), Rear Inverter, Front Corner Radar, Front Radar |
| P/SEAT DRV | 30A | Front Seat Extension(DRIV) |
| P/WINDOW RH | 25A | Power Window SW_Manual-REAR RH, Power Window Safety ECU-REAR RH, Rear Door Extention(RH), Power Window Safety ECU-DRIV(RHD), Front Door Extension-PASS(LHD), Power Window Safety ECU-PASS(LHD) |
| BMS | 10A | BMS (Battery Management System) |
| DOOR LOCK | 20A | Driver/Passenger Door Latch Motor, Rear Door Latch Motor |
| SBCM DRV | 20A | Driver Side Body zone Control Module |
| SPARE | 10A | Not Used |
| START | 7.5A | VPC (Vehicle Platform Controller), BDC (Body Domain Controller) |
| POWER TAILGATE |
30A | Power Tailgate Motor |
| SUNROOF1 | 20A | Sunroof Motor |

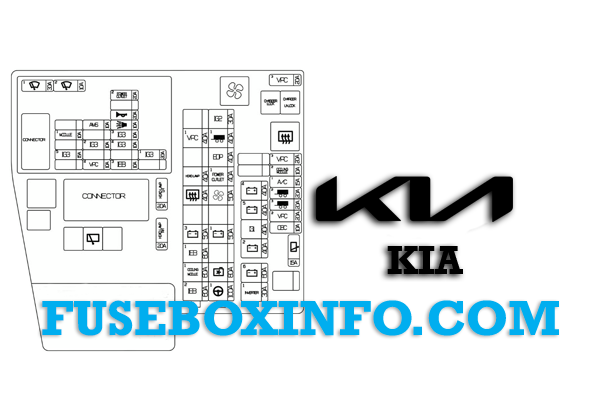

Under hood compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS1 | 100A | MDPS Unit (Motor Driven Power Steering Unit) |
| COOLING FAN | 80A | Cooling Fan Motor |
| SPARE | 50A | Not Used |
| B+1 | 50A | PDC Junction Block (IPS1,IPS2,IPS3,IPS4,IPS5,IPS6,IPS7) |
| SPARE | 50A | Not Used |
| BLOWER | 50A | Blower Relay |
| POWER OUTLET1 | 40A | Power Outlet Relay |
| EOP | 40A | Rear EOP (Electric Oil Pump) |
| TRAILER1 | 40A | TRAILER |
| IG2 | 30A | PCB Block (IG2 Relay) |
| IEB2 | 60A | IEB_UNIT (Intergrated Electronic Brake) |
| COOLING MODULE1 | 60A | Coolant Driver |
| IEB1 | 60A | IEB_UNIT (Intergrated Electronic Brake) |
| B+3 | 50A | PDC Junction Block (Fuse: CHARGE, POWER TAILGATE, P/SEAT DRIV, P/SEAT PASS, SUNROOF1, SUNROOF2, S/HEATER FRT, COOLING MODULE3, P/WINDOW RH, P/WINDOW LH, ECS, WIRELESS DCU, E-SHIFTER1, USB CHARGER2, MODULE8) |
| SPARE | 50A | Not Used |
| REAR HEATED | 40A | Rear Heated Relay |
| HEAD LAMP | 40A | PE_BOX (Fuse: HEAD LAMP LH, HEAD LAMP RH) |
| SPARE | 40A | Not Used |
| VPC1 | 40A | VPC (Vehicle Platform Controller) |
| SPARE | 30A | Not Used |
| VPC3 | 20A | VPC (Vehicle Platform Controller) |
| COOLING MODULE2 | 10A | Refrigerant System Driver |
| A/C1 | 15A | DATC (Dual Automatic Temperature Control) |
| TRAILER2 | 20A | TRAILER |
| TRAILER3 | 20A | TRAILER |
| VPC2 | 20A | VPC (Vehicle Platform Controller) |
| OBC | 10A | VCMS(Vehicle Charging Managemaent System), ICCU SIGNAL |
| SPARE | 20A | Not Used |
| SPARE | 20A | Not Used |
| IG3 9 | 10A | BMS (Battery Management System) |
| WIPER RR | 15A | Rear Wiper |
| HEAD LAMP LH | 20A | Head Lamp Module LH |
| HEAD LAMP RH | 20A | Head Lamp Module RH |
| B+4 | 40A | PDC Junction Block (Long Term Latch Relay, IPS13, Fuse: MULTIMEDIA, MEMORY1, MEMORY2, CHILD LOCK, BRAKE SW, MODULE9, CCU, SBCM DRV, SBCM PASS, DR LOCK, TAILGATE OPEN) |
| B+5 | 40A | PDC Junction Block (Fuse: AMP, BDC, A/BAG2, INVERTER2, BMS S/HEATER RR) |
| IG1 | 40A | PCB Block (IG1 Relay, ACC Relay) |
| B+2 | 40A | PDC Junction Block (IPS8,IPS9,IPS11,IPS12) |
| B+6 | 60A | PDC Junction Block (IG3 Relay, Fuse: HORN, B/ALARM HORN) |
| INVERTER1 | 30A | Front Inverter |
| SPARE | 60A | Not Used |
| IG3 1 | 20A | PDC Junction Block (IG3_6, IG3_7, IG3_8) |
| IG3 2 | 10A | E-COMP, VCMS(Vehicle Charging Managemaent System) |
| SPARE | 15A | Not Used |
| IG3 3 | 10A | Front Inverter, ICCU Signal, Coolant Driver, VPC, PE_BOX(IG3_9) |
| IG3 4 | 10A | Refrigerant System Driver |
| SPARE | 15A | Not Used |
| IG3 5 | 15A | Cooling Fan |
| AMS | 10A | Battery Sensor |
| MODULE1 | 10A | CDM(Charger Door Module) |
| SPARE | 20A | Not Used |
| HORN | 20A | HORN |
| B/ALARM HORN | 10A | B/ALARM HORN |
| WIPER1 | 30A | PCB Block (Wiper Main Relay) |
| WIPER2 | 10A | Front Wiper |
| POWER OUTLET2 | 20A | USB Extension |
| SPARE | 10A | Not Used |
| VPC4 | 10A | VPC (Vehicle Platform Controller) |
| SPARE | 10A | Not Used |
| SPARE | 15A | Not Used |
| IEB3 | 10A | IEB_UNIT (Intergrated Electronic Brake) |
| SPARE | 10A | Not Used |
| SPARE | 10A | Not Used |
| Battery Fuse Panel | ||
| LDC | 225A | LDC |
