Kia Sonet 2024 Fuse Box Info
Passenger compartment fuse box location:

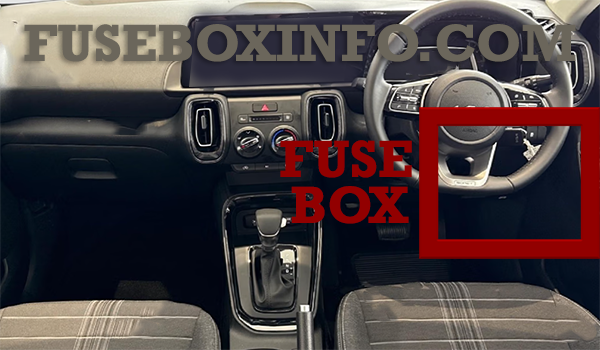

The fuse box is located at the right side of the steering column at the bottom of the instrument panel (RHD). The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD).

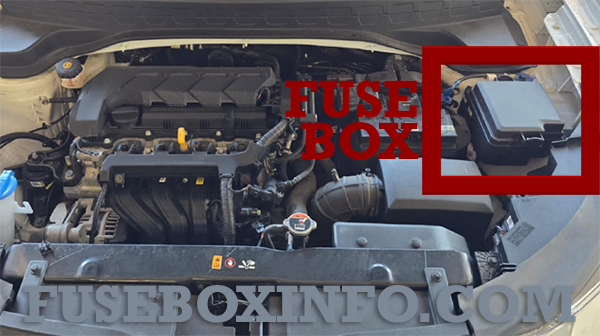

Engine compartment fuse box location:
Fuse Box Diagram | Layout

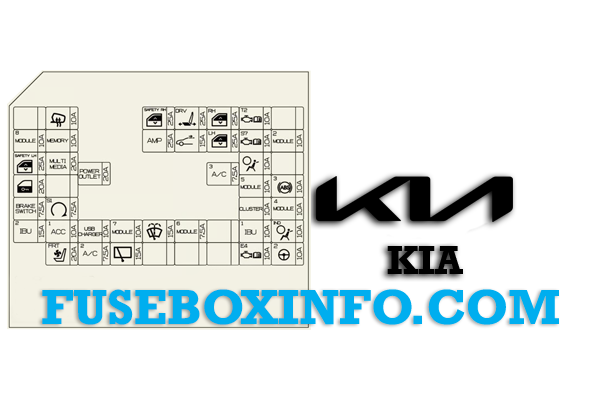

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| HEATED MIRROR | 10A | Rear HEATED MIRROR, ECU |
| SAFETY P/WINDOW RH | 25A | SAFETY P/WINDOW |
| POWER SEAT | 25A | SEAT EXTN ECU |
| P/WINDOW RH | 25A | POWER WINDOW MOTOR |
| TCU2 | 10A | DCT (Dual Clutch Transmission)/ECLUTCH/TCU (Transmission Control Unit), S_MODE_SW/ATM_LEVER, INHIBITOR SW |
| MODULE8 | 10A | MUT/VDMS/MOOD_LAMP_UNIT |
| MEMORY | 10A | CLUSTER, FATC, MTC |
| AMP | 25A | EXT. AMP (Amplifier) |
| SUNROOF | 15A | SUNROOF MOTOR |
| P/WINDOW LH | 25A | POWER WINDOW MOTOR |
| SENSOR7 | 10A | FUEL_WATER_SNSR, GLOW_RLY_UNIT |
| MODULE2 | 10A | O/S MIRR SW, AMP (Amplifier), IBU (Integrated Body Control Unit), AUDIO |
| SAFETY P/WINDOW LH | 25A | SAFETY P/WINDOW ECU |
| MULTIMEDIA | 20A | AUDIO |
| AIR BAG | 10A | ACU |
| POWER OUTLET | 20A | POWER OUTLET |
| A/C3 | 7.5A | MTC,FATC,ECU |
| DOOR LOCK | 20A | DOOR ACTUATOR |
| MODULE5 | 10A | AT_LEVER_IND, HLLD, SEAT_EXTN_DRV, AUDIO, AMP (Amplifier), MTC/FATC, ECM_MIRR, WIRELESS CHARGER |
| ABS3 | 10A | ABS (ANTI-LOCK BRAKE SYSTEM) |
| BRAKE SWITCH | 7.5A | STOP SWITCH |
| START1 | 7.5A | START Relay |
| CLUSTER | 10A | CLUSTER |
| MODULE4 | 10A | RPAS, C_PAD_SW(ESC SW) |
| IBU2 | 15A | IBU (INTEGRATED BODY CONTROL UNIT) |
| ACC1 | 10A | AMP (Amplifier), O_S_MIRR_SW, AUDIO/AVN, IBU (Integrated Body Control Unit) (BCM (Body Control Module)), VDMS, REAR USB, USB_CHARGER |
| USB CHARGER | 10A | USB CHARGER |
| MODULE7 | 10A | MULTI FUNCTION SWITCH |
| WASHER | 15A | M/F(WASHER PWR) |
| MODULE6 | 7.5A | IBU (INTEGRATED BODY CONTROL UNIT) |
| IBU1 | 10A | IBU (INTEGRATED BODY CONTROL UNIT) |
| A/BAG IND | 10A | CLUSTER |
| SEAT VENT | 20A | SEAT EXTN ECU |
| A/C2 | 7.5A | MTC, FATC, ECU |
| WIPER RR | 15A | REAR WIPER MOTOR |
| ECU4 | 10A | ECU |
| MDPS2 | 10A | MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering) |

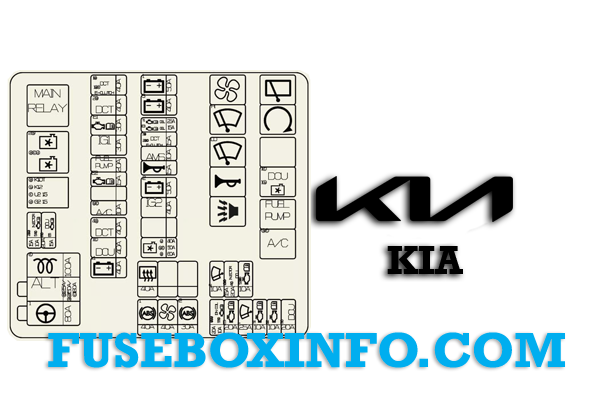

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| Fuses | ||
| MAIN FUSE (ALT+MDPS+GLOW) | 150+80A | ALT+MDPS+GLOW |
| ABS1 | 40A | ABS (Anti-lock Brake System) |
| ABS2 | 30A | ABS (Anti-lock Brake System) |
| REAR HEATED | 40A | REAR HEATED |
| BLOWER | 40A | BLOWER |
| B+1 | 50A | HEAD LP, TURN SIG LP, EXT TAIL LP, DRL (Daytime Running Light), BRAKE LP, FOG, LP |
| B+2 | 50A | HEAD LP, TURN SIG LP, EXT TAIL LP, DRL (Daytime Running Light), BRAKE LP |
| B+3 | 40A | MULTIMEDIA, HEATER, CLUSTER, BRAKE SW, IBU (Integrated Body Control Unit), DOOR LOCK, SEAT VENT |
| B+4 | 40A | S/ROOF, P/WDW, AMP (Amplifier) |
| IG1 | 30A | AIR BAG, MDPS (Motor Driven Power Steering), CLUSTER, IBU (Integrated Body Control Unit), ECU, TCU (Transmission Control Unit), SENSOR, ABS (Anti-lock Brake System) |
| A/C1 | 10A | A/CON |
| COOLING FAN |
[Smartstream G1.5] 40A [(Petrol) 1.0 T-GDi] 60A |
GSL |
| DCU1 | 40A | DCU, ECU |
| IG2 | 40A | START |
| FUEL PUMP | 20A | FUEL PUMP |
| ECU2 | 15A | ECU |
| ECU3/TCU | 15A | ECU3 |
| DCT3/E-CLUTCH2 | 15A | [(Petrol) 1.0 T-GDi] DCT (Dual Clutch Transmission), ECLUTCH |
| AMS | 10A | AMS |
| ECU1 | 30A | ECU |
| SNSR5/IG-COIL | 20A | IG-COIL |
| INJECTOR1/DCU4 | 15A | INJECTOR |
| SNSR4/INJECTOR2 | 15A | [Smartstream G1.5] INJECTOR2 |
| ECU6 | 20A/15A | ECU |
| ECU5 | 20A | ECU |
| SNSR1 | 10A | SENSOR |
| SNSR2 | 10A | SENSOR |
| SNSR3 | 10A | SNSR3 |
| WIPER FRT2 | 10A | WIPER |
| HORN | 15A | HORN |
| DCT1/E-CLUTCH1 | 40A | DCT ECU or E-CLUTCH ECU |
| DCT2 | 40A | DCT (Dual Clutch Transmission) |
| DCT4 | 40A | DCT (Dual Clutch Transmission) |
| WIPER FRT1 | 25A | WIPER |
| DCU3 | 20A | DCU3, ECU |
| Relays | ||
| BLOWER | 35A | BLOWER MOTOR, ICU |
| A/CON | 20A | A/CON, ECU |
| C/FAN | 35A | COOLING FAN, ECU or DCU ECU |
| START | 35A | START SOLENOID, ECU |
| FUEL PUMP | 20A | FUEL PUMP, ECU |
| MAIN | 30A | ECU, PCU, TCU (Transmission Control Unit), SENSOR |
| FRT WIPER HIGH | 35A | WIPER MOTOR |
| FRT WIPER LOW | 35A | WIPER MOTOR |
| RR WIPER | 20A | REAR WIPER MOTOR |
| HORN | 20A | HORN Left Handle side/Right Handle side |
| B/HORN | 20A | BURGLAR ALARM HORN |
