Kia Picanto 2026 Fuse Box Info

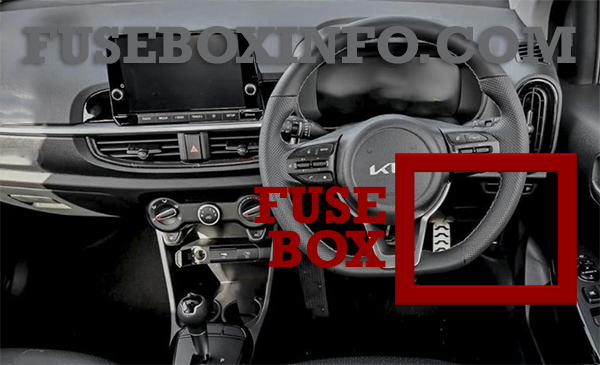

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel (LHD). The fuse box is located at the right side of the steering column at the bottom of the instrument panel (RHD).

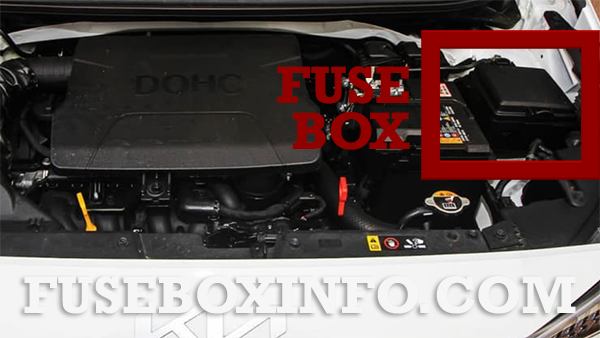

Engine compartment fuse box location:
Fuse Box Diagram | Layout

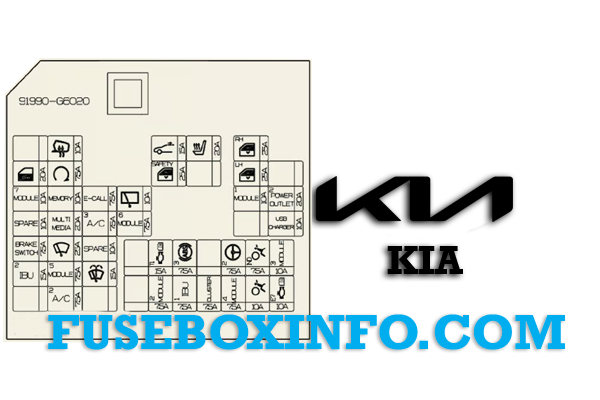

Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| RESERVE | - | - |
| HEATED MIRROR | 10A | ECU, OUTSIDE MIRROR, MTC, FATC |
| SUNROOF | 15A | SUNROOF |
| S/HEATER FRT | 20A | FRT SEAT DRV, FRT SEAT PASS |
| P/WINDOW RH | 25A | POWER WINDOW RH |
| SAFETY P/WINDOW | 25A | SAFETY P/WINDOW ECU |
| RESERVE | - | - |
| DOOR LOCK | 20A | DOOR LOCK ACTR, TAIL GATE UNLOCK ACTR |
| START | 7.5A | START RLY |
| P/WINDOW LH | 25A | POWER WINDOW LH |
| RESERVE | - | - |
| MODULE 7 | 10A | OBD, TELE UNIT, ICC UNIT |
| MEMORY | 10A | MTC, FATC, CLUSTER, PHOTO SENSOR |
| E-CALL | 7.5A | E-CALL |
| WIPER RR | 10A | REAR WIPER MOTOR |
| MODULE 1 | 10A | E-CALL BUTTON, OUTSIDE MIRROR SWITCH, E-CALL LOW DC-DC CONVERTER, AUDIO, IBU |
| POWER OUTLET 2 | 20A | POWER OUTLET |
| SPARE | 10A | - |
| MULTIMIDIA | 20A | LOW DC-DC CONVERTER, AUDIO |
| A/C 3 | 7.5A | FATC |
| MODULE 6 | 7.5A | FRT SEAT DRV, FRT SEAT PASS |
| RESERVE | - | - |
| USB CHARGER | 10A | FRT USB CHARGER RR USB CHARGER |
| BRAKE SWITCH | 7.5A | BRAKE SW, IBU |
| WIPER FRT | 25A | FRT WIPER MOTOR |
| SPARE | 10A | - |
| RESERVE | - | - |
| TCU 1 | 15A | SPEED SENSOR, INHIBIT SW, AMT ECU, AMT SHIFT |
| ABS 3 | 7.5A | ABS UNIT, ESC UNIT, EPB UNIT |
| RESERVE | - | - |
| MDPS 2 | 7.5A | MDPS |
| A/BAG IND | 7.5A | CLUSTER, MTC, FATC |
| MODULE 3 | 10A | FRT RADAR, C PAD SW, EPB SW, IBU, RR CONER RADAR FRT CAMERA |
| IBU 2 | 15A | IBU |
| MODULE 5 | 7.5A | IBU |
| WASHER | 15A | M_F_SW(WASHER MTR) |
| RESERVE | - | - |
| A/C 2 | 7.5A | MTC, FATC, DUAL SW, BLOWER RLY, PTC RLY |
| RESERVE | - | - |
| RESERVE | - | - |
| MODULE 2 | 7.5A | BRAKE SW |
| IBU 1 | 7.5A | IBU |
| CLUSTER | 7.5A | CLUSTER |
| MODULE 4 | 7.5A | OBD, E-CALL, AUDIO, MTC, FATC, LOW DC-DC CONVERTER AMT SHIFT LEVER IND, HLLD, ROOM MIRROR, FRT SEAT DRV, FRT SEAT PASS, CONSOLE SW, ICC UNIT |
| AIR BAG | 10A | ACU |
| ECU 7 | 10A | ECU |

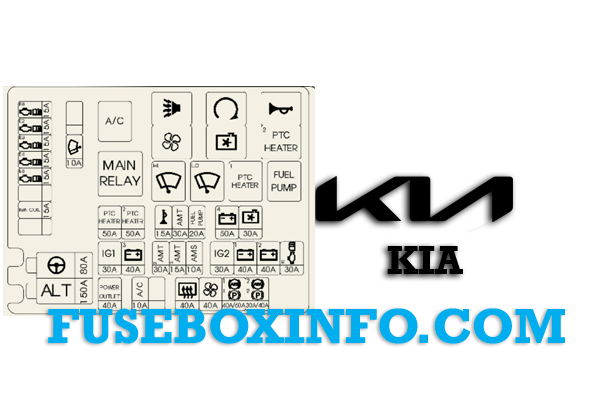

Engine compartment fuse box (EURO 7):
| Fuse/Relay Name | Rating | Functions |
| ALT | 150A | MPI ENG(NON-ISG : 125A, ISG : 150A), GDI ENG(150A) |
| MDPS | 80A | MDPS |
| PTC1 | 50A | MPI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6), GDI ENG(PTC1) |
| PTC2 | 50A | MPI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12), GDI ENG(PTC2) |
| B+4 | 50A | ICU(PWINDOW RLY, FUSE : SAFETY P/WINDOW, SUNROOF, P/WINDOW LH, P/WINDOW RH, SEAT HEATER FRT) |
| C/FAN | 30A | COOLING FAN |
| RR HTD | 40A | REAR GLASS HEATED |
| BLOWER | 40A | BLOWER MOTOR |
| ABS1/EPB1 | 40/60A | ABS UNIT, ESC UNIT, EPB UNIT |
| ABS2/EPB2 | 30/40A | ABS UNIT, ESC UNIT, EPB UNIT |
| IG1 | 30A | ICU(FUSE : USB CHARGER, MODULE1, AIR BAG, MDPS2, CLUSTER, MODULE2, MODULE3, MODULE4, IBU1, A/BAG IND, ECU7, TCU, ABS3) |
| B+3 | 40A | ICU(LATCH RLY, FUSE : MULTI MEDIA, MEMORY, E-CALL) |
| IG2 | 30A | START MOTOR, B/ALARM RLY, ICU(FUSE: WIPER FRT, WASHER, WIPER RR, A/C2, MODULE5, MODULE6, START) |
| B+1 | 40A | MPI ENG(AMT_ECU), GDI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6) |
| B+2 | 40A | MPI ENG(AMT_ECU), GDI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12) |
| ECU1 | 30A | MAIN RLY(ECU PWR ETC), FUSE : ECU2, ECU3 |
| P/OUTLET1 | 40A | POWER OUTLET |
| HORN | 15A | HORN, B/A HORN |
| AMT1 | 30A | GDI(AMT ECU) |
| F/PUMP | 20A | FUEL PUMP |
| AMT2 | 30A | GDI(AMT ECU) |
| AMT3 | 15A | AMT ECU |
| AMS | 10A | BATT SENSOR |
| A/CON | 10A | A/C COMPRESSOR |
| WIPER | 10A | ECU, IBU |
| ECU2 | 15A | ECU |
| ECU3 | 15A | ECU |
| ECU4 | 15A | ENG SENSOR |
| ECU5 | 15A | ECU, INJECTOR |
| IGN COIL | 15A | IGNITION COIL |

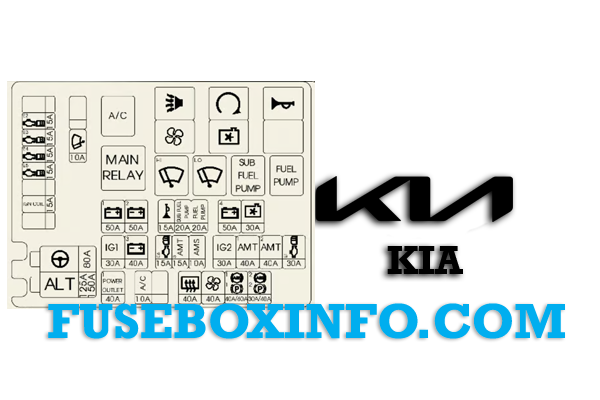

Engine compartment fuse box (except EURO 7):
| Fuse/Relay Name | Rating | Functions |
| ALT | 125/150A | MPI ENG(NON-ISG : 125A, ISG : 150A), GDI ENG(150A) |
| MDPS | 80A | MDPS |
| B+1 | 50A | MPI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6), GDI ENG(PTC1) |
| B+2 | 50A | MPI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12), GDI ENG(PTC2) |
| B+4 | 50A | ICU(PWINDOW RLY, FUSE : SAFETY P/WINDOW, SUNROOF, P/WINDOW LH, P/WINDOW RH, SEAT HEATER FRT) |
| C/FAN | 30A | COOLING FAN |
| RR HTD | 40A | REAR GLASS HEATED |
| BLOWER | 40A | BLOWER MOTOR |
| ABS1/EPB1 | 40/60A | ABS UNIT, ESC UNIT, EPB UNIT |
| ABS2/EPB2 | 30/40A | ABS UNIT, ESC UNIT, EPB UNIT |
| IG1 | 30A | ICU(FUSE : USB CHARGER, MODULE1, AIR BAG, MDPS2, CLUSTER, MODULE2, MODULE3, MODULE4, IBU1, A/BAG IND, ECU7, TCU, ABS3) |
| B+3 | 40A | ICU(LATCH RLY, FUSE : MULTI MEDIA, MEMORY, E-CALL) |
| IG2 | 30A | START MOTOR, B/ALARM RLY, ICU(FUSE: WIPER FRT, WASHER, WIPER RR, A/C2, MODULE5, MODULE6, START) |
| AMT1 | 40A | MPI ENG(AMT_ECU), GDI ENG(ICU : IPS1, IPS2, IPS3, IPS4, IPS6) |
| AMT2 | 40A | MPI ENG(AMT_ECU), GDI ENG(ICU : IPS7, IPS8, IPS9, IPS10, IPS12) |
| ECU1 | 30A | MAIN RLY(ECU PWR ETC), FUSE : ECU2, ECU3 |
| P/OUTLET1 | 40A | POWER OUTLET |
| HORN | 15A | HORN, B/A HORN |
| SUB F_PUMP | 20A | FFV(SUB FUEL PUMP) |
| F/PUMP | 20A | FUEL PUMP |
| ECU6 | 15A | MPI(ECU) |
| AMT3 | 15A | AMT ECU |
| AMS | 10A | BATT SENSOR |
| A/CON | 10A | A/C COMPRESSOR |
| WIPER | 10A | ECU, IBU |
| ECU2 | 15A | ECU |
| ECU3 | 15A | ECU |
| ECU4 | 15A | ENG SENSOR |
| ECU5 | 15A | ECU, INJECTOR |
| IGN COIL | 15A | IGNITION COIL |
