Kia Sportage 2012 Fuse Box Info

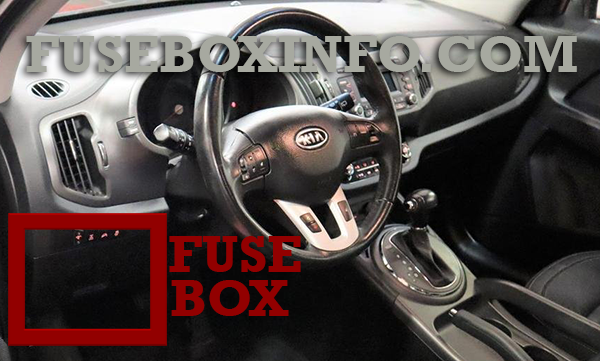

Fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

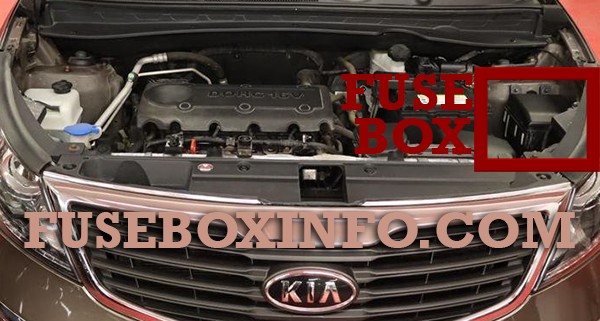

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER CONNECTOR AUDIO | 20A | Audio |
| POWER CONNECTOR RF_ANT | 7.5A | RF Receiver |
| A/BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor, Telltale & SBR Lamp |
| S/HEATER FRT | 15A | Driver/Passenger Seat Warmer Switch |
| S/HEATER RR | 15A | Rear Seat Warmer LH/RH |
| A/CON | 7.5A | A/C Control Module (Auto) |
| HTD MIRR | 7.5A | A/C Control Module, Driver/Passenger Power Outside Mirror |
| CLUSTER | 10A | Driver/Passenger Seat Warmer Switch, Driver CCS Control Module, Instrument Cluster, Tire Pressure Monitoring Module, Audio, Alternator, BCM, A/C Control Module, Telltale & SBR Lamp |
| IG2 A | 10A | BCM, Smart Key Control Module, IPS Control Module (IG2) |
| WIPER RR | 15A | Rear Wiper Motor, Multifunction Switch (Wiper), ICM Relay Box (Rear Wiper Relay) |
| IG2 B | 10A | Cluster Ionizer, A/C Control Module, Rain Sensor, Sunroof Motor, Electro Chromic Mirror, E/R Fuse & Relay Box (Blower Relay) |
| POWER OUTLET 2 | 20A | Rear Power Outlet, Front Power Outlet LH, Front Cigarette Lighter |
| A/BAG IND | 10A | Instrument Cluster (A/Bag IND.) |
| SMART KEY 2 | 10A | Smart Key Control Module |
| WIPER FRT | 25A | Front Wiper Motor, Multifunction Switch (Wiper), E/R Fuse & Relay Box (Front Wiper (Low) Relay, Wiper (Rain Sensor) Relay) |
| POWER OUTLET 1 | 15A | Front Power Outlet RH |
| SMART KEY 1 | 10A | BCM, Smart Key Control Module |
| ACC | 10A | Audio, Amp, Sunroof Control Module, Power Outside Mirror Switch |
| START | 10A | Burglar Alarm Relay (With Burglar Alarm), E/R Fuse & Relay Box (Start Relay : W/O Burglar Alarm & Smart Key), Smart Key Control Module (W/O Burglar Alarm & With Smart Key) |
| MODULE IG1 | 10A | EPS Control Module, ATM Shift Lever ILL., 4WD ECM, Stop Lamp Switch, IPS Control Module (IG1) |
| UH_BOX | 20A | E/R Fuse & Relay Box (ECU 2 7.5A, ABS 7.5A, TCU 2 7.5A) |
| ROOM LP | 10A | BCM, Map Lamp, Room Lamp, Driver/Passenger Vanity Lamp, Electro Chromic Mirror, Luggage Lamp, Ignition Key ILL. & Door Warning Switch, Tire Pressure Monitoring Module, Instrument Cluster (MCU, IND.), A/C Control Module, IPS Control Module (B+) |
| PDM B | 10A | Start/Stop Button Switch, FOB Holder, Smart Key Control Module |
| DR LOCK | 15A | Door Lock Relay, Door Unlock Relay, Tail Gate Relay, ICM Relay Box (Two Turn Unlock Relay) |
| HAZARD | 15A | BCM |
| FOG LP RR | 10A | (Not Used) |
| PDM A | 25A | Smart Key Control Module |
| ATM K/LOCK | 7.5A | ATM Shift Lever, Key Solenoid |
| CORNERING LAMP | 10A | (Not Used) |
| SEAT VENT | 15A | Driver CCS Seat Warmer |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| P/WDW LH | 25A | Rear Power Window Switch LH, Power Window Main Switch |
| SAFETY POWER WINDOW | 20A | Driver Safety Power Window Module |
| P/SEAT(DRV) | 20A | Driver Seat Manual Switch |
| MODULE B+ | 10A | Multipurpose Check Connector, Data Link Connector, Driver CCS Switch, Rear Parking Assist Buzzer |
| SUNROOF | 15A | Sunroof Motor, Sunroof Control Module |
| AMP | 25A | Amp |
| HTD_STRG | 15A | Heated steering wheel |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | EPS Control Module |
| B+1 | 60A | I/P Junction Box (PDM A 25A, DR LOCK 15A, HAZARD 15A, IPS 4~7) |
| ABS 2 | 40A | ESC Module |
| EMS | 40A | EMS Box (TCU 1 15A, ECU 30A, A/CON 10A, F/PUMP 15A) |
| ABS 1 | 40A | ESC Module |
| BLOWER | 40A | Blower Relay |
| B+3 | 60A |
I/P Junction Box (P/SEAT(DRV) 20A, SAFETY POWER WINDOW 20A, PDM B 10A, ATM K/LOCK 7.5A, SEAT VENT 15A, Power Connector (AUDIO 20A, RF_ANT 7.5A), ROOM LP 10A) |
| B+2 | 60A |
I/P Junction Box (Power Window Relay, SUNROOF 15A, AMP 25A, MODULE B+ 10A, IPS 0~3, IPS 8~10) |
| C/FAN (MPI engine) | 40A | Cooling Fan (High) Relay, Cooling Fan (Low) Relay |
| C/FAN (T-GDI engine) | 50A | Cooling Fan (High) Relay, Cooling Fan (Low) Relay |
| RR HTD | 40A | Rear Defogger Relay |
| IG 1 | 30A | PDM Relay Box (IGN1/ACC Relay : With Smart Key), Ignition Switch (W/O Smart Key) |
| IG 2 | 40A | PDM Relay Box (IGN2 Relay : With Smart Key), Ignition Switch (W/O Smart Key) |
| HORN | 15A | Horn Relay |
| DEICER | 15A | Front Wiper Deicer Relay |
| STOP LP | 10A | Stop Lamp Switch, Smart Key Control Module, ICM Relay Box (DBC Relay) |
| 4WD | 20A | 4WD ECM |
| AMS | 10A | Battery Sensor |
| TCU 2 (MPI engine) | 7.5A | Transaxle Range Switch |
| TCU 2 (T-GDI engine) | 7.5A | Transaxle Range Switch, Vacuum Switch, Vacuum Pump Relay |
| ABS | 7.5A | ESC Module, ICM Relay Box (DBC Relay), Multi Switch |
| ECU 2 | 7.5A | ATM P/N Relay, PCM, Multifunction Switch (Remote Control) |
| V_PUMP (T-GDI engine) | 20A | Vacuum Pump Relay |
| F/PUMP | 15A | Fuel Pump Relay |
| SENSOR 4 | 15A | Fuel Pump Relay, PCM, Oxygen Sensor (Up)/(Down), E/R Fuse & Relay Box (Cooling Fan (High)/(Low) Relay) |
| SENSOR 3 | 10A | A/CON Relay, Injector #1~#4 |
| SENSOR 2 | 10A | (Not Used) |
| TCU 1 | 15A | PCM |
| A/CON | 10A | A/CON Relay |
| SENSOR 1 (MPI engine) | 10A | Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve |
| SENSOR 1 (T-GDI engine) | 10A | Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2Canister Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, RCV |
| ECU 1 | 20A | Ignition Coil #1~#4, Condenser |
| ECU | 30A | Engine Control Relay |
