Kia Telluride 2027 Fuse Box Info

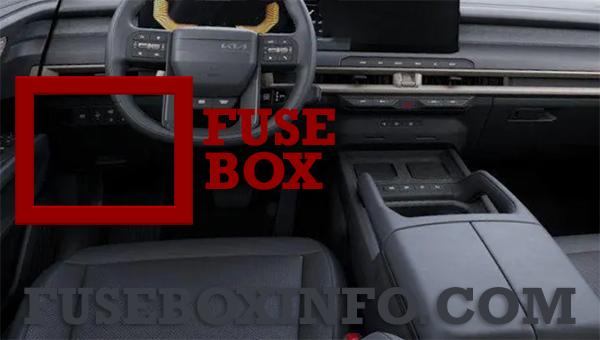

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

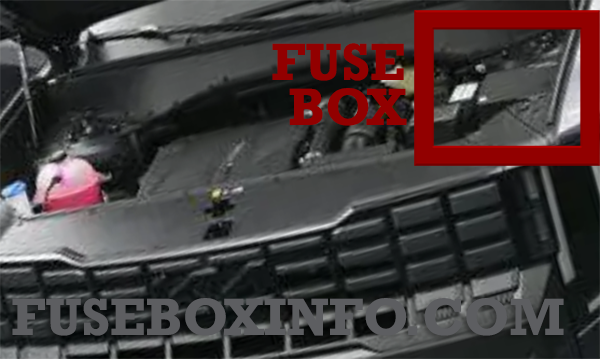

Engine compartment fuse box location:

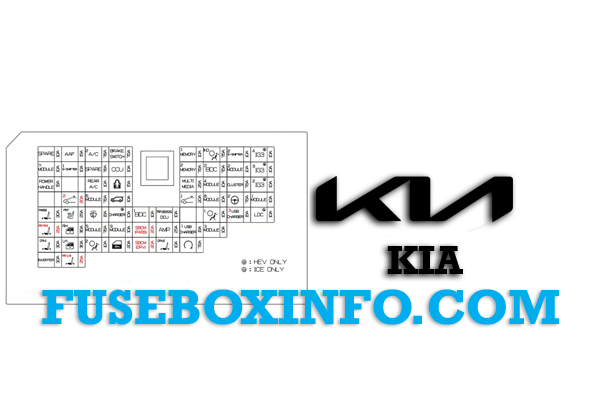

Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| SPARE | 10A | SPARE |
| AAF | 15A | AAF (Active Air Flap) |
| A/C2 | 7.5A | ATCU (Air Temperature Control), ATCU Controller, INCAR SENSOR, PTC HEATER 1,2 Relay Coil, E-Compressor (HEV) |
| BRAKE SW | 7.5A | BDC (Body Domain Controller), Stop Lamp Switch |
| MEMORY1 | 10A | SAL (Smart Ambient Light), MKBD (Multimedia Keyboard), WPC (Wireless Power Charger), RR_ACON, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), Rear Corner Radar |
| A/BAG IND | 7.5A | PAB IND (Passenger Airbag Indicator) |
| E-SHIFTER2 | 10A | SBW Lever (Shift By Wire Lever) |
| IG3_4 | 10A | V2LC Unit (HEV) V2LC Outlet socket (HEV) |
| MODULE7 | 10A | Multifunction switch, ICC UNIT (In Cabin Camera Unit), SCM (Steering Column Control Module), OBD (On Board Diagnostic), Blower motor Relay Coil, Rain Sensor |
| E-SHIFTER1 | 10A | SBW Lever (Shift By Wire Lever) |
| SPARE | 7.5A | SPARE |
| CCU | 10A | CCU (Communication Central Unit) |
| MEMORY2 | 7.5A | ATCU (Air Temperature Control), ATCU Controller, HUD (Head Up Display), CLUSTER |
| BDC2 | 7.5A | BDC (Body Domain Controller) |
| MODULE2 | 10A | DCU (Data Connectivity Unit), CCU (Communication Central Unit), Stop Lamp Switch |
| IG3_3 | 10A | BMS (Battery Management System) (HEV) |
| POWER HANDLE | 15A | SCM (Steering Column Control Module) |
| RESERVE | 7.5A | Not Used |
| REAR A/C | 10A | RR_ACON |
| CHILD LOCK | 15A | Power Child Lock/Unlock |
| MULTIMEDIA | 25A | ccNC (connected car Navigation Cockpit), ISG LDC 200W (ISG Low voltage DC/DC Converter) |
| MODULE4 | 10A | Inside Mirror ISG LDC 200W (ISG Low voltage DC/DC Converter), ISG LDC 400W (ISG Low voltage DC/DC Converter), OBD (On Board Diagnostic), ccNC (connected car Navigation Cockpit), SAL (Smart Ambient Light), ICC UNIT (In Cabin Camera Unit), ATCU (Air Temperature Control), ATCU Controller, WPC (Wireless Power Charger), 2nd SEAT LH/RH Buckle Indicator External Amplifier (Merdian), 3rd SEAT switch LH/RH, RR_ACON, Drv SEAT, Power seat unit, Trailer Control Module |
| CLUSTER | 7.5A | CLUSTER HUD (Head Up Display) |
| IG3_2 | 10A | CCU (Communication Central Unit) |
| RESERVE | 25A | Not Used |
| SUNROOF2 | 20A | Sunroof motor (Rear) |
| MODULE6 | 7.5A | P_LBM (Parking Lithum Battery Module), AC Inverter Power Outlet, AC Inverter unit, Head Lamp LH/RH |
| TAILGATE OPEN | 10A | Liftgate Latch Actuator |
| SUNROOF1 | 20A | Sunroof motor (Front) |
| MODULE8 | 10A | Multifunction switch, IMS SW (Intergrated Memory Seat Switch), Power window switch, DRV Passenger Seat switch, 2nd Seat switch LH/RH |
| MDPS2 | 7.5A | R-MDPS (Rack-Motor Driven Power Steering) |
| MODULE1 | 10A | ccNC (connected car Navigation Cockpit), ISG LDC 200W (ISG Low voltage DC/DC Converter), ISG LDC 400W (ISG Low voltage DC/DC Converter), DCU (Data Connectivity Unit), MKBD (Multimedia Keyboard), BDC (Body Domain Controller), CCU (Communication Central Unit) |
| P/SEAT PASS1 | 30A | Passenger Power Seat and Lumbar Support |
| S/HEATER FRT | 25A | Driver and Passenger Seat Warmer/Ventilation |
| WASHER | 15A | Washer Motor |
| CHARGER | 10A | V2LC Unit (HEV) |
| BDC1 | 10A | BLE MASTER (Bluetooth Low Energy MASTER), BLE SLAVE (Bluetooth Low Energy SLAVE), UWB (Ultra Wide Band), BDC (Body Domain Controller) |
| Wireless DCU | 10A | DCU (Data Connectivity Unit) |
| RESERVE | 7.5A | Not Used |
| AIR BAG1 | 10A | ISCM (Intergrated Safety Control Module), ODS (Occupant Detection System) |
| USB CHARGER3 | 15A | UMM (USB Multi Module) |
| LDC | 10A | MKBD (Multimedia Keyboard), CLUSTER, RR_ACON Rear Corner Radar & Front Corner radar, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), WPC (Wireless Power Charger), MKBD (Multimedia Keyboard), HUD (Head Up Display) |
| P/SEAT RR RH1 | 25A | 2nd LH Power Seat |
| P/WINDOW RH | 30A | Power Window Safety ECU, Passenger & Rear RH |
| MODULE5 | 7.5A | BDC (Body Domain Controller) |
| MODULE9 | 10A | Rear BLOWER Motor Relay Coil, VESS (Virtual Engine Sound System), 2nd & 3rd SEAT Folding switch, Power Liftgate, Drv & Passenger outside door handle touch sensor, Power seat unit ECU (Drv, Passenger, Rear LH, Rear RH), Power window switch DRV, Drv & Passenger outside mirror puddle lamp |
| SBCM PASS | 20A | Side Body-zone Control Module Passenger |
| AMP | 25A | External Amplifier (Merdian), ISG LDC 400W (ISG Low voltage DC/DC Converter) |
| USB CHARGER1 | 15A | UMM (USB Multi Module) |
| MODULE3 | 10A | Front View Camera SCM (Steering Column Control Module), ADAS Driving ECU (Advanced Driver Assistance System Driving ECU), Crash Pad Switch, Rear & Frong Corner Radar, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), AWD ECU (All Wheel Drive ECU), Console Switch, Front Radar, High voltage battery cooling fan Relay Coil |
| P/SEAT DRV1 | 30A | Drv Power Seat |
| P/WINDOW LH | 30A | Power Window Safety ECU, Drv & Rear LH |
| AIR BAG2 | 10A | ISCM (Intergrated Safety Control Module) |
| DOOR LOCK | 20A | Door Lock/Unlock Actuator, Fuel Lid Motor |
| SBCM DRV | 20A | Side Body-zone Control Module Drv |
| P/SEAT DRV2 | 10A | Drv Seat Lumbar Support |
| START | 7.5A | BDC (Body Domain Controller), VPC (Vehicle Platform Controller), Start signal (ECU/BDC) |
| INVERTER | 30A | AC Inverter unit |
| P/SEAT RR LH1 | 2nd RH Power Seat |

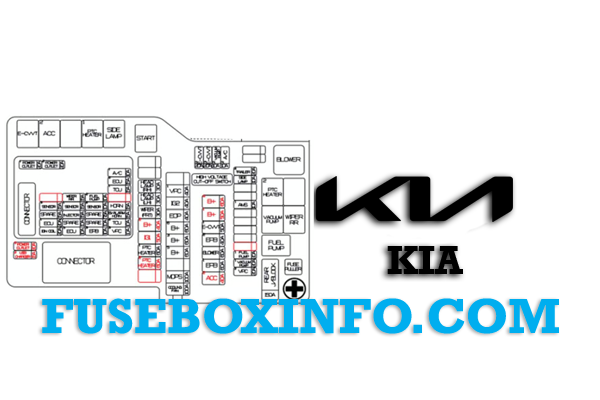

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| RESERVE | - | Not Used |
| RESERVE | - | Not Used |
| HEAD LAMP RH | 30A | Head Lamp RH |
| HEAD LAMP LH | 30A | Head Lamp LH |
| WIPER FRT | 30A | Front Wiper |
| B+2 | 40A | PDC (Power-net Domain Controller), B+ - IPS (Turn Signal Lamp, Exterior Tail Lamp, Back-up Lamp, Front Fog Lamp) |
| IG1 | 50A |
<IG1> ER_JB (PCB_BLOCK), IG1 FUSE LIST : EPB3(ICE), IEB3(HEV), ECU3, OPCU2(HEV), EWP2(HEV), HPCU2(HEV), TCU2, VPC3 PDC (Power-net Domain Controller) IG1 FUSE LIST : AIR BAG1, A/BAG IND, E-SHIFTER2, CLUSTER, BDC2, MDPS2, MODULE2, MODULE3, MODULE4, MODULE8 IPS : Haptic Steering Wheel <ACC> ER_JB ACC FUSE LIST : POWER OUTLET1, POWER OUTLET2 PDC (Power-net Domain Controller) ACC FUSE LIST : USB CHARGER3, MODULE1 |
| PTC1 | 60A | PTC Heater 1 |
| PTC2 | 60A | PTC Heater 2 |
| RESERVE | - | Not Used |
| B+4 | 60A | PDC (Power-net Domain Controller) B+ - FUSE LIST : MULTIMEDIA1, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, CCU, SBCM DRV, SBCM PASS, DR LOCK, TAILGATE OPEN |
| B+1 | 50A | PDC (Power-net Domain Controller), B+ - IPS (High Mounted Stop Lamp, Rear Fog Lamp, Interior Tail Lamp, Interior Lamp, Steering Wheel Warmer) |
| E-CVVT1 | 50A | ER_JB E-CVVT B+ FUSE LIST : E-CVVT1, E-CVVT2 |
| EPB2 (ICE) IEB2 (HEV) |
40A (ICE) 60A (HEV) | ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
| BLOWER | 60A | Blower Motor |
| EPB (ICE) IEB (HEV) |
60A | ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
| ACC2 | 40A | ER_JB ACC FUSE LIST : POWER OUTLET3, USB CHARER2 |
| POWER OUTLET3 | 20A | Console Power Outlet |
| USB CHARGER2 | 15A | USB Charger (Drv SEAT, Passenger SEAT, Luggage LH, Luggage RH) |
| E-CVVT2 | 20A | E-CVVT (Electronic-Continuously Variable Valve Timming) |
| E-CVVT3 | 20A | E-CVVT (Electronic-Continuously Variable Valve Timming) |
| VACUUM PUMP2 (ICE) | 10A | ESC (ELECTRIC STABILITY CONTROL) (ICE) |
| A/C2 (ICE) | 10A | ATCU (Air Temperature Control) (ICE) |
| VPC4 (HEV) | 20A | VPC (Vehicle Platform Controller) (HEV) |
| HPCU3 (HEV) | 10A | HPCU (Hybrid Power Control Unit) (HEV) |
| TRAILER4 | 20A | E-Brake |
| SIDE LAMP | 10A | Side Ground Lighting Lamp |
| RESERVE | - | Not Used |
| RESERVE | - | Not Used |
| AMS (ICE) | 10A | 12V Battery Sensor (ICE) |
| EWP1 (HEV) | 10A | EWP (Electric Water Pump) (HEV) |
| BMS (HEV) | 10A | BMS (Battery Management System) (HEV) |
| OPCU1 (HEV) | 10A | OPU (Oil Pump Control Unit) (HEV) |
| HPCU1 (HEV) | 10A | HPCU (Hybrid Power Control Unit) (HEV) |
| RESERVE | - | Not Used |
| FUEL PUMP | 20A | Fuel Pump Motor |
| VACUUM PUMP1 (ICE) BATTERY C/FAN (HEV) | 20A | Electric Vacuum Pump (ICE), BMS (Battery Management System) (HEV) |
| VPC2 (HEV) | 20A | VPC (Vehicle Platform Controller) (HEV) |
| IG3 (HEV) | 40A |
ER_JB IG3 FUSE LIST : HPCU3, VPC4 PDC (Power-net Domain Controller) IG3 FUSE LIST : IG3_2, IG3_3, IG3_4 |
| VPC1 | 40A | VPC (Vehicle Platform Controller) (HEV) |
| IG2 | 40A | PDC (Power-net Domain Controller) IG2 FUSE LIST : A/C2, REAR A/C, WASHER, MODULE5, MODULE6, SPARE LOAD : Start Solenoid (ICE) |
| EOP1 (ICE) | 40A | EOP (Electric Oil Pump) (ICE) |
| B+6 | 60A | ER_JB (PCB_BLOCK) B+ FUSE LIST : IGN COIL, ECU1, INJECTOR (ICE), SENSOR1, SNESOR2, SENSOR3, SENSOR4 (HEV), FUEL PUMP2, A/C1 (ICE), ECU2, TCU1, HORN, B/ALARM HORN |
| B+3 | 60A | PDC (Power-net Domain Controller) B+ FUSE LIST : SPARE, INVERTER, P/SEAT DRV1, P/SEAT PASS1, P/SEAT RR LH1, P/SEAT RR RH1, S/HEATER FRT, AAF, P/WINDOW LH, P/WINDOW RH, SUNROOF2, E-SHIFTER1, POWER HANDLE, MODULE7 |
| B+5 | 60A | PDC (Power-net Domain Controller) B+ FUSE LIST : AMP. Wireless DCU, CHARGER, MODULE9, P/SEAT DRV2, AIR BAG2, SUNROOF1, USB CHARGER1 |
| SPARE | 60A | SPARE |
| MDPS | 100A | R-MDPS (Rack-Motor Driven Power Steering) |
| COOLING FAN | 100A | COOLING FAN |
| RR_JB | 150A | RR_JB (Rear Junction Block), B+ |
| POWER OUTLET1 | 20A | Front Power Outlet |
| POWER OUTLET2 | 20A | Luggage Power Outlet |
| RESERVE | 30A | Not used |
| SENSOR3 | 15A | CCV (Canister Control Valve) (ICE), OLS (Oil Level Sensor) |
| SPARE (ICE) SENSOR4 (HEV) |
15A | APP (Active Purge Pump) (HEV) |
| ECU1 | 20A | ECU (Engine Control Unit) |
| IGN COIL | 20A | Ignition Coil 1~4 |
| WIPER RR | 15A | Rear Wiper |
| SENSOR1 | 15A | O2 Sensor |
| INJECTOR1 (ICE) SPARE (HEV) |
15A | Injector 1~4 (ICE) |
| SPARE (ICE) OPCU2 (HEV) |
10A | OPU (Oil Pump Control Unit) (HEV) |
| ECU3 | 10A | ECU (Engine Control Unit) |
| FUEL PUMP2 | 10A | Fuel Pump Relay Coil |
| SENSOR2 | 10A | OCV (Oil Control Valve), VOPS (Variable oil pump), PCSV (Purge Control Solenoid Valve), ELCM (Evaporation Leak Check Module), FTIV (Fuel Tank Isolation Valve), Cooling Fan, RCV (Recirculation Control Valve) |
| SPARE (ICE) EWP2 (HEV) |
7.5A | EWP (Electric Water Pump) (HEV) |
| SPARE (ICE) HPCU2 (HEV) |
10A | HPCU (Hybrid Power Control Unit) (HEV) |
| EPB3 (ICE) IEB3 (HEV) |
10A | ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
| A/C1 (ICE) SPARE (HEV) |
10A | Compressor |
| ECU2 | 15A | ECU (Engine Control Unit) |
| TCU1 | 15A | TCU (Transmission Control Unit) |
| RESERVE | 10A | Not used |
| HORN | 15A | Horn LH, Horn RH |
| B/ALARM HORN | 15A | Burglar Alarm Horn |
| TCU2 | 10A | TCU (Transmission Control Unit) |
| VPC3 | 10A | VPC (Vehicle Platform Controller) (HEV) |
| RESERVE | 15A | Not used |
| E-LSD | 20A | Electronic Limited Slip Differential |
| P/SEAT RR LH2 | 30A | 2nd row LH Power Seat and Actuator |
| POWER TAIL GATE | 40A | PTGM (Power Tail Gate Module) |
| S/HEATER RR RH | 25A | 2nd row SEAT Heater |
| TRAILER3 | 25A | CTM (Can Trailer Module) |
| TRAILER1 | 20A | Trailer Caravan B+ |
| P/SEAT RR RH2 | 30A | 2nd row RH Power Seat and Actuator |
| COMBI LAMP LH | 10A | Rear Combi Lamp LH STOP & Tail Lamp, B+ |
| RESERVE | 15A | Not used |
| 4WD | 20A | AWD (All Wheel Drive), ECU |
| RESERVE | 15A | Not used |
| RESERVE | 15A | Not used |
| RESERVE | 15A | Not used |
| COMBI LAMP RH | 10A | Rear Combi Lamp RH STOP & Tail Lamp, B+ |
| AMS2 (HEV) | 10A | 12V Battery sensor |
| TRAILER2 | 20A | CTM (Can Trailer Module) |
| BLOWER RR | 40A | Rear Blower Motor |
| REAR HEATED | 40A | Rear Glass Heated |
| AUX BATT | 50A | PLBM (Parking Lithium Battery Module) |
| 3RD S/HEATER | 30A | 3rd row SEAT Heater |
| 12V battery terminal cover | ||
| ALT | 250A | ALT |
