Kia Telluride 2023 Fuse Box Info

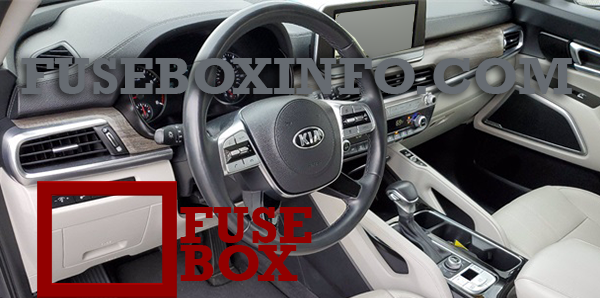

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| MODULE 4 | 7.5A | ATM (Auto Transmission) Shift Lever Switch, Stop Lamp Switch, Driver Door Module |
| AIR BAG 1 | 15A | SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor |
| BRAKE SWITCH | 7.5A | IBU (Integrated Body Control Unit), Stop Lamp Switch |
| MODULE 9 | 15A | Front Air Conditioner Control Module, Low DC-DC Converter (Audio), Power Tail Gate Module, Driver IMS (Integrated memory system) Control Module, Driver Door Module, Driver/Passenger Power Outside Mirror, Rear Air Conditioner Control Module |
| MODULE 12 | 7.5A | Head-Up Display |
| MODULE 10 | 10A | Rear Corner Radar LH/RH, Electro Chromic Mirror, Console Switch |
| AIR BAG IND | 10A | Front A/C Control Module, Instrument Cluster |
| IBU 1 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 2 | 7.5A | 360° camera monitoring system Unit, AC Inverter Outlet, AC Inverter Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, 2ND Air Ventilation Seat Control Module LH/RH, 2ND Seat Warmer Control Module LH/RH |
| MODULE 8 | 7.5A | Hazard Switch, Rain Sensor, Driver/Passenger Smart Key Outside Handle, Mood Lamp Control Unit, Driver/Passenger Mood Lamp, Driver/Passenger Door Mood Lamp, Rear Door Mood Lamp LH/RH |
| S/HEATER (FRT) | 20A | Front Air Ventilation Control Module, Front Seat Warmer Control Module, Data Link Connector |
| AIR BAG 2 | 15A | SRS (Supplemental Restraint System) Control Module |
| MODULE 5 | 7.5A | Front View Camera, Crash Pad Switch, IBU (Integrated Body Control Unit), Front Radar, ATM (Auto Transmission) Shift Lever Indicator, 4WD ECM (Engine Control Module), Console Switch, Electronic Parking Brake Switch |
| IBU 2 | 15A | IBU (Integrated Body Control Unit) |
| SUNROOF 2 | 20A | Rear Sunroof Controller |
| MODULE 1 | 7.5A | IBU (Integrated Body Control Unit) |
| P/WINDOW RH | 25A | Passenger Safety Power Window Module, Rear Safety Power Window Module RH |
| RR SEAT (LH) | 25A | 2ND Air Ventilation Seat Control Module LH, 2ND Seat Warmer Control, Module LH, 2ND Seat LH Reclining Folding Actuator |
| CLUSTER | 7.5A | Instrument Cluster, Head-Up Display |
| MDPS | 10A | MDPS (Motor Driven Power Steering) Unit |
| A/C | 7.5A | Engine Room Junction Block (Blower FRT Relay, Blower RR Relay, PTC Heater 1/2 Relay), Front A/C Control Module, Rear A/C Control Module |
| CHILD LOCK | 15A | ICM (Integrated Circuit Module) Relay Box (Child Lock/Unlock Relay) |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tail Gate Relay, T/Turn Unlock Relay |
| SUNROOF 1 | 20A | Front Sunroof Controller |
| MODULE 11 | 10A | Rear Occupant Detection Sensor |
| P/WINDOW LH | 25A | Driver Safety Power Window Module, Rear Safety Power Window Module LH |
| MODULE 3 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE 6 | 7.5A | Audio, Audio/Video & Navigation Head Unit, Low DC-DC Converter (Audio/AMP (Amplifier)), Front Air Conditioner Control Module, Electro Chromic Mirror, Center fascia Keyboard, Driver/Passenger Seat Warmer Switch, Driver/Passenger Seat Warmer LIN Switch, Driver IMS (Integrated memory system) Control Module, Front Air Ventilation Control Module, Front Seat Warmer Control Module, 2ND Air Ventilation Seat Control Module LH/RH, 2ND Seat Warmer Control Module LH/RH |
| WASHER | 15A | Multifunction Switch, Front Washer Motor, Rear Washer Motor, Washer Level Sensor |
| RR SEAT (RH) | 25A | 2ND Air Ventilation Seat Control Module RH, 2ND Seat Warmer Control, Module RH, 2ND Seat RH Reclining Folding Actuator |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor |
| AMP | 25A | Low DC-DC Converter (AMP (Amplifier)) |
| ACC | 7.5A | IBU (Integrated Body Control Unit), Low DC-DC Converter (Audio/AMP) |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| P/SEAT (DRV) | 30A | Driver IMS (Integrated memory system) Control Module, Driver Seat Manual Switch |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit |
| COOLING FAN | 80A | Cooling Fan Controller |
| EPB | 60A | ESC (Electronic Stability Control) Module |
| B+2 | 50A | ICU Junction Block (IPS 8/IPS 10/IPS 11/IPS 12/IPS 13/IPS 14/IPS 15) |
| B+3 | 50A | ICU Junction Block (Fuse - P/WINDOW LH, RR SEAT (LH), P/SEAT (DRV), P/SEAT (PASS), MODULE 11) |
| B+4 | 50A | ICU Junction Block (Fuse - MODULE 8, S/HEATER (FRT), P/ WINDOW RH, AMP, SUNROOF 1) |
| ESC 1 | 40A | ESC (Electronic Stability Control) Module |
| ESC 2 | 40A | ESC (Electronic Stability Control) Module |
| PTC HEATER 1 | 50A | PTC Heater 1 Relay |
| PTC HEATER 2 | 50A | PTC Heater 2 Relay |
| ECU 6 | 15A | ECM (Engine Control Module) |
| TCU 1 | 15A | TCM (Transmission Control Module) |
| TCU 3 | 15A | TCM (Transmission Control Module) |
| B+5 | 50A | ICU Junction Block (Fuse - DOOR LOCK, IBU (Integrated Body Control Unit) 1, IBU (Integrated Body Control Unit) 2, BRAKE SWITCH, CHILD LOCK, RR SEAT (RH), SUNROOF 2) |
| TRAILER 3 | 30A | Trailer Connector |
| BLOWER FRT 1 | 40A | Blower FRT Relay |
| OIL PUMP | 40A | Electric Oil Pump Inverter |
| REAR HEATED | 40A | Rear Heated Relay |
| B+1 | 50A | ICU Junction Block (IPS 1/IPS 2/IPS 3/IPS 5/IPS 6/IPS 7, Long/ Short Term Load Latch Relay) |
| BLOWER RR 1 | 40A | Blower RR Relay |
| 4WD | 20A | 4WD ECM (Engine Control Module) |
| AMS | 10A | Battery Sensor |
| H/LAMP HI | 15A | H/Lamp HI Relay |
| IG2 | 40A | Start Relay, PCB Block (IG2 Relay) |
| TRAILER 2 | 30A | Trailer Connector |
| INVERTER | 30A | AC Inverter Unit |
| POWER TAIL GATE | 30A | Power Tail Gate Module |
| TRAILER 1 | 30A | Trailer Connector |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, Front A/C Control Module |
| BLOWER RR 2 | 10A | Rear A/C Control Module |
| WIPER FRT 2 | 10A | IBU (Integrated Body Control Unit) |
| BLOWER FRT 2 | 10A | Front A/C Control Module |
| WIPER FRT 1 | 30A | Wiper FRT Relay |
| B/ALARM HORN | 15A | B/Alarm Horn Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| ACC 1 | 40A | ACC 1 Relay |
| ACC 2 | 40A | ACC 2 Relay |
| ECU 5 | 30A | Engine Control Relay |
| IG1 | 40A | IG1 Relay |
| A/C | 10A | A/C Relay |
| HORN | 15A | Horn Relay |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| ACC 3 | 15A | Rear USB Charger, Luggage USB Charger, Driver/Passenger Seat Cushion USB Charger |
| ACC 4 | 10A | Front USB Charger, Rear USB Charger RH |
| ICU | 10A | ICU Junction Block (Fuse - ACC) |
| SENSOR 1 | 10A | Fuel Pump Relay |
| SENSOR 4 | 15A | Canister Close Valve, Oxygen Sensor #1/#2/#3/#4 |
| ESC 3 | 10A | Data Link Connector, ESC (Electronic Stability Control) Module |
| TCU 2 | 10A | TCM (Transmission Control Module), Transaxle Range Switch |
| SENSOR 6 | 10A | Electric Oil Pump Inverter |
| ECU 4 | 10A | ECM (Engine Control Module) |
| POWER OUTLET 1 | 20A | Luggage Power Outlet |
| POWER OUTLET 3 | 20A | Rear Power Outlet |
| SENSOR 5 | 10A | Oil Pump Solenoid |
| SENSOR 2 | 10A | A/C Relay, Purge Control Solenoid Valve, Oil Control Valve #1/#2/ #3/#4 (Intake/Exhaust), Variable Intake Solenoid Valve #1/#2, Electronic Thermostat |
| SENSOR 3 | 20A | Cooling Fan Controller |
| ECU 1 | 20A | ECM (Engine Control Module) |
| ECU 2 | 20A | ECM (Engine Control Module) |
| ECU 3 | 20A | ECM (Engine Control Module) |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4/#5/#6 |
