Kia Sorento 2017 Fuse Box Info
Passenger fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

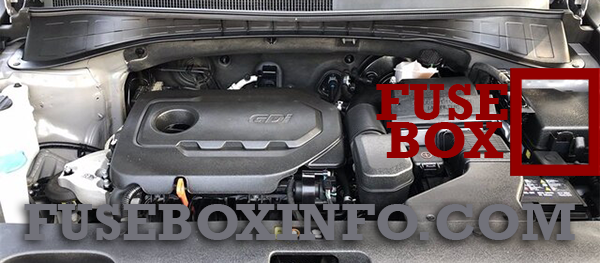

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| AIR BAG IND. | 10A | Cluster, A/C Control Module |
| A/CON 3 | 30A | Fuse - A/CON 2, Blower Motor |
| A/CON 2 | 7.5A | A/C Control Module (Auto) |
| START | 7.5A | E/R Junction Block (Start Relay), Transaxle Range Switch |
| AIR BAG | 15A | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE 2 | 10A | Crash Pad Switch, 4WD ECM, Lane Departure Warning Module, Console Switch, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Buzzer, Rear Parking Assist Sensor LH/RH (Center), Blind Spot Detection Radar LH/RH, Electronic Parking Brake Module |
| ACC | 10A | PCB Block (PDM (ACC) Relay, Power Outlet Relay), BCM, Audio, A/V & Navigation Head Unit, 360° camera monitoring Unit, Smart Key Control Module, AMP, USB Charger, Telematics Unit |
| MODULE 4 | 10A | Auto Head Lamp Leveling Device Module, Head Lamp Leveling Device Actuator LH/RH |
| BRAKE SWITCH | 7.5A | Smart Key Control Module, Stop Lamp Switch |
| MODULE 3 | 10A | A/C Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Driver IMS Control Module, ATM Shift Lever Indicator, Rear Seat Warmer LH, Front Air Ventilation Control Module, Front Seat Warmer Control Module, Telematics Unit |
| MODULE 1 | 10A | BCM, Stop Lamp Switch, Driver/Passenger Doormodule |
| SMART KEY 1 | 15A | Smart Key Control Module |
| A/CON (RR) | 15A | ICM Relay Box (Rear Blower Motor Relay) |
| SUNROOF 2 | 20A | Sunroof Control Module (Roller) |
| SUNROOF 1 | 20A | Sunroof Control Module (Glass) |
| CLUSTER | 10A | Instrument Cluster |
| GATEWAY | 10A | Gateway (MCU IG1) |
| IMMO. | 10A | Smart Key Control Module, Immobilizer Module |
| IG1 | 15A | E/R Junction Block (Fuse - MDPS 3, TCU 1), PCB Block (Fuse - ABS 3, SENSOR 6, ECU 1, CRUISE) |
| MULTIMEDIA | 15A | USB Charger, Audio, A/V & Navigation Head Unit, Telematics Unit |
| MEMORY 2 | 10A | Instrument Cluster, Data Link Connector, A/C Control Module, Rear A/C Control Module, Clock Spring, MUT, Electro Chromic Mirror, Driver/Passenger Door Module, Passenger Power Window Switch, Driver IMS Control Module |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Tail Gate Relay, DRIVER/PASSENGER/RL/RR DOOR MODULE |
| SMART KEY 2 | 10A | Start/Stop Button Switch, Smart Key Control Module, Immobilizer Module |
| AEB | 10A | AEB Unit |
| WASHER | 15A | BCM, Multifunction Switch |
| MDPS | 7.5A | MDPS UNIT(COLUMN TYPE), Steering Angle Sensor |
| MEMORY 1 | 10A | BCM |
| HEATED STEERING | 15A | BCM |
| WIPER (RR) | 15A | Rear Wiper Relay, Rear Wiper Motor |
| A/CON 1 | 7.5A | A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay), ICM Relay Box (Rear Blower Motor Relay) |
| HEATED MIRROR | 10A | A/C Control Module, Driver/Passenger Power Outside Mirror |
| MODULE 5 | 10A | BCM, Smart Key Control Module |
| MODULE 6 | 7.5A | 360° camera monitoring Unit, Rear A/C Control Module, Rear Seat Warmer LH, Front Air Ventilation Control Module, Front Seat Warmer Control Module, AC Inverter Module, Crash Pad Switch |
| S/HEATER (RR) | 15A | Rear Seat Warmer LH |
| S/HEATER (FRT) | 20A | Front Air Ventilation Control Module, Front Seat Warmer Control Module |
| P/WINDOW (RH) | 25A | Rear Safety Power Window RH, Rear Power Window Switch RH, Passenger Safety Power Window Module, Passenger Door Module, Passenger Power Window Switch |
| AMP 1 | 25A | AMP |
| MODULE 7 | 7.5A | Gateway (MCU B+), Sport Mode Switch, Key Solenoid |
| INTERIOR LAMP | 10A | Glove Box Lamp, Ignition Key Ill. & Door Warning Switch, Driver Foot Lamp, Vanity Lamp LH/RH Switch, Cargo Lamp, Center Room Lamp, Overhead Console Lamp, Rear Personal Lamp LH/RH |
| FUEL LID | 10A | Fuel Filler & Tail Gate Switch |
| P/SEAT (DRV) | 30A | Driver IMS Control Module, Driver Seat Manual Switch |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| AMP 2 | 25A | AMP |
| P/WINDOW (LH) | 25A | Rear Safety Power Window LH, Rear Power Window Switch LH, Driver Safety Power Window Module, Driver Door Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS 1 | 100A | MDPS Unit (Rack Type) |
| MDPS 2 | 80A | MDPS Unit (Column Type) |
| COOLING FAN 1 | 80A | Cooling Fan 1 Relay |
| B+1 | 60A | IGPM (Fuse - S/HEATER (RR), P/SEAT (DRV), P/SEAT (PASS), P/WINDOW (LH)) |
| B+2 | 60A | IGPM (Fuse - S/HEATER (FRT), P/WINDOW (RH), FULE LID, AMP 1, AMP 2) |
| B+3 | 60A | IGPM (IPS 1, Fuse - MODULE 7, Leak Current Autocut Device Fuse - MULTIMEDIA, MEMORY 2, MEMORY 1), INTERIOR LAMP |
| B+5 | 60A | IGPM (IPS 0/IPS 2/IPS 3/IPS 4/IPS 5/IPS 6/IPS 7/IPS 8, Fuse - S/ROOF 1) |
| B+4 | 60A | IGPM (Fuse - DOOR LOCK, SMART KEY 1, SMART KEY 2, BRAKE SWITCH, A/CON (RR), S/ROOF 2) |
| ABS 2 | 20A | ESC Module |
| ABS 1 | 40A | ESC Module, Multipurpose Check Connector |
| INVERTER | 30A | AC Inverter Module |
| POWER TAIL GATE | 30A | Power Tail Gate Module |
| TRAILER | 30A | Trailer Power Outlet |
| BLOWER | 40A | Blower Relay |
| AMS | 10A | Battery Sensor |
| VACUUM PUMP | 20A | [G4KH] Vacuum Pump |
| TCU 2 | 15A | [G4KJ/G4KH] PCM |
| EPB 1 | 15A | Electric Parking Brake Module |
| EPB 2 | 15A | Electric Parking Brake Module |
| 4WD | 20A | 4WD ECM |
| ECU 2 | 15A | PCM |
| ECU 3 | 15A | [G6DH] IDB (Injector Driver Box) |
| MDPS 3 | 7.5A | MDPS Unit (Rack Type) |
| TCU 1 | 10A | Transaxle Range Switch |
| B/UP LAMP | 7.5A | Rear Combination Lamp (IN) LH/RH, BCM, Electro Chromic Mirror, Audio(UVO) |
| ABS 3 | 7.5A | ESC Control Module, Multipurpose Check Connector |
| ECU 1 | 10A | PCM, [G6DH] IDB (Injector Driver Box) |
| IG 2 | 40A | RLY. 4 (Start Relay), PDM (IG2) Relay, Ignition Switch |
| POWER OUTLET 1 | 20A | Front Power Outlet & Cigarette Lighter |
| SENSOR 6 | 7.5A | [G4KH] Brake Vacuum Switch, Vacuum Pump |
| POWER OUTLET 2 | 20A | Front Power Outlet |
| CRUISE | 7.5A | Smart Cruise Control Radar |
| ECU 4 | 20A | [G4KJ/G4KH] PCM (E-CVVT Relay) |
| WIPER | 25A | Wiper Low Relay |
| DEICER | 15A | Front Deicer Relay |
| ECU 5 | 20A | [G4KJ/G4KH] PCM (E-CVVT Relay) |
| IG 1 | 40A | PDM (IG1) Relay, PDM (ACC) Relay, Ignition Switch |
| SENSOR 4 | 10A |
[G4KJ/G4KH] Oxygen Sensor (Up/Down) [G6DH] PCM, Oxygen Sensor #1/#2/#3/#4 |
| SENSOR 5 | 15A |
[G4KJ/G4KH]PCM [G6DH] IDB (Injector Driver Box) |
| POWER OUTLET 3 | 20A | Rear Power Outlet |
| SENSOR 1 | 20A |
[G4KJ/G4KH] Ignition Coil #1/#2/#3/#4 [G6DF] Ignition Coil #1/#2/#3/#4/#5/#6, Condecser #1/#2 |
| SENSOR 3 | 10A |
[G4KJ/G4KH] Fuel Pump Relay [G6DF] Fuel Pump Relay, PCM |
| POWER OUTLET 4 | 20A | Luggage Power Outlet |
| REAR HEATED | 40A | Rear Defogger Relay |
| SENSOR 2 | 10A |
[G4KJ/G4KH] E/R Junction Block (Cooling Fan 1 Relay), Oil Control Valve (Exhaust), Purge Control Solenoid Valve, Canister Close Valve, Variable Intake Solenoid Valve, RCV Control Solenoid Valve (G4KH) [G6DH] E/R Junction Block (Cooling Fan 1 Relay), Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), PCM, Canister close valve |
| FUEL PUMP | 20A | Fuel Pump Relay |
| HORN | 15A | Horn Relay |
| B/ALARM HORN | 10A | Burglar Alarm Horn Relay |
| Relay N° | Type | Relay Name |
| E31 | MICRO | Blower Relay |
| E32 | MICRO | START #2 Relay |
| E33 | MINI | Cooling Fan #1 Relay |
