Kia Soul 2025 Fuse Box Info

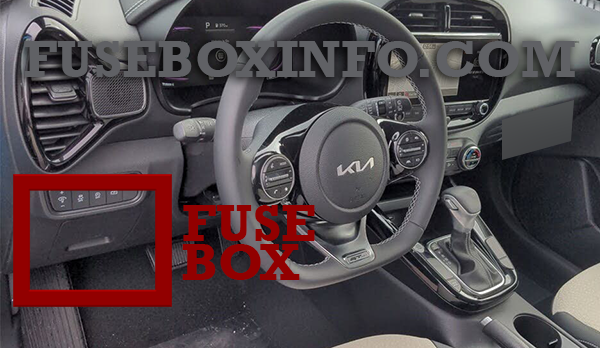

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

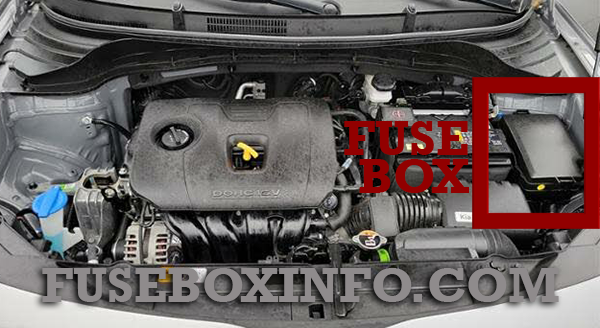

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER OUTLET | 20A | Front Power Outlet LH |
| MODULE2 | 10A | Sound Mood Lamp, E/R Junction Block (Power Outlet Relay), Audio, Front/Rear USB Charger, Wireless Charger, AMP, Driver/Passenger Door Mood Range Lamp, Power Outside Mirror Switch, A/V & Navi gation Head Unit, IBU |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM |
| IG1 | 25A | PCB Block (Fuse - ABS3, ECU5, SENSOR4, TCU2) |
| AIR BAG1 | 15A | Occupant Detection Sensor, SRS Control Module |
| A/BAG IND | 7.5A | Instrument Cluster, A/C Control Module |
| IBU2 | 7.5A | IBU |
| CLUSTER | 7.5A | HUD, Instrument Cluster |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit - MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering) |
| MODULE3 | 7.5A | ATM Shift Lever, Stop Lamp Switch |
| MODULE4 | 7.5A | Front View Camera, IBU, Front Radar, Crash Pad Switch, Rear Corner Radar LH/RH |
| MODULE5 | 10A | Front Air Ventilation Seat Control Module, A/C Control Module, A/V & Navigation Head Unit, Front Seat Warmer Control Module, ATM Shift Lever Indicator, Rear Seat Warmer Module, Audio, ECM (Electric chromic mirror) |
| A/C1 | 7.5A | E/R Junction Block (Blower Relay, PTC Heater #1/#2 Relay), A/C Control Module |
| WIPER FRT2 | 25A | Front Wiper Motor, PCB Block (Front Wiper (Low) Relay) |
| WIPER RR | 15A | Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay) |
| WASHER | 15A | Multifunction Switch |
| MODULE6 | 7.5A | IBU |
| MODULE7 | 7.5A | Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Front Heated Box (Front Heated LH Relay) |
| WIPER FRT1 | 10A | Front Wiper Motor, PCB Block (Front Wiper (Low) Relay), IBU, ECM/ PCM |
| A/C2 | 10A | ECM/PCM, A/C Control Module, Blower Resistor, Blower Motor, E/R Junction Block (Blower Relay) |
| START | 7.5A | [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), [With Smart Key or IMMO.] Transmission Range Switch, IBU,ECM/ PCM, E/R Junction Block (Start Relay) |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| TAILGATE OPEN | 10A | Tail Gate Open Relay |
| SUNROOF | 20A | Sunroof Motor |
| AMP | 25A | [W/O ISG] AMP, [With ISG] DC-DC Converter |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| P/SEAT (DRV) | 25A | POWER SEAT MODULE (DRV) |
| P/SEAT (PASS) | 25A | POWER SEAT MODULE (PASS) |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay) |
| BRAKE SWITCH | 10A | Stop Lamp Switch, IBU |
| IBU1 | 15A | IBU |
| AIR BAG2 | 10A | SRS Control Module |
| MODULE1 | 7.5A | Hazard Switch, Key Interlock Solenoid, Rain Sensor, Data Link Connector |
| MEMORY1 | 10A | Instrument Cluster, A/C Control Module, HUD |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit, DC-DC Converter |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 150 A (G4FJ) 180 A (G4NH) |
Alternator, E/R Junction Block (Fuse - VACUUM PUMP, OIL PUMP, POWER OUTLET1), ESC (Electronic Stability Control)1, ESC (Electronic Stability Control)2) |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit - MDPS(Motor Driven Power Steering) is the same as EPS(Electric Power Steering) |
| B+5 | 60A | PCB (Printed Circuit Board) Block (Engine Control Relay, Fuse - ECU3, ECU4, HORN, A/C) |
| B+2 | 60A | ICU Junction Block (IPS Control Module) |
| B+3 | 60A | ICU Junction Block (IPS Control Module) |
| B+4 | 50A | ICU Junction Block (Fuse - P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, AMP, S/HEATER FRT, P/SEAT (DRV), P/ SEAT (PASS) |
| COOLING FAN | 60A | [G4FH] Cooling Fan #1 Relay |
| REAR HEATER | 40A | Rear Heater Relay |
| BLOWER | 40A | Blower Relay |
| IG1 | 40A | [W/O Smart Key] Ignition Switch, [With Smart Key] E/R Junction Block (PDM (ACC) #2 Relay, PDM (IG1) #3 Relay) |
| IG2 | 40A | [W/O Smart Key] Ignition Switch, Start #1 Relay, [With Smart Key] E/R Junction Block (PDM (IG2) #4 Relay), Start #1 Relay |
| PTC HEATER 1 | 50A | PTC Heater #1 Relay |
| PTC HEATER 2 | 50A | PTC Heater #2 Relay |
| ABS1 | 40A | ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module |
| ABS2 | 40A | ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module |
| POWER OUTLET1 | 40A | Power Outlet Relay |
| POWER OUTLET2 | 20A | Front Power Outlet RH |
| POWER OUTLET3 | 20A | Rear Power Outlet |
| OIL PUMP | 40A | Electronic Oil Pump |
| VACUUM PUMP | 20A | Electric Vacuum Pump |
| TCU1 | 15A | TCM (Transmission Control Module) |
| H/LAMP HI | 10A | Head Lamp (High) Relay |
| FUEL PUMP | 20A | Fuel Pump Relay |
| COOLING FAN | 40A | [G4NH] Cooling Fan #1/#2 Relay |
| B+1 | 40A | ICU Junction Block (Long Term Load Latch Relay, Fuse - BRAKE SWITCH, MODULE1, IBU1, AIR BAG2,DOOR LOCK, S/HEATER RR) |
| ECU1 | 20A | [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU3 | 15A | [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| ECU4 | 15A | [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| HORN | 15A | Horn Relay |
| A/C | 10A | A/C COMP Relay |
| IGN COIL | 20A | Ignition Coil #1/#2/#3/#4 |
| SENSOR3 | 10A | E/R Junction Block (Fuel Pump Relay) |
| INJECTOR | 15A | [(Gasoline) 2.0 MPI] Injector #1/#2/#3/#4 |
| SENSOR1 | 15A | Oxygen Sensor (Up/Down) |
| SENSOR2 | 10A | A/C COMP Relay, Canister Close Valve, Purge Control Solenoid Valve, E/R Junction Block (Cooling Fan #1 Relay), Turbo Recirculation Valve [(Gasoline) 2.0 MPI] Oil Control Valve #1/ #2/ #3, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (Cooling Fan #1/#2) |
| ABS3 | 10A | ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module, Data Link Connector, Multipurpose Check Connector |
| ECU5 | 10A | [(Gasoline) 2.0 MPI] PCM (Power train Control Module) |
| SENSOR4 | 15A | [(Gasoline) 2.0 MPI] Electronic Oil Pump |
| TCU2 | 15A | Transmission Range Switch [(Gasoline) 2.0 MPI] Transmission Range Switch |
