Kia Sorento 2013 Fuse Box Info
Passenger fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

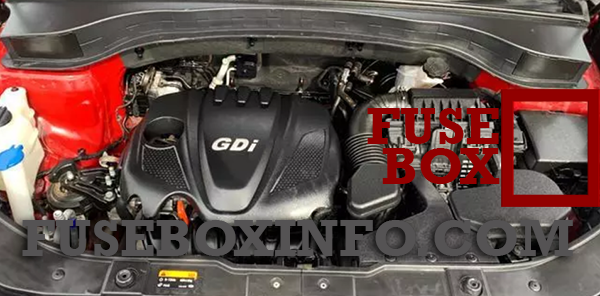

Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box::
| Fuse/Relay Name | Rating | Functions |
| MODULE 2 | 10A | Instrument Cluster (IND./MICOM), Tire Pressure Monitoring Module, Audio, Multifunction Switch (Remocon), Rear Parking Assist Buzzer ICM Relay Box (DBC Relay), ESC Off Switch, DBC Switch, Steering Angle Sensor, Alternator, Smart Key Control Module A/V & Navigation Head Unit, Rear Monitor, IPM (BCM IG1) |
| MODULE 1 | 10A | Smart Key Control Module, Rear Parking Assist Control Module E/R Fuse & Relay Box (Fuse - B/UP LP, ABS, ECU 2), PDM, 4WD ECM |
| RPAS | 7.5A | Rear Parking Assist Switch |
| A/BAG IND | 10A | Instrument Cluster (IND.), PODS Module, Digital Clock |
| A/BAG | 15A | SRS Control Module |
| START | 7.5A | E/R Fuse & Relay Box (Relay - Start, Sub Start, Burglar Alarm), PDM |
| WIPER RR | 15A | ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor Rear Wiper Switch, Rear Washer Switch |
| WIPER FRT | 25A | E/R Fuse & Relay Box (Wiper (Low) Relay), Front Wiper Motor, Multifunction Switch (Wiper) |
| AUDIO | 7.5A | AMP, Power Outside Mirror Switch, Smart Key Control Module, PDM, Audio, A/V & Navigation Head Unit, Digital Clock, IPM (BCM ACC), DVD Player Can, Rear Monitor |
| P/OUTLET RR | 15A | Rear Power Outlet |
| P/OUTLET FRT | 25A | Driver/Passenger Power Outlet |
| MODULE 3 | 7.5A | Not Used |
| A/CON | 7.5A | Front A/C Control Module, Active Incar Sensor, Cluster Ionize, PDM, ICM Relay Box (Front Seat Warmer Relay, Rear A/C Relay) E/R Fuse & Relay Box (Blower Relay), Sunroof Motor, Electro Chromic Mirror, IPM (BCM IG2) |
| AMP | 30A | AMP |
| DRL | 7.5A | Ground (GE01) |
| A/CON MANU | 7.5A | PCM, Front Blower Resistor, Front A/C Control Module |
| A/CON AUTO | 7.5A | Front A/C Control Module |
| B/A HORN | 10A | Burglar Alarm Horn Relay |
| A/CON REAR | 20A | ICM Relay Box (Rear A/C Relay) |
| P/WDW LH | 25A | Driver Power Window Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety Power Window Module |
| P/WDW RH | 25A | Passenger Power Window Relay, Power Window Main Switch Passenger Power Window Switch, Rear Power Window Switch RH |
| MODULE | 15A | Audio, A/V & Navigation Head Unit, RF Receiver, IPM (BCM B+), Rear Monitor |
| ROOM LP | 10A | Instrument Cluster (IND.), Digital Clock, Front A/C Control Module Data Link Connector, Door Warning Switch, Personal Room Lamp Room Lamp Auto Cut Relay, Overhead Console (MAP Lamp) Room Lamp, Cargo Lamp, Driver/Passenger Vanity Lamp Electro Chromic Mirror |
| DOOR LP | 10A | Driver/Passenger Door Scuff Lamp, DVD Player Can |
| DR LOCK | 20A | Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) Driver/Passenger Door Lock Actuator, Rear Door Lock Actuator LH/RH |
| PDM | 20A | PDM |
| SUNROOF | 20A | Sunroof Motor |
| SMART KEY | 10A | PDM, Smart Key Control Module, Start Stop Button Switch, FOB Holder, Key Solenoid |
| S/HTR FRT | 20A | ICM Relay Box (Front Seat Warmer Relay) |
| P/SEAT DRV | 30A | Driver Power Seat Switch, Driver Lumbar Support Switch |
| P/SEAT PASS | 20A | Passenger Power Seat Switch |
| HTD STRG | 15A | Steering wheel heater |
| 4WD | 10A | 4WD ECM, Sport Mode Switch |
| HAZARD | 15A | IPM (Flasher Unit) |
| F/LID | 15A | Tail Gate Relay, Tail Gate Actuator, Fuel Filler Door Switch |
| MODULE4 | 10A | TPMS, O/S Mirror Switch, Power Window Switch |
| HTD MIRR | 10A | Driver/Passenger Power Outside Mirror, Front A/C Control Module |
| POWER CONNECTOR | FUSE - MODULE, ROOM LP, DOOR LP |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 175A | Alternator |
| I/P B+2 | 60A | IPM (Fuse - S/HTR FRT, P/SEAT, Power Connector - MODULE, ROOM LP DOOR LP) |
| BLOWER | 40A | Blower Relay |
| RR HTD | 40A | Rear Defogger Relay |
| ABS 1 | 40A | ESC Control Module, Multipurpose Check Connector |
| ABS 2 | 40A | ESC Control Module, Multipurpose Check Connector |
| I/P B+3 | 60A | IPM (Fuse - HAZARD, TPMS, F/LID) |
| I/P B+1 | 60A | IPM (Fuse - DR LOCK, SUNROOF, 4WD, PDM, SMART KEY) |
| IGN 2 | 40A | Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - PDM Relay Box (IGN2 Relay) |
| TRAILER | 30A | Trailer Power Outlet |
| IGN 1 | 30A | W/O Smart Key - Ignition Switch, With Smart Key - PDM Relay Box (IGN1 Relay) |
| HORN | 15A | Horn Relay |
| STOP LP | 15A | Stop Lamp Switch, ICM Relay Box (DBC Relay) |
| B+ SENSOR | 15A | Battery Sensor |
| DEICER | 15A | Front Wiper Deicer Relay |
| C/FAN | 50A | Cooling Fan Relay Low/High |
| I/P B+4 | 50A | IPM (Fuse - P/WDW LH, P/WDW RH, B/A HORN, A/CON REAR, AMP) |
| ECU 2 | 7.5A | Sub Start Relay, PCM, Transaxle Range Switch, Alternator (G6DC) |
| ABS | 7.5A | ESC Control Module, Multipurpose Check Connector, Stop Lamp Switch (G4KE) |
| B/UP LP | 7.5A | Back-Up Lamp Relay (A/T), Back-Up Lamp Switch (M/T) |
| ECU | 30A | Engine Control Relay |
| ECU3 | 20A |
G4KE - Ignition Coil #1/2/3/4, Condenser G6DC - Ignition Coil #1/2/3/4/5/6, Condenser #1/2 |
| SENSOR1 | 10A |
G4KE - Variable Intake Manifold Valve, Crankshaft Position Sensor, Immobilizer Module, Camshaft Position Sensor #1/2, Oil Control Valve #1/2, Canister Purge Control Solenoid Valve, Canister Close Valve, Cooling Fan (Low) Relay G6DC - Variable Intake Manifold Valve #1/2, Immobilizer Module, Canister Purge Control Solenoid Valve, Oil Control Valve #1/2 (Exhaust), Oil Control Valve #1/2 (Intake), Canister Close Valve |
| SENSOR2 | 10A | G6DC - Cooling Fan (Low) Relay, Stop Lamp Switch |
| SENSOR3 | 10A |
G4KE - Injector #1/2/3/4, A/C Relay G6DC - PCM, Injector #1/2/3/4/5/6, A/C Relay |
| SENSOR4 | 15A |
G4KE - Oxygen Sensor Up/Down, Fuel Pump Relay G6DC - PCM, Oxygen Sensor #1/2/3/4, Fuel Pump Relay, Variable Charge Motion Actuator |
| ECU1 | 15A | PCM |
| A/CON | 10A | A/C Relay |
| F/PUMP | 15A | Fuel Pump Relay |
