Kia Soul 2012 Fuse Box Info

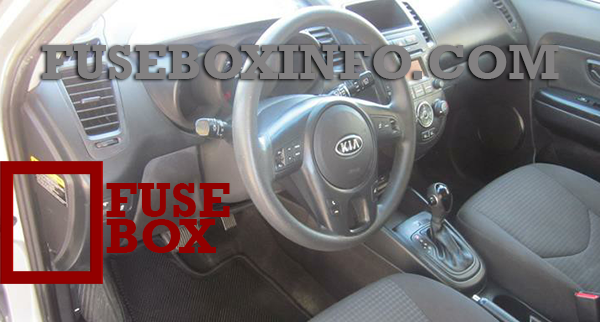

Passenger fuse box location:
The fuse box is located on the driver side edge of the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| P/WDW LH | 25A | Power Window Main Switch, Rear Power Window Switch LH |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| PDM 2 | 10A | PDM,Start/Stop Button Switch, Fob Holder |
| HAZARD | 15A | Hazard Relay, Hazard Switch, One Touch Flasher Unit |
| TAIL LP LH | 10A | Rear Combination Lamp LH, Head Lamp LH, License Lamp |
| TAIL LP RH | 10A | Rear Combination Lamp RH, Head Lamp RH, Audio, Passenger Power Window Switch, Rheostat, Power Window Main Switch, Hazard Switch, Instrument Cluster, Mood Lamp Switch, AUX & USB Jack, ESC Switch, A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Switch, ATM Shift Lever Indicator, Glove Box Lamp, A/V & Navigation Head Unit, Telltale Lamp, ISG Switch, Active ECO Switch, /V & Navigation Touch, AUX Jack |
| IG 2 | 10A | BCM, Sunroof Motor |
| WIPER RR | 15A | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch (Wiper) |
| WIPER FRT | 25A | E/R Fuse & Relay Box (Wiper Relay), Front Wiper Motor, Multifunction Switch (Wiper) |
| AMP | 25A | AMP, ISG Low DC - DC Converter (AMP) |
| SUNROOF | 20A | Sunroof Motor |
| (FOG LP FRT) | 15A | Front Fog Lamp Relay |
| T/GATE OPEN | 15A | Tail Gate Relay, Data Link Connector, DRL Relay |
| (FOG LP RR) | 10A | - |
| A/CON | 10A | A/C Control Module, E/R Fuse & Relay Box (H/LP HI Relay, Blower Relay), Active Incar Sensor, A/V & Navigation Touch |
| PDM 1 | 10A | PDM |
| ACC | 10A | Audio, Mood Lamp Module, Power Outside Mirror Switch, Smart Key Control Module, PDM, ATM Key Lock Control Module, A/V & Navigation Head Unit, BCM, AMP, A/V & Navigation Touch, ISG Low DC - DC Converter (Audio/AMP) |
| C/LIGHTER | 20A | Cigarette Lighter, Rear Power Outlet |
| HTD MIRR | 10A | ECM/PCM, Driver/Passenger Power Outside Mirror, A/C Control Module, A/V & Navigation Touch |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay, 2 Turn Lock Relay |
| STOP LP | 15A | Stop Lamp Switch, Multipurpose Check Connector, HAC Relay, Stop Lamp Relay, Sport Mode Switch, Key Solenoid |
| TCU | 10A | Vehicle Speed Sensor (M/T), ATM Shift Lever Indicator, ATM Key Lock Control Module, Transaxle Range Switch |
| ABS | 10A | ESC Module, ESC Switch, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| IG 1 | 10A | Tire Pressure Monitoring Module, ISG Low DC - DC Converter (Audio/AMP), Driver/Passenger Seat Warmer Switch, Driver/Passenger Seat Warmer, ISG Switch, Electro Chromic Mirror, Oil Pump Invertor, Stop Lamp Switch, HAC Relay |
| P/OUTLET FRT | 15A | Front Power Outlet |
| A/BAG | 15A | SRS Control Module, Weight Classification Module, Telltale Lamp |
| IGN COIL | 15A | G4FD : Condenser, Ignition Coil #1 ~ #4 |
| T/SIG | 10A | Hazard Switch, Multifunction Switch (Light) |
| CLUSTER | 10A | BCM, Instrument Cluster (IND.), A/C Control Module, Smart Key Control Module, PDM |
| ECU | 10A | ECM, PCM |
| START | 10A | E/R Fuse & Relay Box (Start Relay), PDM, Transaxle Range Switch, Ignition Lock Switch, PCM/ECM |
| B/UP LP | 10A | Back-up Lamp Switch (M/T) |
| A/BAG IND | 10A | Instrument Cluster (Air Bag IND.) |
| POWER CONNECTOR MODULE | 15A | Audio, RF Receiver, A/V & Navigation Touch, ISG Low DC - DC Converter (Audio), A/V & Navigation Head Unit |
| POWER CONNECTOR ROOM LP | 10A | BCM, Instrument Cluster (IND.), A/C Control Module, Tire Pressure Monitoring Module, Center Room Lamp, Luggage Lamp, Overhead Console Assembly (Map Lamp), Ignition Key ILL. & Door Warning Switch, Vanity Lamp LH/RH |
Engine compartment fuse box (Engine 1.6):
| Fuse/Relay Name | Rating | Functions |
| B+ 1 | 50A | I/P Junction Box (Power Window Relay, Fuse - P/WDW LH 25A, P/WDW RH 25A, PDM 2 10A, HAZARD 15A) |
| INVERTER | 50A | Oil Pump Invertor |
| ALT | 125A | Alternator, Fuse (ABS 2 40A, ABS 1 40A, RR HTD 40A, BLOWER1 40A, MDPS 80A, A/CON 10A) |
| ABS 1 | 40A | ESC Module |
| ABS 2 | 40A | ESC Module |
| RR HTD | 40A | I/P Junction Box (Rear Defogger Relay) |
| BLOWER 1 | 40A | Blower Relay |
| MDPS 1 | 80A | EPS Control Module |
| IG 2 | 40A | Ignition Switch, PDM Relay Box(IG 1 Realy), Start Relay |
| IG 1 | 40A | Ignition Switch, PDM Relay Box(IG 2 Realy) |
| ECU 1 | 30A | Engine Control Relay |
| H/LP | 20A | H/LP Relay |
| C/FAN | 30A | C/Fan HI Relay, C/Fan Low Relay |
| B+2 | 50A | I/P Junction Box (Tail Lamp Relay, Fuse - TAIL LP LH 10A, TAIL LP RH 10A, SUNROOF 20A, AMP 25A, DR LOCK 20A, STOP LP 15A, T/GATE OPEN 15A, (FOG LP FRT) 15A, Power Connector - ROOM LP 10A, MODULE 15A) |
| F/PUMP | 15A | F/Pump Relay |
| PDM | 25A | PDM, Smart Key Control Module |
| SEAT HEATER | 20A | Driver Seat Warmer, Passenger Seat Warmer |
| ECU 2 | 15A | PCM/ECM |
| H/LP HI | 20A | H/LP HI Relay |
| HORN | 10A | Horn Relay |
| DEDICATE DRL | 10A | BCM |
| BLOWER 2 | 10A | A/C Control Module (Auto) |
| SENSOR 1 | 10A | - |
| SENSOR 2 | 10A | C/Fan HI/Low Relay, PCM/ECM, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, Immobilizer Module, A/Con Relay |
| IGN COIL | 15A | - |
| ECU 3 | 20A | - |
| SENSOR 3 | 15A | Oxygen Sensor (Up/Down), F/Pump Relay, Oil Control Valve #1/#2, PCM/ECM |
| H/LP LH | 10A | Head Lamp LH |
| H/LP RH | 10A | Head Lamp RH |
| HTD STRG | 15A | - |
| WIPER | 10A | PCM |
| B/UP LP (AP) | 10A | Electro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster, A/V & Navigation Head Unit, Audio |
| MDPS 2 | 10A | EPS Control Module |
| A/CON | 10A | A/Con Relay |
Engine compartment fuse box (Engine 2.0):
| Fuse/Relay Name | Rating | Functions |
| B+ 1 | 50A | I/P Junction Box (Power Window Relay, Fuse - P/WDW LH 25A, P/WDW RH 25A, PDM 2 10A, HAZARD 15A) |
| INVERTER | 50A | Oil Pump Invertor |
| ALT | 125A | Alternator, Fuse (ABS 2 40A, ABS 1 40A, RR HTD 40A, BLOWER1 40A, MDPS 80A, A/CON 10A) |
| ABS 1 | 40A | ESC Module |
| ABS 2 | 40A | ESC Module |
| RR HTD | 40A | I/P Junction Box (Rear Defogger Relay) |
| BLOWER 1 | 40A | Blower Relay |
| MDPS 1 | 80A | EPS Control Module |
| IG 2 | 40A | Ignition Switch, PDM Relay Box(IG 1 Realy), Start Relay |
| IG 1 | 40A | Ignition Switch, PDM Relay Box(IG 2 Realy) |
| ECU 1 | 30A | Engine Control Relay |
| H/LP | 20A | H/LP Relay |
| C/FAN | 30A | C/Fan HI Relay, C/Fan Low Relay |
| B+2 | 50A | I/P Junction Box (Tail Lamp Relay, Fuse - TAIL LP LH 10A, TAIL LP RH 10A, SUNROOF 20A, AMP 25A, DR LOCK 20A, STOP LP 15A, T/GATE OPEN 15A, (FOG LP FRT) 15A, Power Connector - ROOM LP 10A, MODULE 15A) |
| F/PUMP | 15A | F/Pump Relay |
| PDM | 25A | PDM, Smart Key Control Module |
| SEAT HEATER | 20A | Driver Seat Warmer, Passenger Seat Warmer |
| ECU 2 | 15A | PCM/ECM |
| TCU | 20A | PCM |
| H/LP HI | 20A | H/LP HI Relay |
| HORN | 10A | Horn Relay |
| DEDICATE DRL | 10A | BCM |
| BLOWER 2 | 10A | A/C Control Module (Auto) |
| SENSOR 1 | 10A | Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2, Canister Control Valve, A/Con Relay, Immobilizer Module |
| SENSOR 2 | 10A | C/Fan HI/Low Relay, Injector #1 ~ #4 |
| IGN COIL | 15A | Ignition Coil #1 ~ #4, Condenser |
| ECU 3 | 20A | PCM/ECM |
| SENSOR 3 | 15A | Oxygen Sensor (Up/Down), F/Pump Relay, Purge Control Solenoid Valve, Variable Intake Solenoid Valve |
| H/LP LH | 10A | Head Lamp LH |
| H/LP RH | 10A | Head Lamp RH |
| HTD STRG | 15A | - |
| WIPER | 10A | PCM |
| B/UP LP (AP) | 10A | Electro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster, A/V & Navigation Head Unit, Audio |
| MDPS 2 | 10A | EPS Control Module |
| A/CON | 10A | A/Con Relay |
