Kia Soul 2022 Fuse Box Info
Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

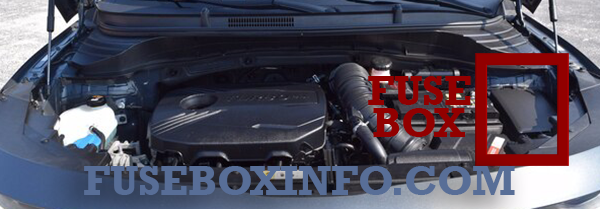

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| POWER OUTLET | 20A | Front Power Outlet |
| MODULE2 | 10A | E/R Junction Block (Power Outlet Relay), Audio, Rear USB Charger, Wireless Charger, Sound Mood Amplifier, Amplifier, Driver/Passenger Door Mood Range Amplifier, Power Outside Mirror Switch, A/V & Navigation Head Unit, IBU (Integrated Body Control Unit) |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, Air Conditioner Control Module |
| IG1 | 25A | PCB Block (Fuse - IEB2, IEB3) |
| AIR BAG1 | 15A | Occupant Detection Sensor, SRS (Supplemental Restraint System) Control Module |
| A/BAG IND | 7.5A | Instrument Cluster, Air Conditioner Control Module |
| IBU2 | 7.5A | IBU (Integrated Body Control Unit) |
| CLUSTER | 7.5A | HUD, Instrument Cluster |
| MDPS | 7.5A | MDPS (Motor Driven Power Steering) Unit |
| MODULE3 | 7.5A | Stop Amplifier Switch |
| MODULE4 | 7.5A | Multifunction Camera, IBU (Integrated Body Control Unit), Forward Collision Avoidance Assist Unit, Crash Pad Switch, Blind-Spot Collision Warning Unit LH/ RH,VESS (Virtual Engine Sound System) Unit (Speaker) |
| MODULE5 | 10A | Front Air Ventilation Seat Control Module, Crash Pad Switch, A/V & Navigation Head Unit, Front Seat Warmer Control Module, Rear Seat Warmer Module, Audio, Electro Chromic Mirror |
| A/C | 7.5A | Air Conditioner Control Module |
| WIPER FRT1 | 25A | Front Wiper Motor, PCB Block (Front Wiper (Low) Relay) |
| WIPER RR | 15A | Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay) |
| WASHER | 15A | Multifunction Switch |
| MODULE6 | 7.5A | IBU (Integrated Body Control Unit) |
| MODULE7 | 7.5A | Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, E/R Junction Block (W/S Heated Glass LH Relay) |
| E-SHIFTER | 10A | Driver Console Switch, Shift Select Switch (SBW) |
| WIPER FRT2 | 10A | Front Wiper Motor, PCB Block (Front Wiper (Low) Relay), IBU (Integrated Body Control Unit) |
| START | 7.5A | IBU (Integrated Body Control Unit), EPCU |
| P/WINDOW LH | 25A | Power Window LH Relay, Driver Safety Power Window Module |
| P/WINDOW RH | 25A | Power Window RH Relay, Passenger Safety Power Window Module |
| TAILGATE OPEN | 10A | Tail Gate Open Relay |
| SUNROOF | 20A | Sunroof Motor |
| AMP | 25A | Amplifier |
| S/HEATER FRT | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| P/SEAT (DRV) | 25A | Driver Seat Manual Switch |
| P/SEAT (PASS) | 25A | Passenger Seat Manual Switch |
| S/HEATER RR | 20A | Rear Seat Warmer Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay) |
| BRAKE SWITCH | 10A | Stop Amplifier Switch, IBU (Integrated Body Control Unit) |
| IBU1 | 15A | IBU (Integrated Body Control Unit) |
| AIR BAG2 | 10A | SRS (Supplemental Restraint System) Control Module |
| MODULE1 | 7.5A | Hazard Switch, Active Air Flap Unit, Rain Sensor, Data Link Connector |
| MEMORY1 | 10A | Instrument Cluster, HUD |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| LDC | 150A | Fuse: POWER OUTLET1, IEB1, IEB2, CHARGER1, Air Conditioner, EPCU |
| MDPS | 80A | MDPS (Motor Driven Power Steering) Unit |
| B+5 | 60A | PCB Block (Main Relay, Fuse: BATTERY MANAGEMENT, HORN, EPCU1) |
| B+2 | 60A | ICU Junction Block (IPS (Instrument Panel Module) Control Module, IPS (Instrument Panel Module)(1CH)) |
| B+3 | 60A | ICU Junction Block (IPS (Instrument Panel Module) Control Module) |
| B+4 | 50A | ICU Junction Block (Fuse: TAIL GATE OPEN, SUNROOF, Amplifier, P/WINDOW LH, P/WINDOW RH, S/HEATER FRT, P/SEAT (PASS), P/SEAT (DRV)) |
| COOLING FAN | 60A | Cooling Fan Relay |
| REAR HEATER | 40A | Rear Heater Relay |
| BLOWER | 40A | Blower Relay |
| IG1 | 40A | PDM (IG1) #2 Relay, PDM (ACC) #1 Relay |
| IG2 | 40A | PDM (IG2) #3 Relay |
| IEB4 | 80A | Integrated Mobis Electronic Brake Control Module (Motor) |
| W/S HEATED GLASS LH | 50A | W/S Heated Glass LH Relay |
| W/S HEATED GLASS RH | 50A | W/S Heated Glass RH Relay |
| POWER OUTLET3 | 20A | Front USB Charger |
| POWER OUTLET2 | 20A | Rear Power Outlet |
| OBC | 10A | OBC (On-Board Charger) |
| CHARGER2 | 10A | Charger Lock Relay, Charger Unlock Relay |
| IG3 5 | 20A | IG3 2 Relay, IG3 1 Relay |
| B+1 | 40A | Long Term Load Latch Relay, ICU Junction Block (Fuse: DOOR LOCK, S/HEATER RR, BRAKE SWITCH, IBU (Integrated Body Control Unit)1, AIR BAG2, MODULE1 |
| E-SHIFTER1 | 40A | E-Shifter Relay, Fuse: E-SHIFTER2 |
| CHARGER1 | 10A | Charge Door Module, CCM Unit |
| A/C | 15A | Air Conditioner Control Module |
| IEB1 | 40A | Multipurpose Check Connector, Integrated Mobis Electronic Brake Control Modulwe |
| IEB2 | 40A | Integrated Mobis Electronic Brake Control Module |
| POWER OUTLET1 | 40A | Power Outlet Relay |
| E-SHIFTER2 | 10A | SCU, Shift Select Switch (SBW) |
| HORN | 15A | Horn Relay |
| EPCU1 | 15A | EPCU |
| IG3 2 | 10A | OBC (On-Board Charger), EPCU, Electronic Air Conditioner Compressor |
| BATTERY MANAGEMENT | 15A | BMU |
| ELECTRICAL WATER PUMP | 15A | Electronic Water Pump (BMS, ER) |
| IG3 4 | 10A | Charger Door Module, Active Air Flap Unit, ICU Junction Block (IPS (Instrument Panel Module) Control Module), Instrument Cluster, Charger LAmplifier, Audio,A/V & Navigation Head Unit |
| IG3 1 | 15A | E/R Junction Block (IG3 2 Relay, IG3 1 Relay) |
| IEB3 | 10A | Multipurpose Check Connector, Data Link Connector, Integrated Mobis Electronic Brake Control Module |
| E-SHIFTER3 | 10A | SCU |
| IG3 3 | 10A | 3Way Coolant Control Valve LH/RH, E/R Junction Block (Cooling Fan Relay, Blower Relay), Air Conditioner Control Module, CCM Unit, Air Conditioning PTC Heater |
| IEB2 | 10A | EPCU |
