Kia Soul 2010 Fuse Box Info

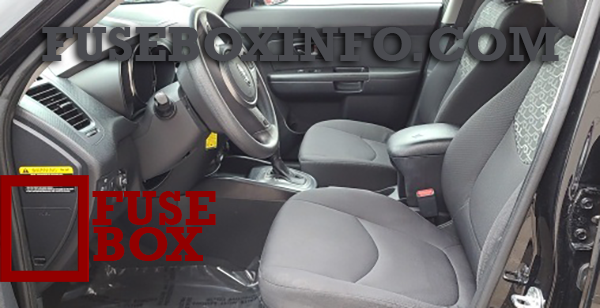

Passenger fuse box location:
The fuse box is located on the driver side edge of the instrument panel.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| P/WDW LH | 25A | Power Window Main Switch, Rear Power Window Switch LH |
| P/WDW RH | 25A | Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH |
| F/MIRROR | 10A | Data Link Connector |
| HAZARD LP | 15A | Hazard Relay, Hazard Switch |
| TAIL LH | 10A | Rear Combination Lamp LH, Head Lamp LH, License Lamp |
| TAIL RH | 10A | Rear Combination Lamp RH, Head Lamp RH, Rheostat Detent, AUX & USB Jack, Hazard Switch, ESC Switch, Instrument Cluster (ILL.), Instrument Cluster (IND.), Mood Lamp Switch, Power Window Main Switch, Audio, Driver/Passenger Seat Warmer Switch, Shift Lever Switch, A/C Control Module, Multifunction Switch (Remocon) |
| IGN 2 | 10A | BCM, Electro Chromic Mirror, Sunroof Control Module |
| WIPER(RR) | 15A | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch (Wiper) |
| S/HTR | 20A | Driver/Passenger Seat Warmer Switch |
| WIPER(FR) | 25A | E/R Fuse & Relay Box (Front Wiper Relay), Front Wiper Motor, Multifunction Switch (Wiper) |
| AMP | 25A | AMP |
| S/ROOF | 20A | Sunroof Control Module |
| (FOG LP(FR)) | 15A | Front Fog Lamp Relay |
| T/GATE OPEN | 15A | Tail Gate Relay, DRL Relay |
| (FOG LP(RR)) | 10A | Rear Fog Lamp Relay |
| A/CON | 10A | A/C Control Module, E/R Fuse & Relay Box (Head Lamp Relay (High), Blower Relay |
| H/LP | 10A | E/R Fuse & Relay Box (Head Lamp Relay (Low)) |
| ACC | 10A | Audio, Mood Lamp Switch, Power Outside Mirror Switch |
| ACC SOCKET | 15A | Cigarette Lighter, Front Power Outlet |
| MIRR. HTD | 10A | ECM/PCM (G4FC), Driver/Passenger Power Outside Mirror Motor, A/C Control Module |
| DR LOCK | 20A | Door Lock Relay, Door Unlock Relay, 2 Turn Unlock Relay |
| STOP LP | 15A | Stop Lamp Switch, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| TCU | 10A | Vehicle Speed Sensor (M/T), Pulse Generator 'A', Pulse Generator 'B', PCM, Shift Lever Switch |
| ABS | 10A | ABS Control Module, ESC Control Module, ESC Switch, Steering Angle Sensor, E/R Fuse & Relay Box (Multipurpose Check Connector) |
| IGN 1 | 10A | Tire Pressure Monitoring Module, Multifunction Switch (Remocon), Audio |
| POWER CONNECTOR AUDIO | 15A | Audio |
| POWER CONNECTOR MEMORY | 10A | BCM, Instrument Cluster (IND.), A/C Control Module, Tire Pressure Monitoring Module, Door Warning Switch, Overhead Console Assembly (Map Lamp), Center Room Lamp, Luggage Lamp |
| P/OUTLET. RR | 15A | Rear Power Outlet |
| A/BAG | 15A | SRS Control Module, Weight Classification Module |
| IGN COIL | 15A | Condenser, Ignition Coil #1 ~ #4 |
| T/SIG | 10A | Hazard Switch |
| CLUSTER | 10A | BCM, Instrument Cluster (IND.), A/C Control Module |
| ECU | 10A | ECM, PCM |
| START | 10A | E/R Fuse & Relay Box (Start Relay) |
| B/UP LP | 10A | Back-up Lamp Switch (M/T), Transaxle Range Switch (A/T), Cruise Control Module |
| A/BAG W/LP | 10A | Instrument Cluster (Air Bag IND.) |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| BATT 2 | 50A | I/P Junction Box (Relay - Tail Lamp, Fuse - TAIL LH 10A, TAIL RH 10A, S/ROOF 20A, STOP LP 15A, DR LOCK 20A, AMP 25A, T/GATE OPEN 15A, (FOG LP(FR)) 15A, (FOG LP(RR)) 10A, Power Connector - MEMORY 10A, AUDIO 15A) |
| BATT 1 | 50A | I/P Junction Box (Relay - Power Window, Fuse - P/WDW LH 25A, P/WDW RH 25A, F/MIRROR 10A, HAZARD LP 15A) |
| C/FAN | 40A | C/Fan Relay (High), C/Fan Relay (Low) |
| MAIN | 125A | Generator, Fuse (ABS 240A, ABS 140A, RR HTD 40A, BLW 40A, MDPS 80A, A/CON 10A) |
| ABS 2 | 40A | ABS Control Module, ESC Control Module |
| ABS 1 | 40A | ABS Control Module, ESC Control Module |
| RR HTD | 40A | I/P Junction Box (Rear Defogger Relay) |
| BLW | 40A | Blower Relay |
| MDPS | 80A | - |
| IGN 2 | 40A | Ignition Switch, Start Relay |
| ECU A | 30A | Main Relay, ECU B 10A |
| F/PUMP | 20A | F/Pump Relay |
| IGN 1 | 40A | Ignition Switch |
| H/LP HI | 20A | Head Lamp Relay (High) |
| H/LP LO | 20A | Head Lamp Relay (Low) |
| HORN | 10A | Horn Relay |
| H/LP LO RH | 10A | Head Lamp RH |
| H/LP LO LH | 10A | Head Lamp LH, Instrument Cluster (Low Beam IND.) |
| ECU B | 10A | PCM, ECM (1.6L) |
| ECU 3 | 10A | ECU (2.0L) |
| ECU 2 | 10A | ECU (2.0L) |
| ECU 1 | 20A | PCM, Ignition Coil (2.0L), PCM (1.6L) |
| INJECTOR | 15A | Immobilizer Module, Idle Speed Control Actuator, Injetor #1~4, Canister Close Valve |
| SENSOR | 10A | Camshaft Position Sensor, Oil Control Valve, Oxygen Sensor (Up/Down), Canister Purje Solenoid Valve, Stop Lamp Switch, A/Con Relay, C/Fan Relay (High/Low), Crankshaft Position Sensor (2.0L), Camshaft Position Sensor (1.6L) |
| A/CON | 10A | A/Con Relay |
