Kia Stinger 2022 Fuse Box

Kia Stinger 2022 Fuse Box Info

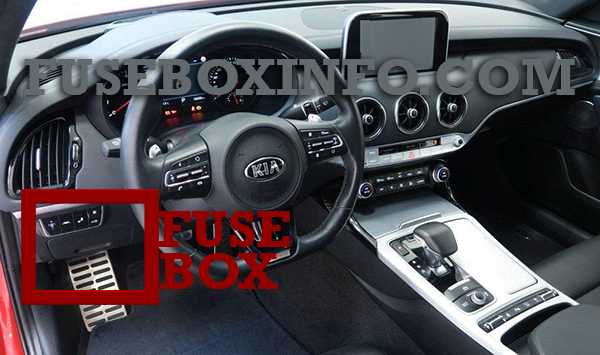

Passenger compartment fuse box location:

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.



Engine compartment fuse box location:

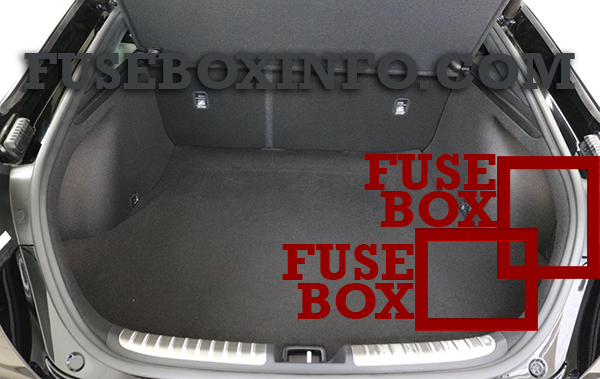

Luggage compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay Name Rating Functions
MULTI MEDIA 1 25A Low DC-DC Converter (Audio)
AIR BAG 15A SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
ROOM LAMP 10A Overhead Console Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp
STOP LAMP 10A IBU, Stop Lamp Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
E-SHIFTER 2 10A Electronic Auto Transmission Shift Lever (IG1)
IBU 4 10A IBU (IG1)
MULTI MEDIA 3 10A Instrument Cluster, Head-Up Display, Air Conditioner Switch, Wireless Charger
MULTI MEDIA 2 10A Audio or A/V & Navigation Head Unit
MEMORY 10A Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display
IBU 3 10A IBU (B+)
E-SHIFTER 1 10A Electronic Auto Transmission Shift Lever (B+)
AIR BAG IND 10A Instrument Cluster, Passenger/Rear Seat Belt Reminder Indigator
IBU 1 10A IBU (B+)
DRIVER DOOR MODULE 10A Driver Door Module, Driver/Passenger Power Outside Mirror
MODULE 2 10A IBU (IG2)
MODULE 3 10A Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay
SEAT HEATER 25A Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module
TAILGATE 10A Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 2 10A IBU (B+ (ESCL)), Rain Sensor
MODULE 8 10A Cooling Fan Controller (BLDC Motor)
MODULE 7 10A IBU, AWD (All Wheel Drive) ECM (Electronic Control Module), Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), 360/ camera monitoring, Crash Pad Switch, Steering Angle Sensor, Steering Tilt & Telescopic Module, ESC (Electronic Stability Control) Unit, Multi-Function Camera Unit, Front Radar
POWER HANDLE 15A Steering Tilt & Telescopic Module
MODULE 9 10A Driver Air Lumbar Control Unit
MODULE 1 10A Data Link Connector, Console Switch (Upper), Driver/ Passenger/Door Mood Lamp, Mood Lamp (Garnish), Mood Lamp Monitor, Hazard Switch, Mood Lamp Unit
MODULE 5 10A Air Conditioner Control Module, Air Conditioner Switch, Audio, A/V & Navigation Head Unit, Data Link Connect, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, Wireless Charger
SUNROOF 20A Sunroof Control Unit (Glass)
PASSENGER POWER WINDOW 25A Passenger Safety Power Window Module, Rear Safety Power Window Module Right Handle side, Rear Door Module Right Handle side
CHARGER 10A Front/Rear USB Charger, Front Power Outlet (Cigar)
WASHER 15A Multifunction Switch
MDPS 10A MDPS (Motor Driven Power Steering) Unit
DRIVER POWER SEAT 30A Driver Integrated memory system Control Module, Driver Seat Manual Switch
PASSENGER POWER SEAT 30A Passenger Seat Manual Switch
DRIVER POWER WINDOW 25A Driver Power Window Module, Rear Power Window Module Left Handle side, Rear Safety Power Window Module Left Handle side
MODULE 6 10A IBU, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (Power Outlet Relay)
A/C 10A Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)
MODULE 4 10A Head Lamp Left Handle side/Right Handle side, AFS Control Unit



Engine compartment fuse box:

Fuse/Relay Name Rating Functions
ALT

175A

200A

Alternator, Multi Fuse - C/FAN1/B+4/B+3/B+2/B+1/ EOP/BLOWER/POWER TAIL GATE
START 30A Start Relay
C/FAN 2 100A [BLDC (Brushless Direct Current) Motor & (Gasoline) 3.3 T-GDi] ] Cooling Fan Controller
C/FAN 1 80A [BLDC (Brushless Direct Current) Motor Smartstream G2.5 FR T-GDi] Cooling Fan Controller
B+3 50A Instrument Panel Junction Block (Fuse - STOP LAMP/ Leak Current Autocut Device (Fuse - INTERIOR LAMP, DDM, IBU3, MEMORY, MULTI MEDIA1, MULTI MEDIA2, MULTI MEDIA3))
B+2 50A Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE/SUNROOF/DRIVER POWER SEAT/ PASSENGER POWER SEAT)
B+1 50A Instrument Panel Junction Block (Fuse - SEAT HEATER/TAIL GATE/MODULE 9/PASSENGER POWER WINDOW/DRIVER POWER WINDOW)
EOP 50A Electric Oil Pump
ESC 1 25A ESC (Electronic Stability Control) Control Module
ESC 2 25A ESC (Electronic Stability Control) Control Module
BLOWER 40A Blower Relay
POWER TAILGATE 30A Power Tail Gate Module
MDPS 100A MDPS (Motor Driven Power Steering) Unit
B+4 60A Engine Control Relay, Fuse - HORN / WIPER1 / H/ BEAM H/LAMP / B/ALARM)
E-CVVT 1 40A [Smartstream G2.5 FR T-GDi] E-CVVT Relay
VACUUM PUMP 20A [(Gasoline) 2.0 FR T-GDi, (Gasoline) 3.3 T-GDi] Vacuum Pump Relay
AWD 20A AWD (All Wheel Drive) ECM (Electronic Control Module)
IG 2 20A IG2 Relay
POWER OUTLET 2 20A Rear Power Outlet
POWER OUTLET 1 20A Front Power Outlet #1
A/C 1 10A Air Conditioner Control Module
E-CVVT 3 20A [Smartstream G2.5 FR T-GDi] ECM (Engine Control Module)
E-CVVT 2 20A [Smartstream G2.5 FR T-GDi] ECM (Engine Control Module)
ESC 3 10A ESC (Electronic Stability Control) Control Module
ECU 3 10A ECM (Engine Control Module)
ECU 2 15A ECM (Engine Control Module)
HORN 20A Horn Relay
WIPER 1 30A Wiper Power Relay
TCU 2 15A TCM (Transmission Control Module), Electronic Oil Pump
O2SENSOR 15A [Smartstream G2.5 FR T-GDi] Oxygen Sensor (UP/ DOWN) [(Gasoline) 3.3 T-GDi] Oxygen Sensor #1/#2/#3/#4
TCU 1 20A TCM (Transmission Control Module)
WIPER 2 10A ECM (Engine Control Module), IBU, Wiper Motor, Front Wiper (Low) Relay
SENSOR 1 15A Fuel pump relay [Smartstream G2.5 FR T-GDi ] Injector #1/#2/#3/#4
IGN COIL 20A [Smartstream G2.5 FR T-GDi] Ignition Coil #1/#2/#3/#4 [(Gasoline) 3.3 T-GDi] Ignition Coil #1/#2/#3/#4/#5/#6
H/BEAM H/LAMP 10A Head Lamp (High) Relay
ECU 1 20A ECM (Engine Control Module)
SENSOR 2 10A Recirculation Valve Control Solenoid Valve, Purge Control Solenoid Valve, Canister Close Valve[Smartstream G2.5 FR T-GDi] Variable Oil Pump, Oil Control Valve, Air Conditioner Relay [(Gasoline) 3.3 T-GDi] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/ #3/#4 (Intake/Exhaust), Variable Exhaust Flap Actuator LH/RH
EWP 20A Electric Water Pump
A/C 2 10A Air Conditioner Relay



Luggage compartment:

Rear fuse box panel:

Fuse/Relay Name Rating Functions
ECS 15A ECS (Electronic Control Suspension) Unit
REAR S/HEAT 20A Rear Seat Warmer Control Module
HEAT MIRROR 10A Air Conditioner Switch, Driver/Passenger Power Outside Mirror
FUEL PUMP 20A Fuel Pump Relay
REAR HEATED 30A Rear Heated Relay
AMP 2 25A AMP (Amplifier) (MOBIS/PREMIUM)
AMP 1 30A Low DC-DC Converter (AMP (Amplifier))
IG 1 15A IG1 Relay
ACC 30A Instrument Panel Junction Block ((Fuse - POWER OUTLET/ CHARGER/ MODULE6)
B+1 30A Instrument Panel Junction Block (Fuse - IBU1/IBU2/ IPS2/IPS5/IPS6/IPS8/IPS9/IPS10))
B+2 30A Instrument Panel Junction Block (Fuse - E-SHIFTER/ MODULE1/IPS1/IPS4/IPS7)



Battery box fuse panel:

Fuse/Relay Name Rating Functions
B+1 100A Rear Sub Junction Block (Fuse - FUEL PUMP / REAR HEATED/ AMP1)
B+2 80A Rear Sub Junction Block (DCU Relay, Fuse - ECS1 / REAR S/HEAT / IG1)
START 40A Engine Room Junction Block (Power Outlet Relay), Fuse -START / ECU2 / TCU1)
AMS 10A Battery Sensor
