Kia Sportage 2022 Fuse Box Info

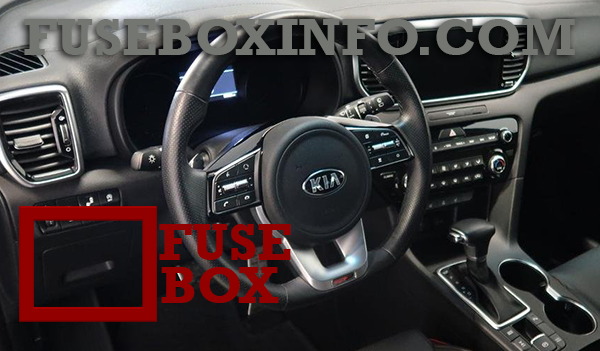

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

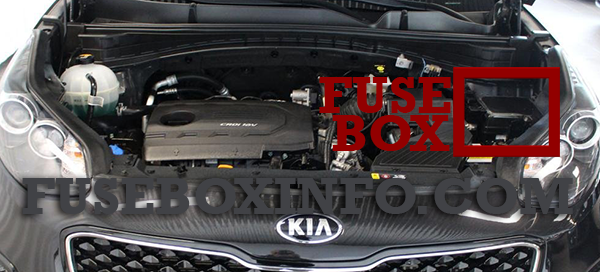

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| MDPS | 7.5A | MDPS Unit |
| MODULE 2 | 10A | Cooling Fan Unit |
| SMART KEY 1 | 10A | Smart Key Control Module/Immobilizer Module |
| A/BAG IND | 7.5A |
Instrument Cluster [Audio & Manual A/C] Hazard Switch [Audio & Auto A/C] A/C Control Module [Navigation] Center Facia Lamp |
| MODULE 4 | 10A | Console Switch, Blind Spot Detection Radar LH/RH, AWD ECM, BCM, Lane Departure Warning Control Module |
| AIR BAG | 15A | SRS Control Module, Passenger seat Occupant Detection Unit |
| START | 7.5A |
[W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), Ignition Switch [With Smart Key / IMMO.] Transmission Range Switch, ECM, Smart Key Control Module |
| MODULE 3 | 10A | Front/Rear Seat Warmer Control Module, ATM Shift Lever ILL., Front Air Ventilation Seat Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Audio, A/C Control Module, Multipurpose Check Connector, Adaptive Front Lighting Module, Crash Pad Switch, Console Switch |
| CLUSTER | 10A | Instrument Cluster |
| MODULE 9 | 20A | PCB Block (Fuse - ABS 3, VACUUM PUMP 2, ECU 6, AEB, TCU 2, MODULE) |
| HEATED STEERING | 15A | BCM |
| MODULE 6 | 7.5A | Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| MODULE 5 | 10A | BCM, Smart Key Control Module |
| A/C 2 | 7.5A | A/C Control Module |
| MODULE 1 | 10A | BCM, ATM Shift Lever |
| P/ WINDOW LH | 25A | Power Window Main Switch |
| A/C 1 | 7.5A | A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay) |
| WIPER RR | 15A | Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay) |
| WASHER | 15A | Multifunction Switch |
| SMART KEY 3 | 10A |
[W/O Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module, Start/Stop Button Switch |
| STOP LAMP | 7.5A | Smart Key Control Module, Stop Lamp Switch |
| P/ WINDOW RH | 25A | Power Window Main Switch, Passenger Power Window Switch |
| MEMORY | 10A | Instrument Cluster, BCM, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Electro Chromic Mirror, A/C Control Module, Console Switch, Crash Pad Switch |
| SUN ROOF 1 | 20A | Panorama Sunroof |
| TAIL GATE OPEN | 10A | Tail Gate Relay |
| INTERIOR LAMP | 10A | Ignition Key Ill.& Door Warning Switch, Room Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Luggage Lamp, Glove Box Lamp, Wireless Charger |
| SMART KEY 2 | 15A | Smart Key Control Module |
| ACC | 10A | Rear USB Charger, AMP, Power Outside Mirror Switch, PCB Block(Power Outlet Relay), Smart Key Control Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger |
| MULTI MEDIA | 15A | Audio, A/V & Navigation Head Unit, Rear USB Charger |
| S/HEATER DRV/PASS | 20A | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| SUN ROOF 2 | 20A | Panorama Sunroof |
| P/SEAT (PASS) | 30A | Passenger Seat Manual Switch |
| MODULE 8 | 7.5A | Key Solenoid, On Board Diagnostic Module |
| POWER OUTLET | 20A | Front Power Outlet #1 (Front Cigarette Lighter) |
| S/HEATER REAR | 20A | Rear Seat Warmer Control Module |
| DOOR LOCK | 20A | Door Lock/Unlock Relay |
| 4WD | 20A | AWD ECM |
| MODULE 7 | 10A | Hazard Switch, Driver/Passenger Smart Key Outside Handle, AEB Sensor |
| AMP | 25A | AMP |
|
SAFETY P/ WINDOW (DRV) |
25A | Driver Safety Power Window Module |
| HEATED MIRROR | 10A | Driver/Passenger Power Outside Mirror, A/C Control Module |
| P/SEAT (DRV) | 30A | Driver Seat Manual Switch |
| MODULE 10 | 10A | BCM |
| SAFETY P/WINDOW (PASS) | 25A | Passenger’s seat Safety Power Window Module |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| COOLING FAN 3 | 80A | Cooling Fan Motor |
| MDPS | 80A | MDPS Unit |
| B+ 1 | 60A |
Smart Junction Block (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH), IPS 6 (1CH), Fuse - AMP), Module 10 |
| B+ 2 | 60A | Smart Junction Block (IPS 1 (5CH), Fuse - MODULE 7, SMART KEY 2, SMART KET 3, STOP LAMP) |
| B+ 3 | 50A |
Smart Junction Block (Fuse - SUNROOF 1, SUNROOF 2, S/HEATER DRV/PASS, S/HEATER REAR, SAFETY P/WINDOW, Power Window Relay) |
| BLOWER | 40A | Blower Relay |
| REAR HEATED | 40A | Rear Heated Relay |
| IG1 | 40A | [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG1)/PDM (ACC) Relay) |
| IG2 | 30A | Start Relay, [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG2) Relay) |
| B+ 4 | 50A |
Smart Junction Block (Fuse - AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPEN, DOOR LOCK, Leak Current Autocut Device Relay), Module 8 |
| COOLING FAN 1 | 50A | Cooling Fan 1 Relay |
| ABS 1 | 25/30/40A | ESC Control Module, Multipurpose Check Connector |
| POWER LIFTGATE | 40A | Power Tail Gate Module |
| ABS 2 | 25/30/40A | ESC Module |
| COOLING FAN 2 | 40A | Cooling Fan 1 Relay |
| WIPER FRT 2 | 10A | BCM |
| E-CVVT 2 | 20A | PCM |
| E-CVVT 1 | 20A | PCM |
| WIPER FRT 1 | 30A | [W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay |
| TCU 1 | 15A | PCM |
| A/C | 10A | Air Control Unit Relay |
| ECU 3 | 20A | PCM |
| HORN | 15A | Horn Relay |
| BATTERY MANAGEMENT | 10A | Battery Sensor |
| SENSOR 2 | 10A | Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, RCV Control Solenoid |
| SENSOR 1 | 15A | Oxygen Sensor (Up/Down) |
| ECU 2 | 20A | Ignition Coil #1/#2/#3/#4 |
| ECU 4 | 15A | PCM |
| SENSOR 3 | 10A | E/R Junction Block (Cooling Fan 1 Relay), Canister Close Valve, E/R Junction Block (Air Control Unit) |
| MODULE 2 | 10A | E/R Junction Block (Fuel Pump Relay) |
| VACUUM PUMP 1 | 20A | Vacuum Pump |
| DEICER | 15A | E/R Junction Block (Deicer Relay) |
| FUEL PUMP | 20A | Fuel Pump Relay |
| MODULE 1 | 7.5A | Stop Lamp Switch |
| B/ALARM HORN | 10A | E/R Junction Block (B/Alarm Horn Relay) |
| H/LAMP HI | 10A | BI-Function H/LP Relay |
| FCA | 10A | Forward Collision-avoidance Assist (FCA) Sensor |
| ABS 3 | 10A | ESC Module |
| VACUUM PUMP 2 | 15A | Vacuum Pump, Vacuum Switch |
| POWER OUTLET 1 | 20A | Front Power Outlet #2 |
| ECU 6 | 10A | PCM |
| TCU 2 | 15A | Transmission Range Switch |
| B/UP LAMP | 10A | Rear Bumper Lamp LH/RH, Electro Chromic Mirror |
| POWER OUTLET 2 | 20A | Rear Power Outlet |
| ECU 1 | 30A | Engine Control Relay |
