Kia K5 2022 Fuse Box

Kia K5 2022 Fuse Box Info

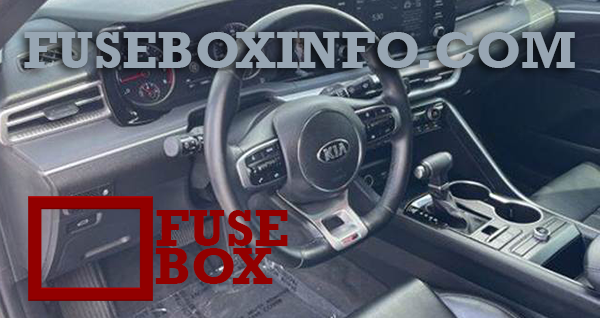

Passenger compartment fuse box location:

The fuse box is located at the left side of the steering column at the bottom of the instrument panel.



Engine compartment fuse box location:





Fuse Box Diagram | Layout



Passenger compartment fuse box:

Fuse/Relay Name Rating Functions
S/HEATER (FRT) 25A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
TRUNK 10A Trunk Lid Relay
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay
MODULE1 7.5A Front Console Switch #1, Key Solenoid, Driver/Passenger Smart Key Outside Handle
CHILD LOCK 15A Rear Child Lock Relay, Rear Child Unlock Relay
MODULE3 10A Hazard Switch, Front Mood Lamp Right Handle side, Front Mood Lamp Unit, Driver Door Module, Driver/Passenger Door Mood Lamp
S/HEATER (RR) 25A Rear Seat Warmer Control Module
P/SEAT (PASS) 30A Passenger Seat Manual Switch
MODULE6 10A Sport Mode Switch, Driver Door Module
SAFETY P/WINDOW (RH) 30A Passenger Power Window Switch, Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle
P/SEAT (DRV) 30A Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
IBU1 15A Ignition Switch, IBU (Integrated Body Control Unit)
IAU 10A Not Used
AMP 25A DC-DC Converter (AMP (Amplifier)), AMP (Amplifier)
SAFETY P/WINDOW (LH) 30A Driver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side
SPARE1 15A Not Used
BRAKE SWITCH 10A IBU (Integrated Body Control Unit), Stop Lamp Switch
SUNROOF2 20A Sunroof Controller (Blind Motor), Data Link Connector
AIR BAG2 10A SRS (Supplemental Restraint System) Control Module
AIR BAG1 15A SRS (Supplemental Restraint System) Control Module
MEMORY 10A Head-up Display, Driver IMS (Integrated memory system) Module, Driver/ Passenger Power Outside Mirror, Rain Sensor, Instrument Cluster, Air Conditioner Control Module, Air Conditioner Switch
MULTI MEDIA 15A DC-DC Converter (Audio), Audio, Audio/Video & Navigation Head Unit
SUNROOF1 20A Sunroof Controller (Glass Motor)
MODULE7 10A Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit), Front Console Switch #1/#2, Lane Keeping Assist Unit, IBU (Integrated Body Control Unit), Crash Pad Switch, Parking Collision Avoidance Assist Unit
MDOULE5 10A Stop Lamp Switch
MODULE8 10A AMP (Amplifier), Driver IMS (Integrated memory system) Module, Front Wireless Charger, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, ATM (Automatic Transmission) Shift Lever Indicator, Data Link Connector, Audio, Audio/Video & Navigation Head Unit, Air Conditioner Switch, 360/ camera monitoring system Unit, Air Conditioner Control Module, DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror
MODULE2 10A Cooling Fan Motor, Parking Collision Avoidance Assist Unit, Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Engine Room Junction Block (W/S Heated Glass Left Handle side/Right Handle side Relay)
MDPS 7.5A MDPS (Motor Driven Power Steering) Unit (Column Type)
A/C1 7.5A Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)
MODULE4 10A Rear USB Charger, PCB Block (Power Outlet Relay), Console USB Charger (Outside Rear Left Handle side/Right Handle side), Console USB Charger (Inside), AMP (Amplifier), IBU (Integrated Body Control Unit), DC-DC Converter (Audio/AMP (Amplifier)), Audio, Audio/Video & Navigation Head Unit, 360/ camera monitoring system Unit, Parking Collision Avoidance Assist Unit
MODULE9 7.5A IBU (Integrated Body Control Unit)
CLUSTER 10A Instrument Cluster, Head-up Display
WASHER 15A Multifunction Switch
START 7.5A B/Alarm Relay, IBU (Integrated Body Control Unit), ECM (Engine Control Module), Transmission Range Switch, Engine Room Junction Block (Start Relay)
POWER OUTLET 20A Not Used
IBU2 7.5A IBU (Integrated Body Control Unit)
A/BAG IND 7.5A Instrument Cluster, Overhead Console Lamp
SPARE2 10A Not Used
A/C2 10A Air Conditioner Control Module



Engine compartment fuse box:

Fuse/Relay Name Rating Functions
IG2 30A Engine Room Junction Block (Start Relay), PCB Block (Ignition switch2 Relay)
BLOWER 40A Engine Room Junction Block (Blower Relay)
ABS1 40A ESC (Electronic Stability Control) Module
B+2 50A ICU Junction Block (Instrument Panel Module1, Instrument Panel Module3, Instrument Panel Module4, Fuse - AMP (Amplifier), IBU (Integrated Body Control Unit)1)
B+3 50A ICU Junction Block (Instrument Panel Module5, Instrument Panel Module6, Instrument Panel Module7, Instrument Panel Module8, Instrument Panel Module9, Instrument Panel Module10, Instrument Panel Module11)
B+1 50A

ICU Junction Block (Fuse - P/SEAT(Driver), P/ SEAT(PASS), CHILD LOCK, MODULE1,

S/HEATER(RR), SAFETY P/WINDOW(Left Handle side), SAFETY P/WINDOW(Right Handle side)

COOLING FAN 80A Cooling Fan Motor
MDPS 80A MDPS (Motor Driven Power Steering) Unit
CVVD1 30A [Smartstream G 1.6 T-GDi] CVVD Actuator
E-CVVT1 40A [Smartstream G 2.5 T-GDi] Engine Room Junction Block (E-CVVT Relay)
IG1 40A PCB Block (Ignition switch1 Relay, ACC Relay)
REAR HEATED 50A Engine Room Junction Block (Rear Heated Relay)
EPB 60A ESC (Electronic Stability Control) Module
B+5 60A PCB Block (Engine Control Relay, Fuse - Air Conditioner1, WIPER1, TCU (Transmission Control Unit)1, HORN, ECU (Engine Control Unit)2)
OIL PUMP1 60A [Smartstream G 1.6 T-GDi] Electronic Oil Pump
OIL PUMP 60A [Smartstream G 2.5 T-GDi] Electronic Oil Pump
POWER OUTLET1 40A PCB Block (Power Outlet Relay)
W/S HEATED GLASS RH 40A W/S Heated Glass Right Handle side Relay
W/S HEATED GLASS LH 40A W/S Heated Glass Left Handle side Relay
TCU5 60A [Smartstream G 2.5 T-GDi] TCM (Transmission Control Module)
B+4 60A

ICU Junction Block (Long Term Load Latch Relay, Fuse - MODULE3, AIR BAG2, SUNROOF1, SUNROOF2,

S/HEATER (FRT), TRUNK, BRAKE SWITCH, DOOR LOCK)

ECU5 10A [Smartstream G 1.6 T-GDi] ECM (Engine Control Module)
AMS 10A Battery Sensor
VACUUM PUMP1 20A [Smartstream G 2.5 T-GDi] Vacuum Relay
4WD 20A [Smartstream G 1.6 T-GDi] Audio/Video 4WD (4 Wheel Drive) ECU (Engine Control Unit)
FUEL PUMP1 20A Engine Room Junction Block (Fuel Pump Relay)
VACUUM PUMP2 10A [Smartstream G 2.5 T-GDi] ESC (Electronic Stability Control) Module
E-CVVT3 20A [Smartstream G 2.5 T-GDi] ECM (Engine Control Module)
HEATED MIRROR 10A Air Conditioner Switch
E-CVVT4 20A [Smartstream G 2.5 T-GDi] ECM (Engine Control Module)





PCB Block: Smartstream G1.6 T-GDi

Fuse/Relay Name Rating Functions
WIPER1 30A PCB Block (Wiper Relay)
WIPER2 10A IBU (Integrated Body Control Unit), ECM (Engine Control Module)
TCU1 20A TCM (Transmission Control Module)
ECU2 15A ECM (Engine Control Module)
ECU1 20A ECM (Engine Control Module)
ECU4 15A ECM (Engine Control Module)
TCU2 15A TCM (Transmission Control Module), Transmission Range Switch
A/C1 10A Engine Room Junction Block (Air Conditioner Relay)
SENSOR1 15A Oxygen Sensor (Up/Down)
OIL PUMP2 10A Electronic Oil Pump
CVVD2 10A CVVD Actuator
POWER OUTLET2 20A Front Power Outlet Left Handle side
POWER OUTLET3 20A Front USB Charger
HORN 20A PCB Block (Horn Relay)
SENSOR2 10A Oil Control Valve (Intake/Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay)
FUEL PUMP2 10A Engine Room Junction Block (Fuel Pump Relay)
ECU3 10A ECM (Engine Control Module)
ABS3 10A ESC (Electronic Stability Control) Module
IGN COIL 20A Ignition Coil #1 ~ #4
CRUISE 10A Smart Cruise Control Unit



PCB Block: Smartstream G2.5 T-GDi

Fuse/Relay Name Rating Functions
WIPER1 30A PCB Block (Wiper Relay)
WIPER2 10A IBU (Integrated Body Control Unit), ECM (Engine Control Module)
TCU1 20A Not Used
ECU2 15A ECM (Engine Control Module)
ECU1 20A ECM (Engine Control Module)
ECU4 15A ECM (Engine Control Module)
TCU2 15A TCM (Transmission Control Module)
A/C1 10A Engine Room Junction Block (Air Conditioner Relay)
INJECTOR 15A Injector #1 ~ #4
SENSOR1 15A Oxygen Sensor (Up/Down)
POWER OUTLET2 20A Front Power Outlet Left Handle side
POWER OUTLET3 20A Front USB Charger
HORN 20A PCB Block (Horn Relay)
SENSOR2 10A Oil Control Valve (Exhaust), Variable Oil Pump Solenoid Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control) Control Solenoid Valve, Canister Close Valve, Engine Room Junction Block (Air Conditioner Relay)
FUEL PUMP2 10A Engine Room Junction Block (Fuel Pump Relay)
ECU3 10A ECM (Engine Control Module)
ABS3 10A ESC (Electronic Stability Control) Module
IGN COIL 20A Ignition Coil #1 ~ #4
CRUISE 10A Smart Cruise Control Unit
