Jeep Grand Cherokee 2007 Fuse Box Info
Fuse box location:
The fuse box is on the lower instrument panel just to the left of the steering column.
Engine compartment fuse box:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 30A | Audio Amp (B+) |
| 2 | 15A | Sunroof (B+) |
| 3 | 10A | Htd Mirror (EBL) |
| 4 | 20A | Rr Pwr Out (B+) |
| 5 | 10A | Rr HVAC (R/O) (XK Only) |
| 6 | - | Spare (B+) |
| 7 | 20A | Door Locks (B+) |
| 8 | 15A | Steer Col Lock (B+) (ELV) |
| 9 | 20A | Pwr Outlet (B+) |
| 10 | 10A | Final Drive Control Module (FDCM), Heater Ventilation, Air Conditioning (HVAC), Switch Bank, Transfer Case Switch, O/H, Heater Ventilation, Air Conditioning (HVAC) Relay, Rear Park Assist |
| 11 | - | Spare (B+) |
| 12 | 10A | Door Mods, Mem. Sw, O/H Lamps, IP Courtesy Lamps, Glove Box Lamp (B+) |
| 13 | 10A | Autowipe (R/A) |
| 14 | 20A | Cigar Ltr (R/A) |
| 15 | 10A | Tire Pressure Transducers (R/O) |
| 16 | 10A | Steering Control Module (SCM), Diag. Connector, Cluster (B+) |
| 17 | 15A | Flipper Glass (B+) |
| 19 | - | Spare (R/S) |
| 20 | 10A | Sentry Key Remote Entry Module (SKREEM), Cluster (R/S) |
| 21 | - | Spare (Acc Delay) |
| 22 | 15A | Rear Wiper (B+) |
| 24 | 10A | Power Distribution Center (PDC) Relays, Final Drive Control Module (FDCM), Front Control Module (FCM) (R/S), A580 (R/S) |
| 25 | 10A | Shifter Assy (BTSI), Trans. Case Switch, ESP/ABS, Brake Supp Rly Coil (R/S) |

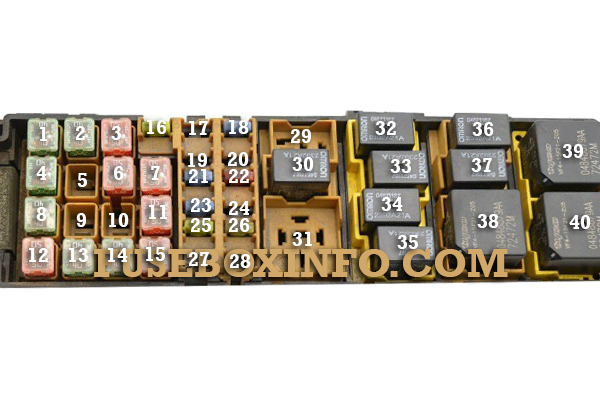

Engine compartment fuse box 1 (Power Distribution Center):
| Fuse/Relay N° | Rating | Functions |
| 1 | 40A | HVAC Blower |
| 2 | 30A | Power Outlets |
| 3 | 30A | Rr Wiper/Ign R/O |
| 4 | 30A | ABS Pump |
| 5 | 50A | Cabin Htr 1 (Diesel Only) |
| 6 | 50A | Auto Shut Down (ASD) |
| 7 | 30A | Rr HVAC (XK Only) |
| 8 | 40A | Acc Delay/Seats |
| 9 | 40A | Pwr Liftgate (XK Only) |
| 10 | 40A | Starter/Junction Block (JB) Power |
| 11 | 30A | Cig Ltr/T-Tow |
| 12 | 40A | Rear Window Defogger (EBL)/Htd Mirror |
| 13 | 40A | Junction Block (JB) Power |
| 14 | 50A | Cabin Htr 2 (Diesel Only) |
| 15 | 50A | Cabin Htr 3 (Diesel Only) |
| 16 | 25A | Integrated Power Module (IPM)/Coils |
| 17 | - | Spare |
| 18 | 20A | EATX/AC Clutch |
| 19 | 20A | Ign Sw |
| 20 | 20A | PCM Batt (Gasoline Only) |
| 21 | 30A | ABS Valves |
| 22 | 20A | T-Tow (BUX) |
| 23 | 20A | Final Drive Control Module (FDCM) |
| 24 | 20A | Fuel Pump |
| 25 | 20A | Final Drive Control Module (FDCM) |
| 26 | 15A | Powertrain Control Module (PCM) Auto Shut Down (ASD) (Diesel Only) |
| 27 | 15A | Brake/Stop Lamps |
| 28 | 25A | Next Generation Controller (NGC)/ Injectors |

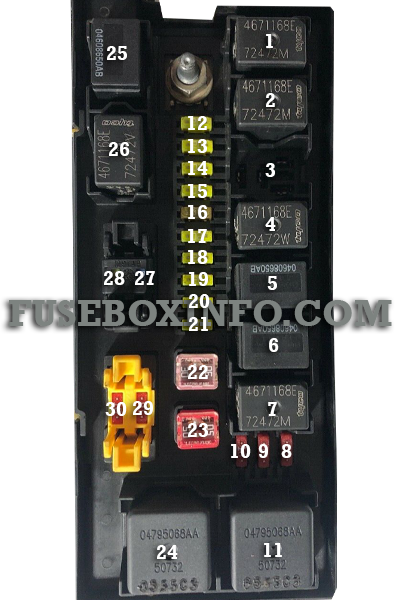

Engine compartment fuse box 2 (Integrated Power Module):
| Fuse/Relay N° | Rating | Functions |
| 8 | 10A | Lt Park Lamps |
| 9 | 10A | Trailer-Tow Park Lamps |
| 10 | 10A | Rt Park Lamps |
| 12 | 20A | Front Control Module (FCM) Batt #4 |
| 13 | 20A | Front Control Module (FCM) Batt #2 |
| 14 | 20A | Adjustable Pedal |
| 15 | 20A | Ft Fog Lamps |
| 16 | 20A | Horn |
| 17 | 20A | Rear Fogs |
| 18 | 20A | Front Control Module (FCM) Batt #1 |
| 19 | 20A | Lt Trailer-Tow Stop/ Turn |
| 20 | 20A | Front Control Module (FCM) Batt #3 |
| 21 | 20A | Rt Trailer-Tow Stop/ Turn |
| 22 | 30A | Final Drive Control Module (FDCM) MOD |
| 23 | 50A | Radiator Fan |
| 27 | 15A | Ignition Off Draw (IOD) #1 |
| 28 | 20A | Ignition Off Draw (IOD) #2 |
| 29 | 10A | Occupant Restraint Controller (ORC) R/S |
| 30 | 10A | Occupant Restraint Controller (ORC) R/O |
