Ford Mustang 2001 Fuse Box Info

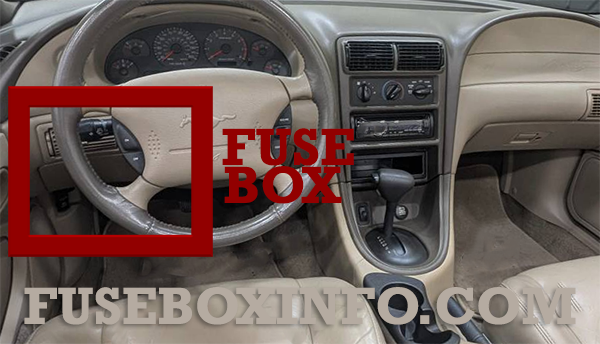

Passenger compartment fuse box location:
The fuse box is located below and to the left of the steering wheel by the brake pedal.

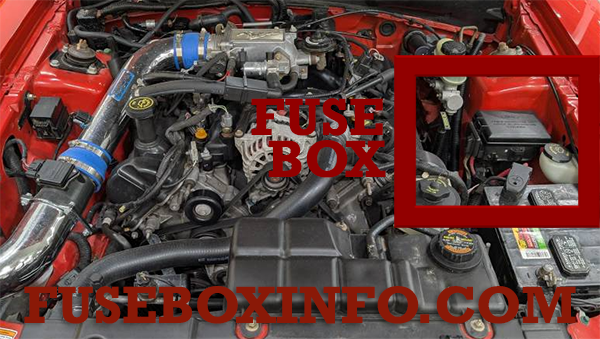

Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Cigar Lighter |
| 2 | 20A | Engine Controls |
| 3 | - | Not Used |
| 4 | 10A | RH Low Beam Headlamp |
| 5 | 15A | Instrument Cluster, Traction Control Switch |
| 6 | 20A | Starter Motor Relay |
| 7 | 15A | GEM, Interior Lamps |
| 8 | 20A | Engine Controls |
| 9 | - | Not Used |
| 10 | 10A | LH Low Beam Headlamp |
| 11 | 15A | Back-up Lamps |
| 12 | - | Not Used |
| 13 | 15A | Electronic Flasher |
| 14 | - | Not Used |
| 15 | 15A | Power Lumbar |
| 16 | - | Not Used |
| 17 | 15A | Speed Control Servo, Shift Lock Actuator |
| 18 | 15A | Electronic Flasher |
| 19 | 15A | Power Mirror Switch, GEM, Anti-Theft Relay, Power Door Locks, Door Ajar Switches |
| 20 | 15A | Convertible Top Switch |
| 21 | 5A | Instrument Cluster and Engine Control Memory |
| 22 | - | Not Used |
| 23 | 15A | A/C Clutch, Defogger Switch |
| 24 | 30A | Climate Control Blower Motor |
| 25 | 25A | Luggage Compartment Lid Release |
| 26 | 30A | Wiper/Washer Motor, Wiper Relays |
| 27 | 25A | Radio |
| 28 | 15A | GEM, Overdrive Cancel Switch |
| 29 | 15A | ABS Module |
| 30 | 15A | DRL Module |
| 31 | 10A | Data Link Connector |
| 32 | 15A | Radio, CD Player, GEM |
| 33 | 15A | Stop Lamp Switch, Speed Control Deactivation Switch |
| 34 | 20A | Instrument Cluster, CCRM, Data Link Connector, Securilock Transciever Module |
| 35 | 15A | Shift Lock Actuator, PCM, Speed Control Servo, ABS Module |
| 36 | 15A | Airbag Control Module |
| 37 | 10A | Adjustable Illumination |
| 38 | 20A | Highbeams |
| 39 | 5A | GEM |
| 40 | - | Not Used |
| 41 | 15A | Brake Lamp |
| 42 | - | Not Used |
| 43 | 20A CB | Power Windows |
| 44 | - | Not Used |
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 50A (4.6L)/ 30A (3.8L) |
Electric Cooling Fan Motor |
| 2 | 30A | Headlamps |
| 3 | 40A | Starter Motor Relay, Ignition Switch |
| 4 | 40A | Ignition Switch |
| 5 | 40A | Ignition Switch |
| 6 | 40A | Instrument Cluster, PCM |
| 7 | 30A | Secondary Air Injection (3.8L only) |
| 8 | 50A | ABS Module |
| 9 | 20A | Auxiliary Power Point |
| 10 | 30A | Parklamps |
| 11 | 30A | Rear Window Defrost Control |
| 12 | 40A | Power Windows, Power Locks |
| 13 | - | Not Used |
| 14 | 20A | Fuel Pump |
| 15 | 10A | Radio |
| 16 | 20A | Horn |
| 17 | 20A | Anti-Lock Brake System |
| 18 | 30A | Power Seats |
| 19 | . | Not Used |
| 20 | 20A | Generator |
| 21 | - | Not Used |
| 22 | - | Not Used |
| 23 | - | Not Used |
| 24 | 20A | A/C Pressure (3.8L only) |
| 25 | - | Not Used |
| 26 | 30A | PCM |
| 27 | 20A | DRL Module, Foglamp Relay |
| 28 | 25A | Convertible Top |
| 29 | Diode | Convertible Top Circuit Breaker |
| RELAY 1 | - | Fog Lamp Interrupt |
| RELAY 2 | - | Int. Wiper |
| RELAY 3 | - | Wiper HI/LO |
| RELAY 4 | - | Starter |
| RELAY 5 | - | Fog Lamps |
