Jeep Wagoneer S 2024 Fuse Box Info

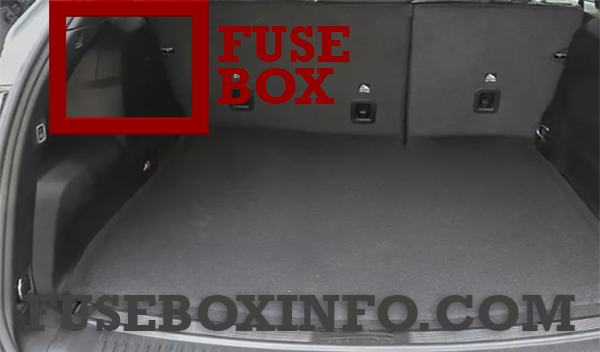

Luggage compartment fuse box location:

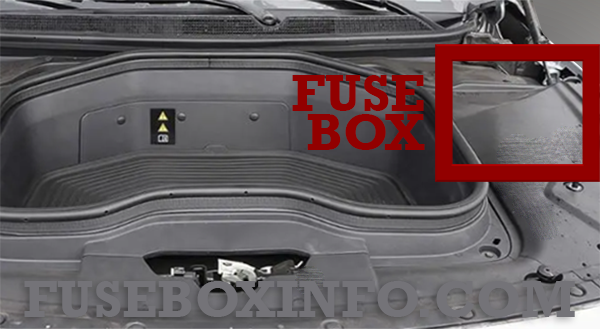

Under hood compartment fuse box location:
Fuse Box Diagram | Layout
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | - | Spare |
| 09 | - | Spare |
| 10 | - | Spare |
| 11 | 50A | MOD_BCM FEED #2 |
| 12 | 5A | INTELLIGENT BATTERY SENSOR (IBS) |
| 13 | - | Spare |
| 14 | 20A | MOD DOOR MUX_PASSENGER REAR OR SMART MOTOR |
| 15A | 10A | INTELLIGENT EVENT BASE LIGHTING MODULE/ANIMATION LIGHTING- TAILLAMP |
| 15B | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 16 | 10A | IDCM/AMD |
| 17 | - | Spare |
| 18 | 20A | 400V ELECTRIC OIL PUMP EDM REAR |
| 19A | 10A | BEV: EVU - 2_FEED #2 IHEV & BEV |
| 19B | 10A | MOD_ICS_SWITCH BANK/ASSY_OVERHEAD_CONSOLE-OCH W SUN_SHADE/HEADS UP DISPLAY (HUD)/SW_HDLP/CUTLENGTH UP FITTER/ASSY_OVERHEAD_CONSOLE-OHC W SUN_SHADE |
| 20A | 10A | ELECTRIC DRIVE MOTOR FEED #1 |
| 20B | 10A | ELECTRIC DRIVE MOTOR FEED #2 |
| 21A | 10A | ANIMATION LIGHTING - RR LT |
| 21B | 10A | KEYLESS IGNITION NODE MOD (KNM) / RADIO FREQUENCY HUB (RFHM) / BRAKE PEDAL SWITCH - NORMALLY OPEN / ELECTRIC PARK BRAKE SWITCH (EPB) |
| 22 | - | Spare |
| 23 | - | Spare |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | 20A | ELECTRIC DRIVE MOTOR FEED #2 - REAR |
| 27 | - | Spare |
| 28 | - | Spare |
| 29A | 15A | INSTRUMENT PANEL CLUSTER (IPC) / DRIVETRAIN CONTROL MOD ULE (DTCM) / DRIVER ASSISTANCE SYSTEM MODULE (DASM) / EV CU-2 / HVAC_CTRL_FT |
| 29B | 15A | Spare |
| 30 | 30A | MOD_MEMORY / POWER SEAT - PASS FRT |
| 31 | 15A | E-STOP |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | - | Spare |
| 35 | - | Spare |
| 36A | 10A | L2+: DRIVER ALERT LIGHTING MODULE (DALM) / ADAS_E_STOP (VP ONLY) BEV: EVCU-2 |
| 36B | 10A | QUIET PEDESTRIAN MODULE (QVPM) / ANIMATION LIGHTING RR RT / LIFTGATE TAILLAMP |
| 37 | 30A | TRAILER TOW ELECTRIC BRAKE_AFTERMARKET |
| 38 | 10A | HVIL-MAIN POWER FEED / HVIL-REDUNDANT POWER FEED |
| 39 | 20A | MODULE SEAT HEATER FRT (PASS) |
| 40 | 30A | MOD AUDIO AMPLIFIER #1A |
| 41 | 30A | MOD DOOR MUX_DRIVER |
| 42A | 10A | Spare |
| 42B | 10A | APO-ILLUMINATION / 2ND & 3RD ROW SEAT_SWITCHES-ILLUMINATION / REAR VIEW MIRROR |
| 43 | - | Spare |
| 44A | 20A | 12V POWER OUTLET CARGO AREA (IGN) |
| 44B | 20A | 12V POWER OUTLET CARGO AREA BATTERY |
| 45 | 15A | PORT_UCI_DUAL-USB-REAR/PORT_PWR_OR_USB CONSOLE_USB_CH_ONLY/WIRELESS CHARGING PAD - FT. CONSOLE |
| 46 | 30A | MOD_MEMORY/POWER SEAT - DRIVER FRT |
| 47 | 20A | EVCU - 2_FEED #3 (HEV & BEV) |
| 48 | 30A | MOD DOOR MUX_PASSENGER |
| 49 | 30A | MOD_IAIR_SUSPENSION (VALVES) (PF) |
| 50 | 10A | OCCUPANT RESTRAINT CONTROLLER (ORC) |
| 51 | 20A | MPAD -1 / RIMU / MID RANGE RADAR ECU |
| 52 | 15A | SSMD SEAT MASSAGE DRIVER MOD / SSMP SEAT MASSAGE PASS MOD |
| 53 | 20A | EVCU - 2 _FEED #4 (HEV & BEV) |
| 54 | 20A | MOD DOOR MUX_DRIVER REAR OR SMART MOTOR |
| 55 | 25A | TRAILER TOW MODULE #2 |
| 56 | 30A | SUNROOF |
| 57 | 20A | HAPTIC LANE FEEDBACK MODULE (HALF) / OCCUPANT CLASSIFICA TION MODULE (OCM) / TRAILER TOW MODULE (TTM) / HEADLAMP LEVELING - MOTOR FEED & REF SIGNAL TO SWITCH / MOD_SECURITY GATEWAY (SGW) / REAR VIEW MIRROR / PARKTRONICS SYSTEM MODULE (PTS) |
| 58 | 15A | BATTERY PACK CONTROL MODULE (BPCM) (BEV+HEV) |
| 59 | 15A | TELEMATICS BOX MODULE (TBM) / VEHICLE THEFT MODULE (VTM) /GATEWAY SECURITY MOD / ALARM SIREN UNIT (ASU) / ULTRASONIC ALARM MODULE (UAM, AKA INTRUSION MODULE) / CLIMATE CONTROL DISPLAY MODULE FRONT (CCDMF) |
| 60 | - | Spare |
| 61 | 30A | ASSY_TRAILER_TOW_RECEPTACLE FUSE B+ |
| 62 | 20A | MODULE SEAT HEATER FRT (DRIVER) |
| 63 | 25A | TRAILER TOW MODULE #1 |
| 64 | 5A | NFC DOOR HANDLE #2 |
| 65 | 10A | ANIMATION LIGHTING - RR RT |
| 66 | 30A | POWER LIFTGATE MODULE (PLG) |
| 67 | 20A | MOD_CRSM (HEAT SEAT RR LT) |
| 68 | 15A | PORT PWR OR USB CONSOLE USB CH_ONLY / DIGITAL TV (DTV CHINA/JAPAN) / SUNROOF |
| 69 | 15A | LUMBAR SUPPORT DRVIER & PASSENGER SW |
| 70 | - | Spare |
| 71 | 15A | BATTERY PACK CONTROL MODULE (BPCM) - REDUNDANT (BEV + HEV) |
| 72 | 10A | HEATED SEAT SWITCH - RR RT & RR LT ANIMATION LIGHTING - RR LT |
| 73 | 10A | NIGHT VISION MODULE / DRIVER MONITORING SYSTEM MODULE (DMSM) |
| 74 | 30A | MOD AUDIO AMPLIFIER |
| 75 | 5A | NFC DOOR HANDLE #3 |
| 76 | 5A | NFC DOOR HANDLE #4 |
| 77 | 20A | MOD_CRSM (HEAT SEAT RR RT) |
| 78 |
40A 50A |
MOD_BCM FEED #3 MOD_IAIR SUSPENSION (PF) |
| 79 | - | Spare |
| 80 | 10A | ELECTRIC DRIVE MOTOR FEED #1 - REAR |
| 81 | 15A | VIDEO ROUTING MODULE (VRM) / PORT_POWER_OR_USB IP_USB_CH_ONLY / FRONT PASSENGER DISPLAY MODULE (FPDM) / DVD / BLU-RAY PLAYER (DVD) / REAR WINDOW SWITCHES / MOD_HVAC_CTRL_FT / SW_BANK_UPPER (ASBM#2) |
| 82 | 15A | MOD_COMFORT STEERING WHEEL SURFACE |
| 83 | - | Spare |
| 84 | - | Spare |
| 85 | 15A | UWB_SNSR (1-7) |
| 86 | 5A | NFC DOOR HANDLE #1 |
| 87 | - | Spare |
| 88 | 30A | MOD_INVERTER 115V/230V |
| CB1 | - | Spare |
| CB2 | 10A | MOD_SPAAK |
Under hood compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 12 | - | Spare |
| 13 | 30A | BSM #2-VALVES (L2+) |
| 14 | 50A | BSM #2-MOTOR (L2+) |
| 15 | - | Spare |
| 16 | - | Spare |
| 17 | 20A | ELECTRIC OIL PUMP - EDM FRONT (400V) |
| 18 | - | Spare |
| 19 | 50A | BSM VALVES |
| 20 | 30A | L3: LIDAR WASHER PUMP |
| 21 | - | Spare |
| 22 | - | Spare |
| 23 | 10A | BEV & HEV) CHARGE PORT INDICATOR (CPIM) / SW_PHEV_EDRIVE_MODE / ELECTRIC AC COMPRESSOR (IOD) |
| 24 | 10A | (BEV & HEV) AHP (AUX HEATER PUMP) |
| 25 | 5A | (BEV & HEV) ELECTRIC AIR COMPRESSOR / ELECTRIC EXPANSION VALVE MODULE (EEXV) |
| 26 | 20A | SLM FEED_LT |
| 27 | - | Spare |
| 28 | 15A | COOLANT PROPORTIONING VALVE / HTL BYPASS VALVE |
| 29 | - | Spare |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 5A | AUTOMATIC GEARBOX SHIFTER MODULE (AGSM/GSM) |
| 33 | 5A | (BEV) ELECTRIC COOLANT HEATER (ECH) (HEV) IGCT / IGCW / PBW / HCU |
| 34 | 20A | HORN |
| 35 |
20A 15A |
(BEV) PECP (POWER ELECTRONICS COOLANT PUMP) |
| 36 | - | Spare |
| 37 |
20A 15A |
(BEV) BATTERY COOLANT PUMP (BCP) |
| 38 | 20A | (HEV) FUEL PUMP |
| 39 | 10A | EPS1 |
| 40 | 20A | ELECTRIC POWER STEERING (EPS2/BSM/ESCL/DTCM) #1 |
| 41 | 10A | ENGINE CONTROL MODULE (ECM) / TRANSMISSION CONTROL MODULE (TCM) / RELAY COIL - FUEL PUMP / ELSD / ECC (HVAC) BLOWER RELAY COIL / BSM #1 / MOD_SLM |
| 42 | 10A | LONG RANGE RADAR FRONT |
| 43 | 20A | RR POWER OUTLET (12V APO) |
| 44 | 20A | (BEV) ADCM |
| 45 | 10A | (BEV) ADCM |
| 46 | 10A | (HEV) PORT_UCI_2/MOD_CVPM |
| 47 | 10A | SW_BANK_LOWER #2 / SW_BANK_LOWER_LT / SW_BANK_LOWER_RT |
| 48 | - | Spare |
| 49 | 30A | FRONT WINDSHIELD DEFROST |
| 50 | 40A | ECC (HVAC) BLOWER |
| 51 | - | Spare |
| 52 | - | Spare |
| 53 | 20A | RADIO (CMCM) |
| 54 | 20A | SLM FEED_RT |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | 20A | CAMERA WASHER |
| 58 | 10A | PORT DIAGNOSTICS |
| 59 | - | Spare |
| 60 |
15A 20A |
(HEV) LTR COOLANT PUMP (B+) / DRIVER MOTOR POWER INVERTER (BEV) PECP-2 (B+) |
| 61 | 5A | MID RANGE RADAR REAR L&R / MID RANGE RADAR FRONT L&R |
| 62 | - | Spare |
| 63 | 10A | STEERING COLUMN CONTROL MODULE (SCCM) |
| 64 | 10A | (BEV) OUTSIDE HEAT EXCHANGE EXPANSION VALCE MODULE (OEXV) / CHILLER EXPANSION VALVE MODULE (CEXV) |
| 65 | 7.5A | HEATED WINDSHIELD NOZZLE |
| 66 | 15A | ACTIVE SWAY BAR SYSTEM (ASBS) ELECTRIC STEERING COLUMN LOCK (ESCL) / SW_TRANSER_CASE |
| 67 | 15A | INSTRUMENT PANEL CLUSTER (IPC) |
| 68 | 20A | TRANSMISSION CONTROL MODULE (TCM) |
| 69 | 10A | MOD_DCSD / HANDSFREE LIFGATE MODULE / UCI + USB PORT / HUMIDITY AND RAIN LIGHT SENSOR (HRLS) / ACTIVE GRILLE SHUTTER (AGS) |
| 70 | 15A | ELECTRIC OIL PUMP (HEV) |
| 71 | - | Spare |
| 72 | 10A | (BEV) MOD_CVPAM / (HEV) MOD_CVADAS |
| 73 | 10A | ADCAM |
| 74 | 10A | (HEV) FUEL TANK ISOLATION VALVE |
| 75 | 25A | (HEV) ENGINE CONTROL MODULE (ECM) / SNSR_GPF_EGT |
| 76 | 20A | (HEV) FUEL INJECTORS / IGNITION COILS / IGNITION COIL CAPACITOR |
| 77 | - | Spare |
| 78 | 50A | PARK BY WIRE (MAIN POWER-HEV) |
| 79 | 30A | REAR DEFROST (EBL) |
| 80 | 40A | BCM FEED 4 |
| 81 | 20A | MOD_ECM (HEV/BEV) |
| 82 | 30A | FRT WIPER FUSE |
| 83 | 50A | BCM FEED 1 |
| 84 | 30A | DRIVE TRAIN CONTROL MODULE (DTCM) |
| 85 | 50A/10A | BSM PUMP |
