Jeep Grand Wagoneer 2026 Fuse Box Info

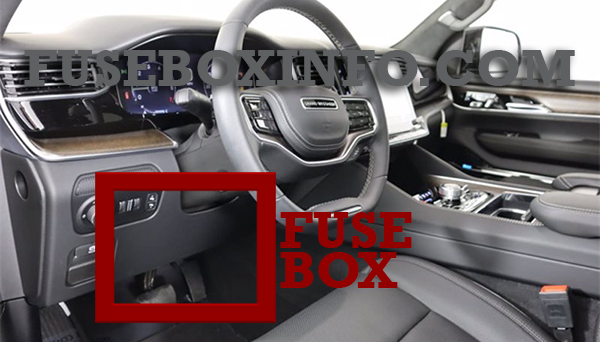

Passenger compartment fuse box location:
The fuse box is located under the driver’s side dash above the gas pedal.

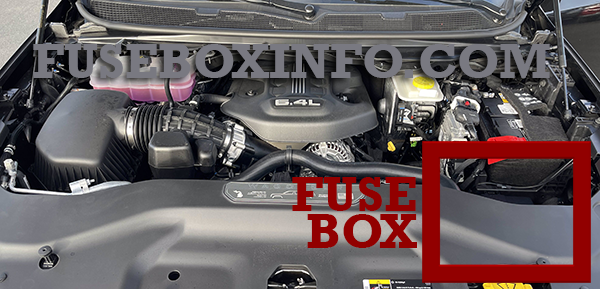

Engine compartment fuse box location:

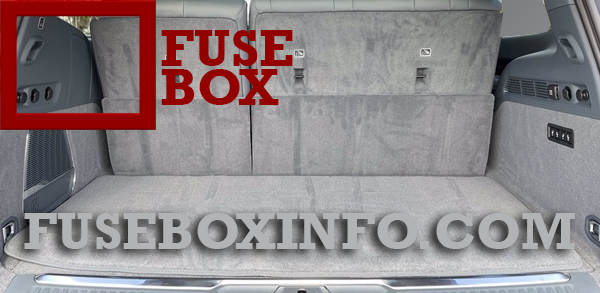

Luggage compartment fuse box location:
The fuse box is located behind a trim cover of the rear driver’s side quarter panel.
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | 25A | MTR Sunshade Sunroof Dual Pane / MTR sunroof single Panel |
| 03 | 15A | MOD Seat Heater Frt (Steering Wheel)* |
| 04 | 10A | Night Vision Module / Driver Monitoring Camera (DMC) |
| 05 | - | Spare |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | 15A | Automatic Gearbox Shifter Module (AGSM) / Steering Column Lock / SW_PHEV_EDRIVER_MODE |
| 09 | - | Spare |
| 10 | 40A | HVAC Blower Motor |
| 11 | - | (PF) PHEV : ELECTRIC AC COMPRESSOR(IOD) / BATTERY CHARGE INDICATOR / CHARGE INDICATOR (CPIM) |
| 12 | 20A | Assy Cigar Lighter |
| 13 | 10A | Assy Mirror Inside Rearview / Digital TV (DTV)* / Sunroof Single Dual Pane / Port UC1 Dual USB RR / Interior Monitoring Camera |
| 14 | - | Spare |
| 15A | - | Spare |
| 15B | - | Spare |
| 16 | 10A | MOD ORC |
| 17 | - | Spare |
| 18 | - | Spare |
| 19 | - | Spare |
| 20 | 10A | Overhead Console Assy (OHC) W/Sunshade / Intrusion Module / In trusion Sensor / Siren / Head Up Display (HUD) / Digital TV (DTV)* |
| 21 | 30A | Trailer Tow Electric Brake - Aftermarket |
| 22 | - | Spare |
| 23 | - | Spare |
| 24 | - | Spare |
| 25 | - | Spare |
| 26 | - | Spare |
| 27 | - | Spare |
| 28 | - | Spare |
| 29 | - | Spare |
| 30 | - | Spare |
| 31 | - | Spare |
| 32 | 15A | MOD ICS Switch Bank / SW Bank Upper / SW EPB / Aux Switch Bank Module (ASBM) |
| 33 | 15A | Transfer case SW / Humidity Rain Light Sensor (HRLS) / Suspension SW* |
| 34 | - | Spare |
| 35 | 10A | IRCAM Heater |
| 36 | - | Spare |
| 37 | - | Spare |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | - | Spare |
| 41A | 10A | MOD Occupant Class / Steering Column Lock |
| 41B | 10A | Spare |
| 42A | 10A | Parktronics System MOD (PTS) / MOD Haptic Lane Feedback / Trail er Tow Module |
| 42B | 10A | MOD HVAC Control / Frt ERC Motor Ctrl / RR ERC Motor Ctrl |
| 43A | - | Spare |
| 43B | - | Spare |
| 44 | 15A | MOD Cluster CCN / MOD SGW (Cybersecurity) |
| 45 | - | Spare |
| 46 | - | Spare |
| 47A | - | Spare |
| 47B | - | Spare |
| 48A | - | Spare |
| 48B | - | Spare |
| 49 | 7.5A | MOD RF HUB / Module Ignition (MD KIN) |
| 50A | 10A | Telematics Box Module (TBM) / MOD Front Passenger Display Module (FPDM) / MOD DCSD* |
| 50B | 10A | Port Diagnostics 1 & 2 |
| 51A | - | Spare |
| 51B | - | Spare |
| 52 | - | Spare |
| 53 | 20A | MOD CMCM (Radio) |
| 54A | - | Spare |
| 54B | - | Spare |
| 55 | - | Spare |
| 56 | - | Spare |
| 57 | - | Spare |
| 58 | - | Spare |
| 59 | - | Spare |
| 60 | - | Spare |
| 61 | - | Spare |
| 62A | - | Spare |
| 62B | - | Spare |
| 63A | 15A | Media HUB #1 Frt / Port UC1 Dual USB Frt / Wireless Charging Pad MOD (WCPM) |
| 63B | 15A | Not Populated |
| 64A | 10A | MOD ORC |
| 64B | 10A | Steering Column Control Module (SCCM) |
| 65 | 5A | MOD SGW (Cybersecurity) |
| 66 | - | Spare |
| CB1 | - | Spare |
| CB2 | - | Spare |
| CB3 | - | Spare |
| CB4 | - | Spare |
| CB5 | - | Spare |
| CB6 | - | Spare |
* If Equipped
Engine compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Crank Batt |
| 02 | 80/100A | EPS |
| 03 | 500A | Starter |
| 04 | 250A | Alternator / IDCM |
| 05 | 80/100A | EPS |
| 06 | - | Aux Battery* |
| 07 | 100A | Rad Fan |
| 08 | - | Spare |
| 09 | 80/200A | Feed to iPDC / ABIM |
| 10 | 150A | Feed to rPDC |
| 11 | 150A | PCR* |
| 12 | 10A | CPV* / BHV* / HTL & LTR BYP VALVE* |
| 13 | 40A | Starter* |
| 14 | 10A | GNMM / VPMS* |
| 15 | 10A | ECM* |
| 16 | 10A | Cluster |
| 17A | 10A | EPS |
| 17B | 10A | Not Populated |
| 18 | 20A | Oil Pump RR* |
| 19 | 30A | BSM Valves #2* |
| 20 | - | Not Populated |
| 21 | - | Not Populated |
| 22 | 30A | Oil Pump Ft* |
| 23A | 10A | ECM / BSM / SLM / HIGM |
| 23B | 10A | Air Suspension / ELSD RR / EPS |
| 24 | 20A | XFR Fuel Pump* |
| 25 | - | Not Populated |
| 26 | 50A | BSM Motor #2* |
| 27 | 30A | Rear Defroster (EBL) |
| 28 | - | Not Populated |
| 29 | - | Not Populated |
| 30 | - | Not Populated |
| 31 | 40A | BCM Feed #3 |
| 32 | - | Not Populated |
| 33 | - | Not Populated |
| 34 | - | Not Populated |
| 35 | - | Not Populated |
| 36 | 50A | BCM Feed #1 |
| 37 | 30A | DTCM |
| 38 | 50A | BCM Feed #2 |
| 39 | - | Not Populated |
| 40 | 5A | Battery Sensor |
| 41 | 20A | CADM MAP* |
| 42 | 30A | PECP-2* |
| 43 | 10A | ECM* |
| 44 | 20A | PECP* / PECP ENABLE* |
| 45 | - | Not Populated |
| 46 | 5A | BATT SNSR* |
| 47 | - | Not Populated |
| 48 | 10A | CVPAM |
| 49 | 30A | Air Suspension Valves |
| 50 | - | Not Populated |
| 51 | - | Not Populated |
| 52 | - | Not Populated |
| 53 | 10A | EAH* |
| 54 | 20A | Headlamp LT |
| 55 | 20A | BCP LOW PMP* / BCP* |
| 56 | - | Not Populated |
| 57 | - | Not Populated |
| 58 | - | Not Populated |
| 59 | 40A | PWR Side Steps |
| 60 | - | Not Populated |
| 61 | - | Air Suspension |
| 62 | - | Not Populated |
| 63 | 20A | Camera Washer Front |
| 64 | - | Not Populated |
| 65 | - | Not Populated |
| 66 | 20A | Horns |
| 67 | 10A | DTCM / ASBS / Switchable Engine Mount / BSM |
| 68 | 20A | Headlamp RT |
| 69 | 15A | LTR Cool PMP* |
| 70 | 20A | IGN Coil / IGN Capacitors / Fuel Inj |
| 71 | - | Not Populated |
| 72 | - | Not Populated |
| 73 | - | Not Populated |
| 74 | - | Not Populated |
| 75 | 30A | FRT Wiper |
| 76 | - | Not Populated |
| 77 | 20A | TCM SBW |
| 78 | 20A | Short Runner Valve / ECM |
| 79 | 15A | Fuel INJ*/ Surge SOLENOID*/ OIL SNSR*/ Air Valve*/ OBD By pass*/ O2 Heaters*/ ELCM*/ FTIV* |
| 80 | 20A | ECM |
| 81 | 40A | BCM Feed #4 |
| 82 | - | Not Populated |
| 83 | 50A | TCM* |
| 84 | - | Not Populated |
| 85 | 10A | PCR* |
| 86 | 50A | BSM Valves |
| 87 | - | Not Populated |
| 88 | 50A | BSM MTR |
| 89 | - | Not Populated |
| 90 | - | Not Populated |
| 91 | - | Not Populated |
| 92 | 20A | Front De-Icer |
| 93 | - | Not Populated |
| 94 | 10/5A | A/C Comp Clutch/ ELEC A/C Comp / ELEC EXPAN Valve/ ELEC Batt Chil Valve/ ELEC EXPAN Module |
| 95 | - | Not Populated |
| 96 | 5A | Elect Cool Heater* |
| 97 | - | Not Populated |
| 98 | - | Not Populated |
| 99 | - | Not Populated |
| 100A | - | Not Populated |
| 100B | - | Not Populated |
| 101 | - | Not Populated |
| 102 | 25A | Fuel PMP MTR 1* |
| 103 | - | Not Populated |
| 104A | 15A | ACT GRILL SHUTTER/ ACT AIR DAM/ COOLANT VALVE LCVM*/ RATVM*/ SWITCHBOX*/ POWER PANEL* |
| 104B | 15A | AHP - HI PMP*/ AHP ENABLE* |
| 105A | - | Not Populated |
| 105B | - | Not Populated |
* If Equipped
Luggage compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 01 | - | Spare |
| 02 | - | Spare |
| 03 | - | Auxiliary Battery Feed* |
| 04 | - | Spare |
| 05 | 150A | Feed from Underhood PDC |
| 06 | - | Spare |
| 07 | - | Spare |
| 08 | - | Spare |
| 09 | - | Spare |
| 10 | - | Spare |
| 11 | - | Spare |
| 12 | - | Spare |
| 13 | - | Spare |
| 14 | 25A | Mtr_Sunshade_Sunroof-Dual_Panel |
| 15A | - | Spare |
| 15B | 10A | Hands-Free Liftgate / Rear Window Switches / MOD HVAC Cntrl Rr |
| 16 | - | Spare |
| 17 | - | Spare |
| 18 | 25A | Power Liftgate Module |
| 19A | - | Spare |
| 19B | 10A | Animation Lighting_RR-Lt |
| 20A | 15A | Central ADAS Decision Module (CADM) |
| 20B | 15A | Spare |
| 21A | 10A | Sunroof-Dual Pane/2nd & 3rd row Seat_Sw-Illumination |
| 21B | 10A | Sunroof-Dual Pane/2nd & 3rd row Seat_Sw-Illumination |
| 22 | - | Spare |
| 23 | 10A | Rr Seat Entertainment_Driver & Pass |
| 24 | - | Spare |
| 25 | 30A | Mod Door MUX Passenger |
| 26 | - | Spare |
| 27 | - | Spare |
| 28 | 30A | MOD Memory / Power Seat (Passenger Frt) |
| 29A | 10A | Animation Lighting_Rr-Rt |
| 29B | 10A | Animation Lighting_Rr-Lt |
| 30 | 30A | MOD Memory / Power Seat (Driver Frt) |
| 31 | - | Spare |
| 32 | - | Spare |
| 33 | - | Spare |
| 34 | 30A | MOD Door MUX Driver |
| 35 | 25A | Trailer Tow Module #2 |
| 36A | 10A | Intelligent Event Base Lighting Module |
| 36B | - | Spare |
| 37 | 25A | Trailer Tow Module #1 |
| 38 | - | Spare |
| 39 | - | Spare |
| 40 | 30A | Mod Audio Amplifier #1A |
| 41 | - | Spare |
| 42A | 10A | RSE_Video_USB_Console_Ft/Port Media Hub_FPDM |
| 42B | - | Spare |
| 43 | - | Spare |
| 44A | 20A | 12 Volt Power Outlet Cargo Area (Ign) |
| 44B | 20A | 12 Volt Power Outlet Cargo Area (Battery) |
| 45 | 20A | MOD CRSM (Heated Seat RR RT) |
| 46 | 30A | Folding Seat Module 3rd Row Feed #1* |
| 47 | - | Spare |
| 48 | - | Spare |
| 49 | - | Spare |
| 50 | 15A | Seat Massage Driver Mod (SSMD) / Seat Massage Passenger Mod (SSMP)* |
| 51 | - | Spare |
| 52 | 20A | MOD CRSM (Heat Seat RR LT)* |
| 53 | 30A | Electronic Limited Slip Differential (ELSD) Rear #1 |
| 54 | - | Spare |
| 55 | 30A | Folding Seat Module_3rd Row Feed #2* |
| 56 | - | Spare |
| 57 | 10A | Mod_HVAC_Control_RR/Mod Occupant Class/CVPAM/Parktronics Mod/Trailer Tow Module |
| 58 | 15A | 3rd Row Additional USB charge (Only LT - RT) / Port Pwr USB Console UBS (CH Only) |
| 59 | 5A | Smart Door Handle Rear RT |
| 60 | 25A | RR HVAC Blower |
| 61 | - | Spare |
| 62 | 20A | Module Seat Heater Frt (Driver)* |
| 63 | 30A | Assy Trailer Tow Receptacle B+ |
| 64 | 10A | MOD SPAAK |
| 65 | - | Spare |
| 66 | 20A | MOD Door MUX Passenger Rear - Smart Motor |
| 67 | 30A | MOD Audio Amplifier #1B |
| 68 | - | Spare |
| 69 | 20A | L2+ Central ADAS Decision Module (CADM) MID* |
| 70 | 10A | Video Routing Module (VRM) / Port Power - USB IP (USB Ch Only) |
| 71 | 5A | NFC Door Handle #1 |
| 72 | - | Spare |
| 73 | - | Spare |
| 74 | - | Spare |
| 75 | 5A | NFC Door Handle #3 |
| 76 | 5A | NFC Door Handle #2 |
| 77 | - | Spare |
| 78 | - | Spare |
| 79 | - | Spare |
| 80 | - | Spare |
| 81 | 20A | Module Seat Heater Frt (PASS)* |
| 82 | 10A | Animation Lighting RR/Animation Lighting Liftgate Taillamp |
| 83 | - | Spare |
| 84 | 15A | Sensor UWB (1-7) |
| 85 | - | Spare |
| 86 | 15A | Lumbar Support Driver - Passenger SW* |
| 87 | - | Spare |
| 88 | 20A | MOD Door MUX Driver Rear - Smart Motor |
* If Equipped
