Honda Odyssey 2027 Fuse Box

Honda Hits: 28

Honda Odyssey 2027 Fuse Box Info

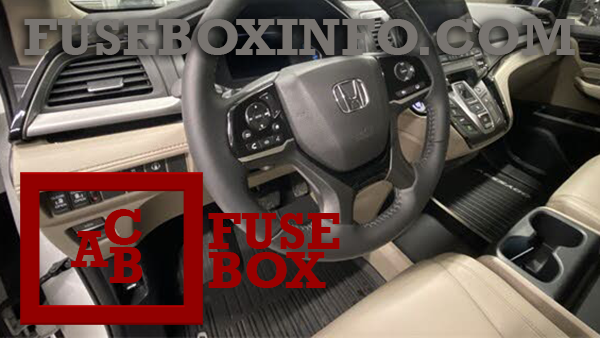

Passenger compartment fuse box location:

The fuse boxes are located under the dashboard on the driver’s side.

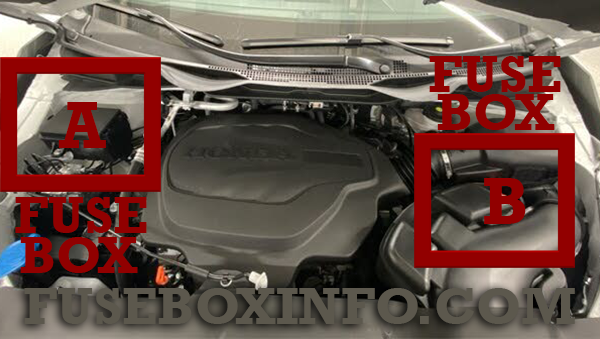

Engine compartment fuse box location:

The fuse box A is located on the passenger’s side. The fuse box B is located next to the battery.

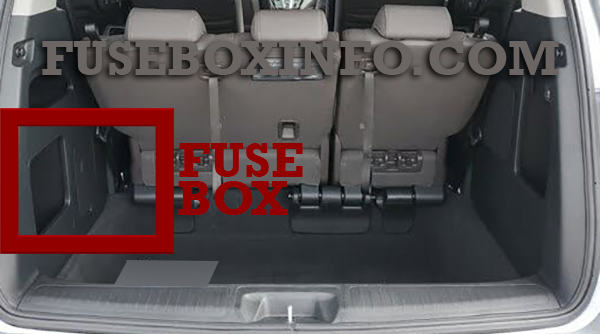

Luggage compartment fuse box location:

The rear fuse box is located at the left side of cargo area.

Fuse Box Diagram | Layout

Passenger compartment fuse box (Fuse Box A):

Fuse/Relay N°	Rating	Functions
1	10A	Meter
2	10A	Starter Motor
3	10A	Option
4	-	-
5	-	-
6	20A	Moonroof
7	-	-
8	10A	Rear Fuse Box
9	15A	IG1 Front
10	10A	Rear Passenger’s Door Lock
11	10A	Driver’s Door Lock
12	10A	Front Passenger’s Door Lock
13	10A	Front Passenger’s Door Unlock
14	10A	Driver’s Door Unlock
15	10A	Rear Wiper
16	10A	SMART
17	20A	Driver’s Power Seat Reclining
18	10A	Heated Steering Wheel*
19	20A	Front Passenger’s Power Seat Reclining
20	10A	SRS
21	20A	Fuel Pump
22	20A	Front Accessory Power Socket
23	10A	Front Fog Lights
24	-	-
25	20A	Driver’s Power Window
26	10A	Rear Passenger’s Door Unlock
27	10A	ACC
28	10A	SRS2
29	10A	Driver’s Power Seat Lumbar Support
30	20A	Front Passenger’s Power Seat Sliding
31	20A	Driver’s Power Seat Sliding
32	10A	Tailgate Lock*
33	-	-
34	15A	ACG
35	10A	DRL
36	10A	A/C
37	15A	Radio
38	20A	Door Lock Main
39	20A	Front Passenger’s Power Window

* Not available on all models

Passenger compartment fuse box (Fuse Box B):

Fuse/Relay N°	Rating	Functions
1	30A 30A 40A 50A 50A 50A 50A 60A	DC/DC2 DC/DC1 EBB Fuse Box Main1 Fuse Box Main2 Rear Fuse Box Main1 Rear Fuse Box Main2 -
2	30A	IG Main1
3	30A	AC Outlet*
4	30A	IG Main2
5	-	-
6	30A	Rear Blower
7	10A	Subwoofer*
8	10A	IMG
9	40A	Rear Defogger
10	-	-
11	15A	Heated Windshield*
12	5A	BMS
13	30A	Audio Amp*
14	10A	Front Passenger’s Power Seat Lumbar Support*
15	10A	USB Charger
16	40A	VSA Motor
17	40A	Front Blower
18	-	-
19	15A	Horn
20	-	-
21	20A	3rd Row Accessory Power Socket*
22	10A	Shift By Wire
23	10A	VBUM
24	40A	VSA

* Not available on all models

Passenger compartment fuse box (Fuse Box C):

Engine compartment fuse box (Fuse box A):

Fuse/Relay N°	Rating	Functions
1	-	-
2	-	-
3	-	-
4	10A	IG1 VB SOL
5	5A	VSA/ABS
6	30A	Wiper
7	15A	IG1 DBW
8	15A	TCU
9	15A	IGP1
10	30A	Sub Fan Motor
11	30A	Rear Driver’s Side Power Window
12	30A	Ignition Coil/Injector
13	10A	TCU 2
14	10A	TCU 3
15	30A	SRM 2
16	30A	ST CUT
17	10A	Shutter Grill
18	10A	Back Up
19	10A	Stop
20	30A	SRM 1
21	30A	Rear Passenger’s Side Power Window
22	30A	ACM
23	15A	Hazard
24	15A	Washer
25	30A	Main Fan Motor
26	5A	STRLD
27	5A	IGPS
28	-	-
29	-	-
30	-	-
31	20A	Injector
32	15A	Ignition Coil
33	5A	PDM

Engine compartment fuse box (Fuse box B):

Luggage compartment fuse box:

Fuse/Relay N°	Rating	Functions
1	10A	Rear Driver’s Side Door Lock
2	20A	Passenger’s Side Power Sliding Door Closer
3	20A	Power Tailgate Closer Motor*
4	20A	Cargo Area’s Accessory Power Socket
5	10A	Fuel Fill Door
6	10A	USB*
7	20A	Driver’s Side Power Sliding Door Closer
8	-	-
9	-	-
10	7.5A	Trailer Hazard Lights*
11	7.5A	Trailer Small Lights*
12	30A	Trailer Main Lights*
13	-	-
14	30A	Passenger’s Side Power Sliding Door Motor
15	-	-
16	40A	Power Tailgate Motor*
17	-	-
18	-	-
19	30A	Driver’s Side Power Sliding Door Motor

* Not available on all models
