Hyundai Santa Fe 2026 Fuse Box Info

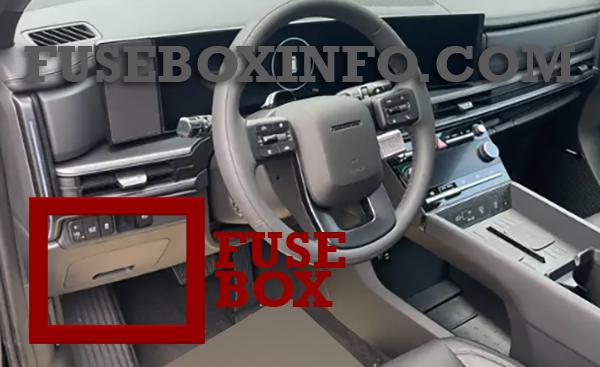

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.

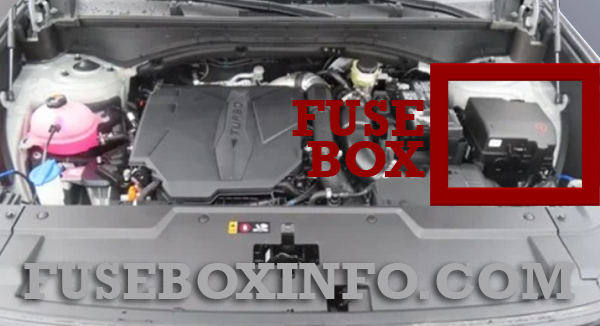

Engine compartment fuse box location:
Fuse Box Diagram | Layout

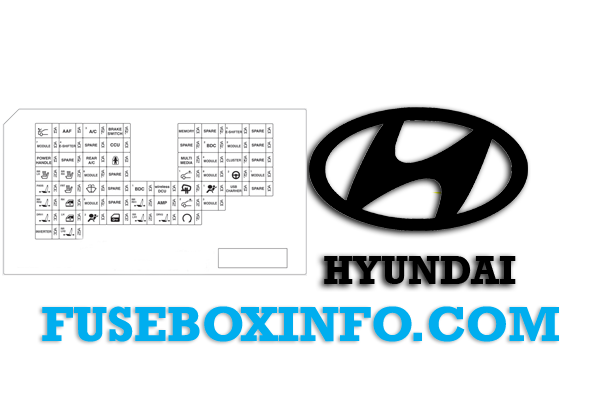

Passenger compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ACTIVE HOOD |
15A | Active Hood Lift Unit |
| AAF | 15A | Active Air Flap (Upper LH/RH, Lower) |
| A/C3 | 7.5A | E/R Junction Block (RLY. 2), [Auto A/C] Front A/C Control Module, Incar Temerature Sensor, Front A/C Control Panel [Manual A/C] Front A/C Control Module, E/R Junction Block (RLY. 11) |
| BRAKE SWITCH | 7.5A | BDC, Stop Lamp Switch |
| MEMORY | 10A | [With ISG] Low DC-DC Converter (AMP) [W/O ISG] Cluster Unit, ADAS Unit (Parking) Rear A/C Control Module, Fingerprint Recognition Unit, BDC, Infortainment Jack Assembly, Front A/C Control Module, Front A/C Control Panel, Head-Up Display, Mood Lamp Unit, Driver/Passenger Mood Lamp, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp, Mood Lamp (Monitor) |
| E-SHIFTER5 | 10A | Electronic ATM Shift Lever |
| MODULE7 | 10A | Steering Tilt & Telescopic Unit, E/R Junction Block (RLY.11), Data Link Connetor, Hazard Switch, Multifunction Switch, ETCS Unit, Rain Sensor, In Cabin Camera (ICC) Unit, Power Tailgate Unit, Driver/Passenger Power Outside Mirror, Driver/Passenger Smart Key Outside Handle, Driver Lumbar Support Unit, Driver/Passenger Power Seat Switch, Driver/Passenger Power Seat Module, Driver Door Module, 2ND Power Seat Control Module LH/RH, 2ND Seat Heater Control Module, Passenger Air Ventilation Seat Control Module |
| E-SHIFTER4 | 10A | Electronic ATM Shift Lever |
| CCU | 10A | CCU |
| BDC2 | 7.5A | BDC |
| MODULE2 | 10A | CCU, DCU, Stop Lamp Switch |
| POWER HANDLE |
15A | Steering Tilt & Telescopic Unit |
| REAR A/C | 10A | Rear A/C Control Module |
| CHILD LOCK | 15A | Child Lock/Unlock Relay |
| MULTIMEDIA | 25A | [With ISG] Low DC-DC Converter, [W/O ISG] CCNC Head Unit |
| MODULE4 | 10A | Driver/Passenger Power Seat Module, AMP, Crash Pad Switch 2ND Power Seat Control Module LH/RH. Head Lamp LH/RH, Overhead Console Assembly, Electro Chromic Mirror, UVC Lamp, Fingerprint Recognition, CCNC Head Unit, Low DC-DC Converter, Front A/C Control Module, Wireless Charger Connector #1/ #2 |
| CLUSTER | 7.5A | Cluster Unit, Head-Up Display |
| S/HEATER (RR LH) | 20A | 2ND Power Seat Control Module LH |
| S/HEATER (RR RH) | 20A | 2ND Seat Heater Control Module, 2ND Seat Heater Control Module |
| MODULE6 | 7.5A | AC Inverter Module, AC Inverter Outlet, Head Lamp LH/RH, 12V Lithium Auxiliary, E/R Junction Block (RLY.5, 9) |
| SUNROOF1 | 20A | Front Sunroof Motor |
| MODULE8 | 10A | Multifunction Switch, Driver Door Module |
| MDPS2 | 7.5A | MDPS Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| MODULE1 | 10A | AMP, ADAS Unit (Parking), BDC, CCU, DCU, CCNC Keyboard, CCNC Head Unit, Low DC-DC Converter, Emergency Call (E-CALL) Switch |
| P/SEAT PASS1 |
30A | Passenger Power Seat Switch, Passenger Power Seat Module |
| S/HEATER (FRT) | 25A | Passenger Power Seat Module, Passenger Air Ventilation Seat Control Modul |
| WASHER | 15A | Multifunction Switch |
| BDC1 | 10A | BDC |
| wireless DCU | 10A | DCU |
| HEATED MIRROR | 7.5A | Driver/Passenger Power Outside Mirror |
| AIR BAG1 | 10A | SRS Control Module |
| USB CHARGER | 15A | Infortainment Jack Assembly, Luggage USB Charger Connector LH/RH, Driver/Passenger USB Charger Connector |
| P/SEAT RR RH2 |
25A | 2ND Power Seat Control Module RH, 2ND Seat Reclining |
| P/WINDOW RH |
30A | Rear Safety Power Window Module RH, Rear Power Window Switch RH, Driver/Passenger Safety Power Window Module, Passenger Power Window Switch |
| MODULE5 | 7.5A | BDC |
| P/SEAT RR RH1 |
25A | 2ND Power Seat Control Module RH |
| AMP | 25A | [With ISG] Low DC-DC Converter [W/O ISG] AMP |
| SUNROOF2 | 20A | Roller Blind Motor |
| MODULE3 | 10A | CDCU, ADAS Unit (Driving/Parking), Crash Pad Switch, Floor Console Switch, Steering Tilt & Telescopic Unit, In Cabin Camera (ICC) Unit, Front View Camera (ADAS), Front Corner Radar LH/RH, Smart Cuuise Control Unit, Active Hood Lift Unit |
| P/SEAT DRV1 | 30A | Driver Power Seat Module, Driver Power Seat Switch |
| P/WINDOW LH |
30A | Rear Safety Power Window Module RH, Rear Power Window Switch RH, Driver/Passenger Safety Power Window Module, Passenger Power Window Switch |
| AIR BAG2 | 10A | SRS Control Module |
| DOOR LOCK | 20A | Door Lock Relay, Door Unlock Relay, Dead Lock Relay |
| P/SEAT RR LH1 |
25A | 2ND Power Seat Control Module LH |
| P/SEAT DRV2 | 10A | [With 7Cell] Driver Lumbar Support Unit [W/O 7Cell] Driver Power Seat Switch |
| START | 7.5A | BDC, PCM, [W/O ISG] E/R Junction Block (RLY. 6) |
| INVERTER | 30A | AC Inverter Module |
| P/SEAT RR LH2 |
25A | 2ND Seat Reclining Folding Actuator LH, 2ND Power Seat |

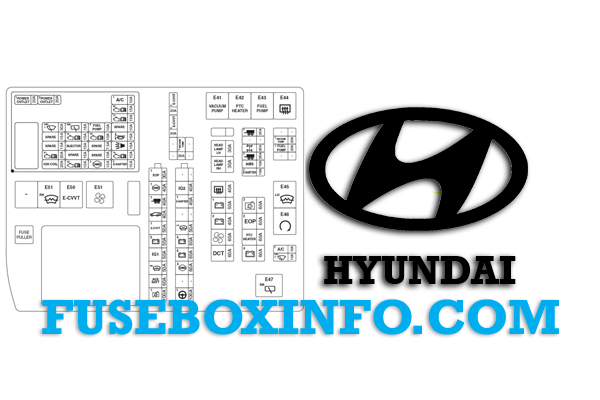

Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| EOP1 | 30A | Electronic Oil Pump |
| ABS1 | 40A | ESP Control Module |
| TRAILER1 | 40A | Trailer Connector |
| POWER TAILGATE |
40A | Power Tailgate Unit |
| E-CVVT1 | 50A | E-CVVT Relay (RLY.10) |
| B+5 | 50A | PDC (Fuse : F29/F38/F48/F49/F53/F56) |
| IG1 | 50A | PCB Block (ACC Relay, IG1 Relay) |
| FRONT DEICER RH |
50A | Front Deicer RH Relay (RLY.9) |
| AUX BATT | 60A | 12V Lithium Auxiliary Battery |
| COOLING FAN1 | 100A | [With Europe & Australia] Cooling Fan Motor |
| IG2 | 30A | Start Relay (RLY.6), PCB Block (IG2 Relay) |
| E-SHIFTER1 | 30A | SCU |
| B+3 | 60A | PDC (Fuse F1/F2/F9/F10/F17/F25/F26/F33/F34/F43/F44/F51/F52/F58/F59) |
| B+6 | 60A | PCB Block (Main Relay, Wiper Relay, Fuse: F18/F19/F22) |
| ABS2 | 60A | ESP Control Module |
| MDPS1 | 80A | MDPS Unit - MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering) |
| REAR HEATED | 40A | Rear Heated Relay (RLY.4) |
| B+1 | 50A | PDC (IPS1, IPS4, IPS5, IPS6, IPS7) |
| B+2 | 40A | PDC (IPS11, IPS12) |
| BLOWER | 60A | Blower Relay (RLY.11) |
| DCT | 60A | TCM |
| COOLING FAN2 | 60A | Cooling Fan Motor |
| EOP | 60A | Electronic Oil Pump |
| PTC HEATER | 60A | PTC Heater Relay (RLY.2) |
| B+4 | 60A | PDC (Fuse : F4/F12/F20/F34/F47/F54/F55 IPS13, Long Term Load Latch Relay (Fuse: F5/F21) |
| HEAD LAMP LH | 30A | Head Lamp LH |
| HEAD LAMP RH | 30A | Head Lamp RH |
| TRAILER3 | 20A | Trailer Controller |
| 4WD | 20A | AWD ECM |
| TRAILER2 | 20A | Trailer Connector |
| AMS | 10A | Battery Sensor |
| E-SHIFTER2 | 10A | SCU |
| VACUUM PUMP1 |
20A | Vacuum Pump1 Relay (RLY.1) |
| FUEL PUMP1 | 20A | Fuel Pump Relay (RLY.3) |
| A/C2 | 10A | Front A/C Control Module, Rear A/C Control Module, Rear Blower Motor |
| WIPER FRT2 | 10A | BDC, PCM, PCB Block (Wiper Front (LOW) Relay) |
| E-CVVT2 | 20A | PCM |
| E-CVVT3 | 20A | PCM |
| VACUUM PUMP2 |
10A | ESP Control Module |
| POWER OUTLET1 |
20A | Luggage Power Outlet |
| POWER OUTLET2 |
20A | Front Power Outlet |
| WIPER FRT1 | 30A | Wiper Front (LOW) Relay, Front Wiper Motor |
| ECU1 | 30A | PCM |
| IGN COIL | 20A | Ignition Coil #1, #2, #3, #4 |
| WIPER RR | 15A | Rear Wiper Motor, E/R Junctiob Block (RLY.7) |
| SENSOR1 | 15A | Oxygen Senor (UP/DOWN) |
| INJECTOR | 15A | Injector #1/#2/#3/#4 (MPI) |
| ECU3 | 10A | PCM |
| FUEL PUMP2 | 10A | E/R Junction Block (RLY.3) |
| SENSOR2 | 10A | A/C Relay, Purge Control Solenoid Valve, Oil Control Valve, Variable Oil Pump Solenoid, Cooling Fan Motor, [G4KP] RCV Control Solenoid Valve [G4KN] Variable Intake Solenoid Valve |
| ABS3 | 10A | ESP Control Module |
| A/C1 | 10A | A/C Relay |
| ECU2 | 15A | PCM |
| TCU1 | 15A | PCM |
| HORN | 15A | Horn Relay |
| B/ALARM HORN |
15A | Burglar Alarm Relay |
| TCU2 | 10A | [DCT] TCM [A/T] Electronic Oil Pump |
| E-SHIFTER3 | 10A | SCU |
