Can-Am Spyder F3 Series 2027 Fuse Box Info

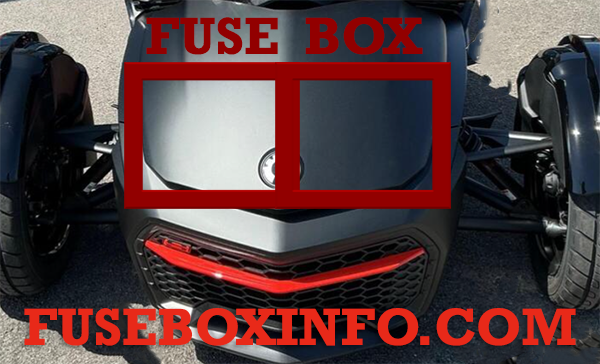

Fuse box location:
The fuses are located behind the front storage compartment.
Fuse Box Diagram | Layout
Left fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1 | 15A | Cluster, DLC |
| F2 | 10A | Wake-up ECM, VCM, MSR and D.E.S.S., SAS, YAS, PRS |
| F3 | 10A | Alternator |
| F4 | 20A | PBM |
| F5 | 5A | ECM |
| F6 | 15A | Injectors, Coils |
| F7 | 10A | Wake-up TCM, DPS, Cluster |
| F8 | 15A | H02S, CAPS, Fuel Pump, EVAP, CSV |
| Relays | ||
| R1 | - | Reverse actuator |
| R2 | - | Pre-starting |
| R3 | - | Main accessories & engine |
| R4 | - | Accessories lights |
| R5 | - | Front heated grip |
| R6 | - | Suspension |
| JCase Fuses | ||
| J1 | 40A | VCM pump |
| J2 | 25A | VCM valves |
| J3 | 40A | DPS |
| J4 | 40A | Main control |
| J5 | - | Not used |
Right fuse box:
| Fuse/Relay N° | Rating | Functions |
| Fuses | ||
| F1 | 15A | Days lights, Parking lamps, Plate lights |
| F2 | 10A | Brake lights, Hazard |
| F3 | 15A | Amplifier |
| F4 | - | GPS |
| F5 | 25A | Load shedding |
| F6 | 10A | Accessories circuits |
| F7 | 10A | Trailer |
| F8 | 15A | Not used |
| Relays | ||
| R1 | - | HI headlamps |
| R2 | - | LO headlamps |
| R3 | - | Cooling fan |
| R4 | - | Load shedding |
| R5 | - | Rear heated grips |
| R6 | - | Main headlamps |
| JCase Fuses | ||
| J1 | 30A | Cooling fan |
| J2 | 40A | Accessories |
| J3 | 20A | TCM solenoids |
| J4 | 30A | LO headlamps |
| J5 | 20A | HI headlamps |
Alternator Circuit Fuse (The fuse holder is located to the LH of the battery):
| Fuse/Relay N° | Rating | Functions |
| 80A | Alternator |
