Hyundai Santa Fe 2005 Fuse Box Info

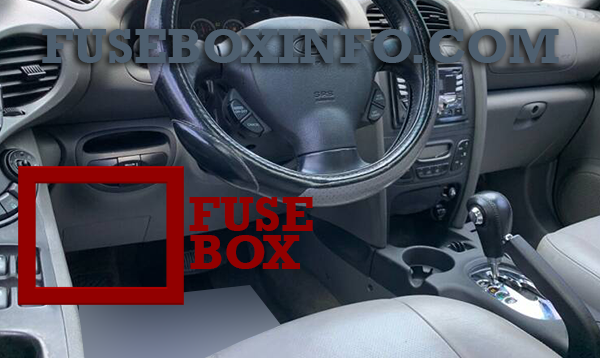

Passenger compartment fuse box location:
The fuse box is located at the left side of the steering column at the bottom of the instrument panel.
Engine compartment fuse box location:
Fuse Box Diagram | Layout
Passenger compartment fuse box:
| Fuse/Relay N° | Rating | Functions |
| 1 | 20A | Cigarette lighter & Power outlet |
| 2 | 10A | Audio, Power outside mirror |
| 3 | 15A | Digital clock, Rear power outlet |
| 4 | 10A | Cruise control |
| 5 | 10A | Head lamp relay |
| 6 | 25A | Seat warmer |
| 7 | 10A | Rear wiper motor control |
| 8 | 10A | Rear window defogger, Power outside mirror |
| 9 | 10A | A/C control, Sunroof controller, Electrical chrome mirror |
| 10 | 10A | (Not used) |
| 11 | 10A | Room lamp, Door warning switch, Door lamp, Manual A/C control, Homelink controller |
| 12 | 15A | Digatal clock, ETACM, Audio, Siren |
| 13 | 20A | AMP speakers |
| 14 | 10A | Stop lamp, Data link connector, Multipurpose check connector |
| 15 | 10A | Hazard lamp |
| 16 | 25A | Power seat, Rear wiper motor control |
| 17 | 20A | Sunroof controller |
| 18 | 30A | Defogger relay |
| 19 | 10A | Instrument cluster, Pre-excitation resistor, ETACM, Auto light sensor, DRL control module, Generator |
| 20 | 15A | SRS control module |
| 21 | 10A | ECM (V6 2.7L) |
| 22 | 10A | Instrument cluster (Air bag IND) |
| 23 | 10A | ABS control module, G-Sensor, Air bledding connector, 4WD control module |
| 24 | 10A | Turn signal lamp |
| 25 | 10A | Back-up lamps, TCM, Vehicle speed secsor, ETS control module, Ignition failure sensor |
| 26 | 20A | Door lock/unlock relay, Key lock/unlock relay |
| 27 | 10A | Tail & parking lamp (LH), Turn signal lamp, License lamp |
| 28 | 10A | Tail & parking lamp (RH), Fog lamp relay, Switch illumination |
| 29 | 15A | ETS control module (V6 3.5L), Fail safety relay |
| 30 | 10A | Radiator fan relay, Condenser fan relay |
| 31 | 20A | Front wiper motor, Wiper relay, Washer motor |
Engine compartment fuse box:
| Fuse/Relay Name | Rating | Functions |
| ALT | 140A | Generator |
| B+ | 50A | Tail lamp relay, Fuse 11~17, Power connector |
| IGN | 50A | Start relay, Ignition switch |
| BLR | 40A | A/C Fuse, Blower relay |
| ABS.1 | 30A | ABS control module, Air bleeding connector |
| ABS.2 | 30A | ABS control module, Air bleeding connector |
| ECU | 40A | Engine contorl relay |
| P/W | 30A | Power window relay, Fuse 26 |
| RAD FAN | 40A | Radiator fan relay |
| C/FAN | 20A | Condenser fan relay |
| FRT FOG | 15A | Fog lamp relay |
| H/LP(LH) | 10A | Left head lamp, Instrument cluster, DRL control module |
| H/LP(RH) | 10A | Right head lamp |
| ECU #1 | 20A | Ignition failure sensor, Oxygen sensor |
| ECU #2 | 20A | Injector |
| ECU #3 | 10A | Check engine ind, ECM, PCM |
| ECU(B+) | 15A | Fuel pump relay, ECM, TCM, Generator, PCM |
| ATM | 20A | ATM contorl relay, 4WD control module |
| HORN | 10A | Horn relay |
| A/C | 10A | A/C relay |
| ST SIG | 10A | PCM, ECM |
